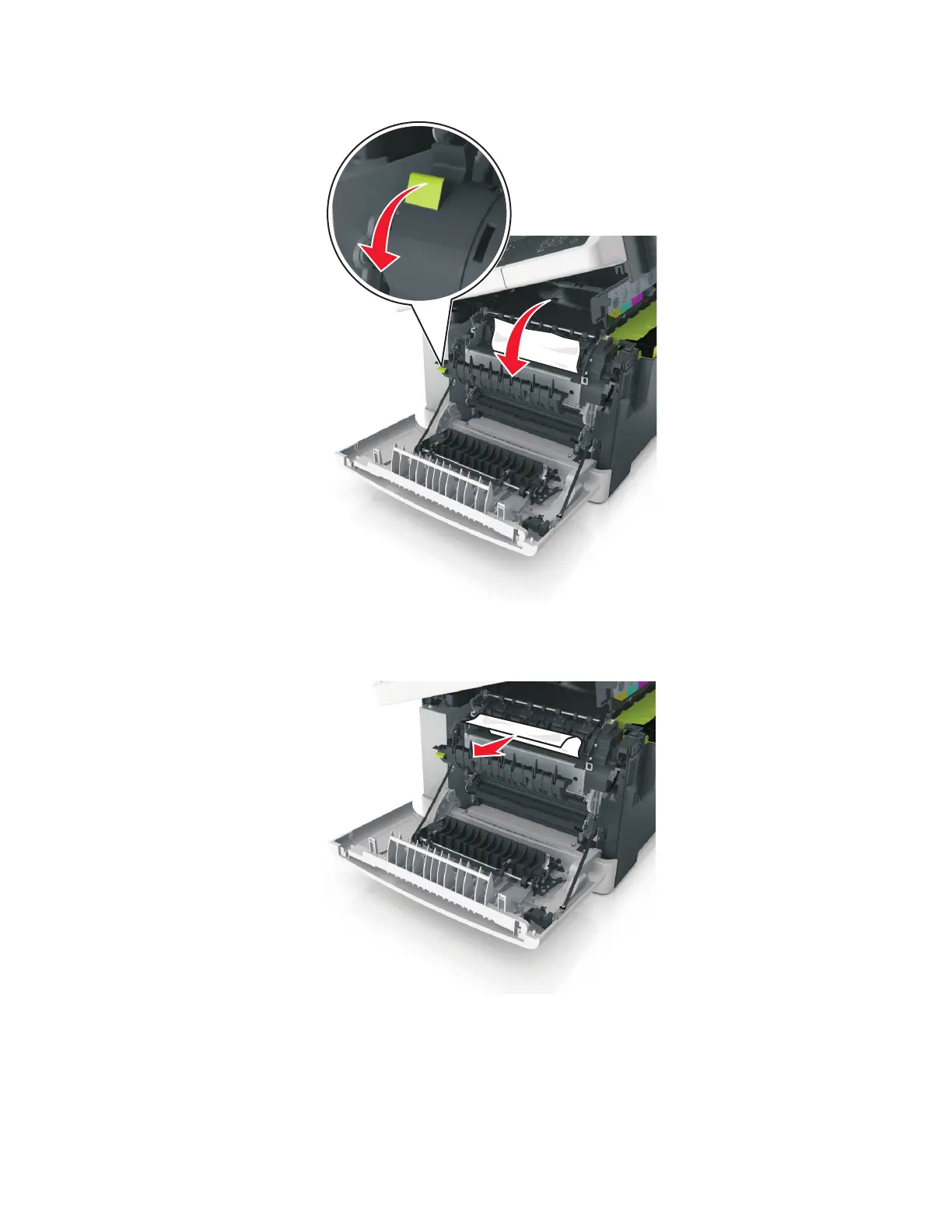

3 Pull the green lever to open the fuser cover.

4 Hold down the fuser cover, and then remove the jammed paper.

Note: Make sure all paper fragments are removed.

7527

Diagnostic information

55
