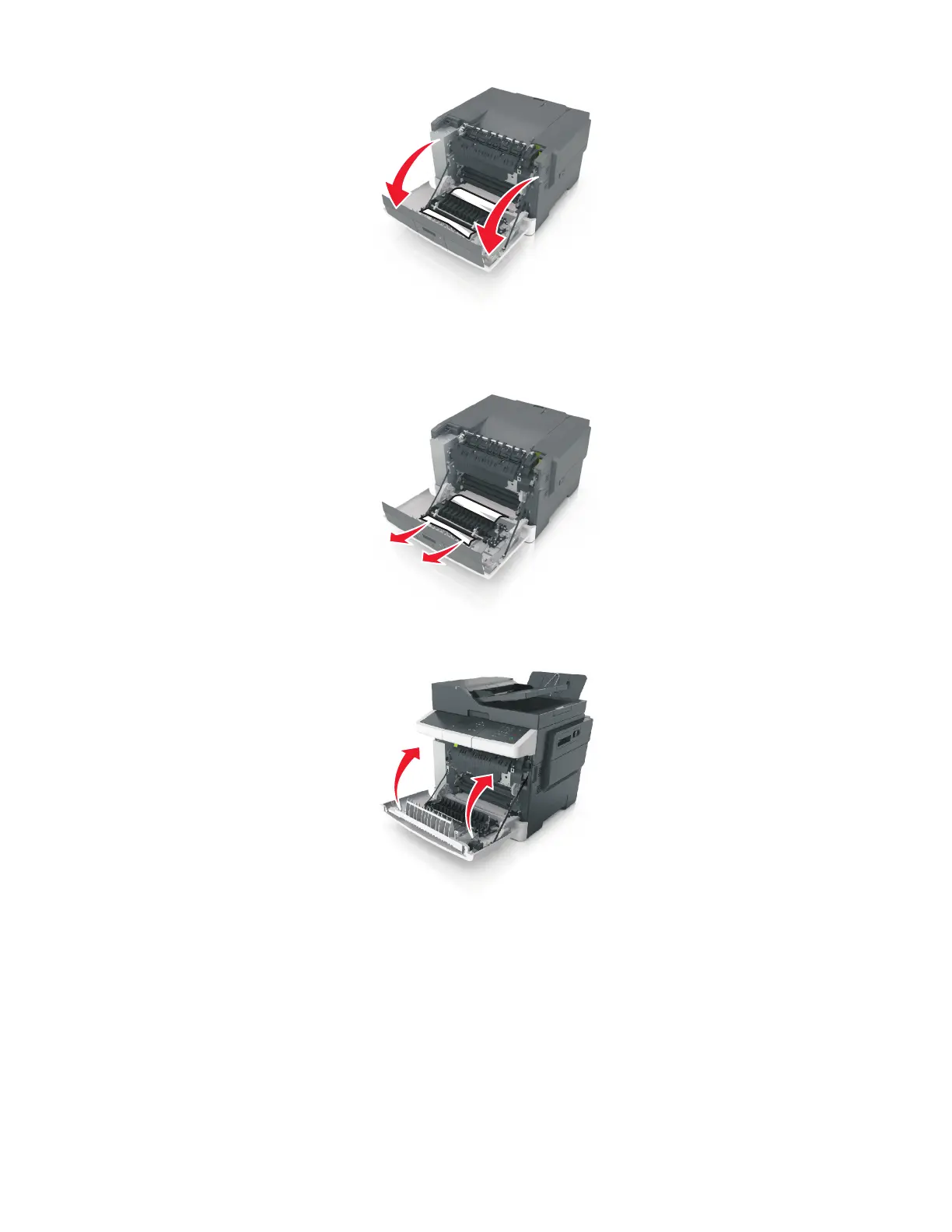

2 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

3 Close the front door.

4 From the printer control panel, touch Done to clear the message and continue printing.

7527

Diagnostic information

64
