Lexmark CX310 Service Manual

Actions Yes No
Step 4
Pull tray 1 out.
Does the display indicate InputS1‑Media Present...?
The sensor is
functioning correctly.
Go to step 5.
Step 5

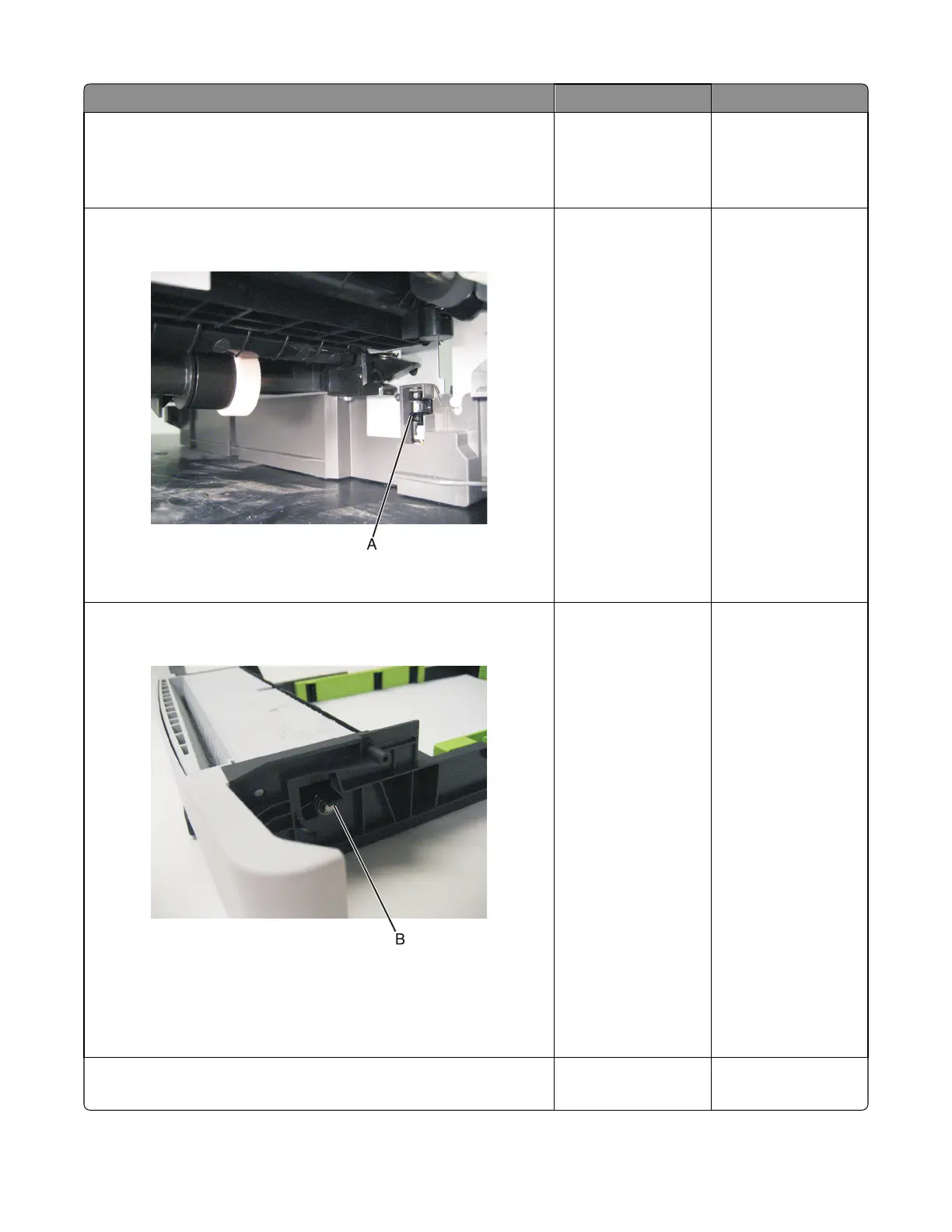

Remove the tray, and inspect the sensor (A).
Is there something obstructing the sensor?
Remove the
obstruction, and
restart the test.
Go to step 6.
Step 6
Inspect the spring‑loaded shaft/flag (B) in the tray.
The flag portion of the shaft intercepts the sensor, except when a sheet
is being staged for duplexing.
Does the shaft rotate freely and return to home position (flag at top of
rotation?)
Go to step 7. Replace the tray with a
new one.
Step 7
is the flag on the shaft broken?
Replace the tray. Go to step 8.
7527
Diagnostic information
66
