OPERATION
1. Lower mower conditioner fully, stop engine, and
remove key from ignition.
2. Open the right side driveshield. Refer to 3.2.1 O pening
Driveshields, page 33.

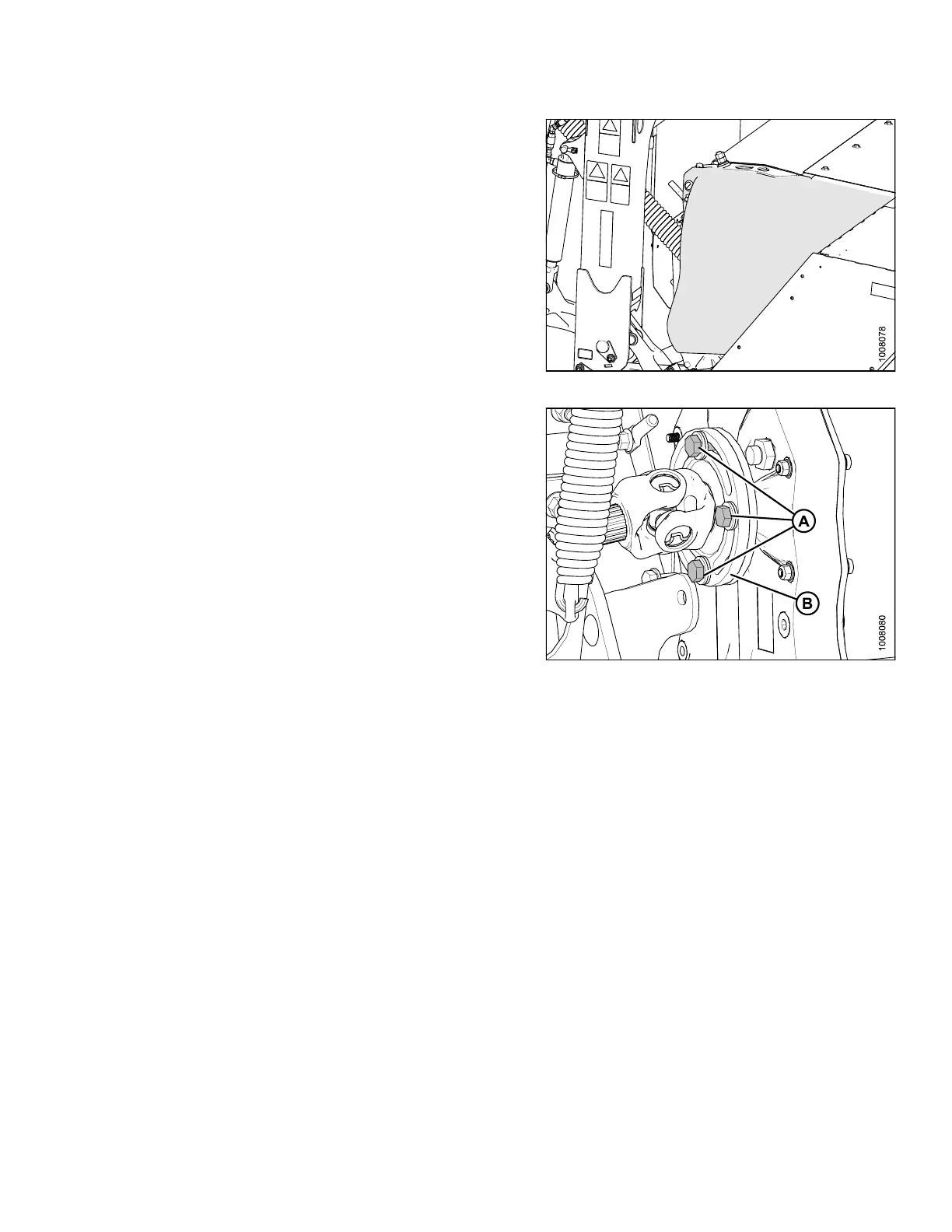

Figure 3.104: Right Side Driveshield
3. Examine the four bolts (A) in slots of yoke plate
(B) on upper roll universal shaft. Bolts should be
approximately centered in slots and should be tight.
The timing is set during assembly at the factory.
If adjustment is req uired, refer to Adjusting Roll
Gap: Steel Rolls, page 86 or Adjusting Roll Gap:
Polyurethane Rolls, page 86.
NOTE:
Only thre e bolts are shown in the illustration.
Figure 3.105: Bolts in Slots of Yoke Plate
