MAINTENANCE AND SERVICING
4.5.6 Inspecting Driveline Taper Pins
Tap e r p in s a r e
located at three places (A) along the hitch drive shaft. Torque each pin to 110 ft·lbf (1 50 N·m) every
25 hours until
it no longer moves, and then check at the beginning of every season.

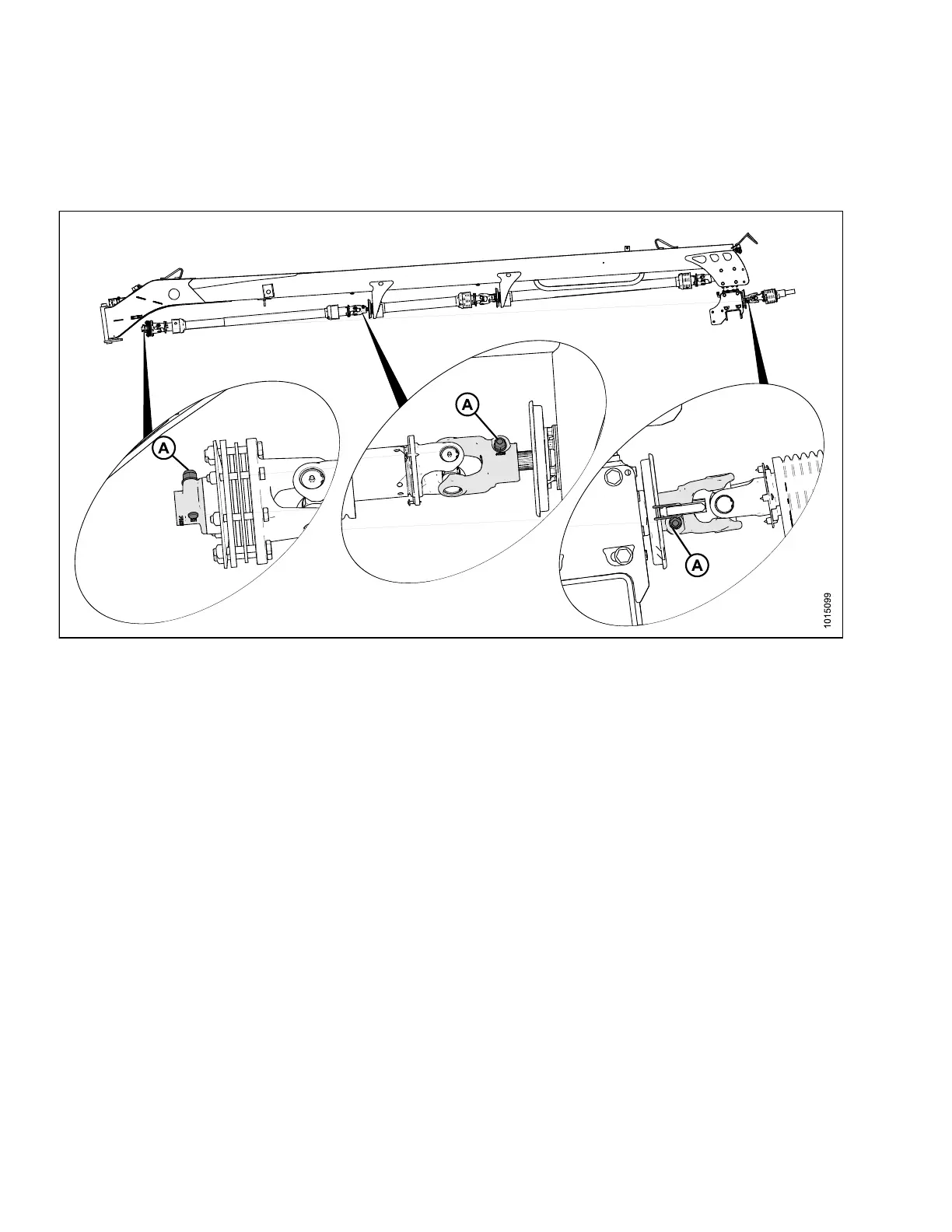

Figure 4
.186: Hitch Taper Pin Locations
147910 200 Revision A
