MacDon R113 - Roll Timing; Checking Roll Timing

OPERATION
1. Lower mower conditioner fully, shut down mower
conditioner and tractor, and remove key.
2. Loosen jam nut (A) on both sides of conditioner.
3. Turn the spring drawbolt (B) clockwise to tighten
spring (C) and increase roll te nsion.
4. Turn th e spring drawb olt (B) counterclockwise to
loosen spring (C) and decrease roll tension.
5. Measure the amount of exposed thread on the spring
drawbolt (B) at each end of the conditioner. The
measurement (D) should be 1/2–9/16 in. (12–15 mm)
for both polyurethane and steel roll conditioners.
IMPORTANT:
Turn each bolt equal amounts. Each turn of the
bolt changes the roll tension by approximately
7.2lbf(32N).
6. Tighten jam nuts (A) on both sides.

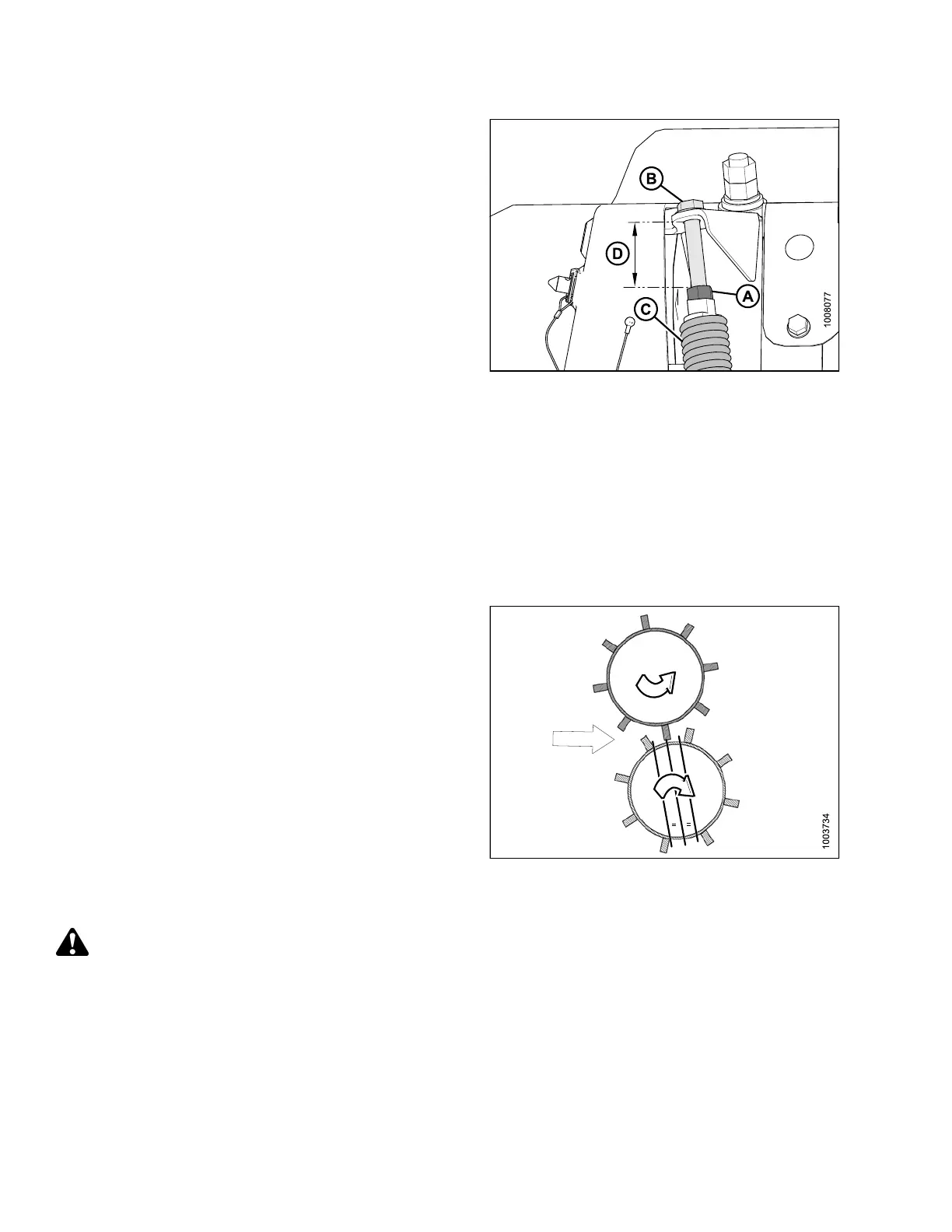

Figure 3.102: Left Side Shown – Right
Side Opposite
3.15.8 Roll Timin
g
For proper conditioning, the rolls must be properly timed with the bar on one roll centered between two bars on the
other roll. The factory setting should be suitable for most crop conditions.
IMPORTANT:
Roll timing on is
critical when the roll gap is decreased
because condit
ioning is affected, and the bars may
contact eac h ot
her.
Figure 3.103
: Properly Timed Rolls
Checking R
oll Timing
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator's seat for any reason.
147910 88 Revision A
