MAINTENANCE AN D SERVICING
8. Remove shield support (A) from outer cone (B).

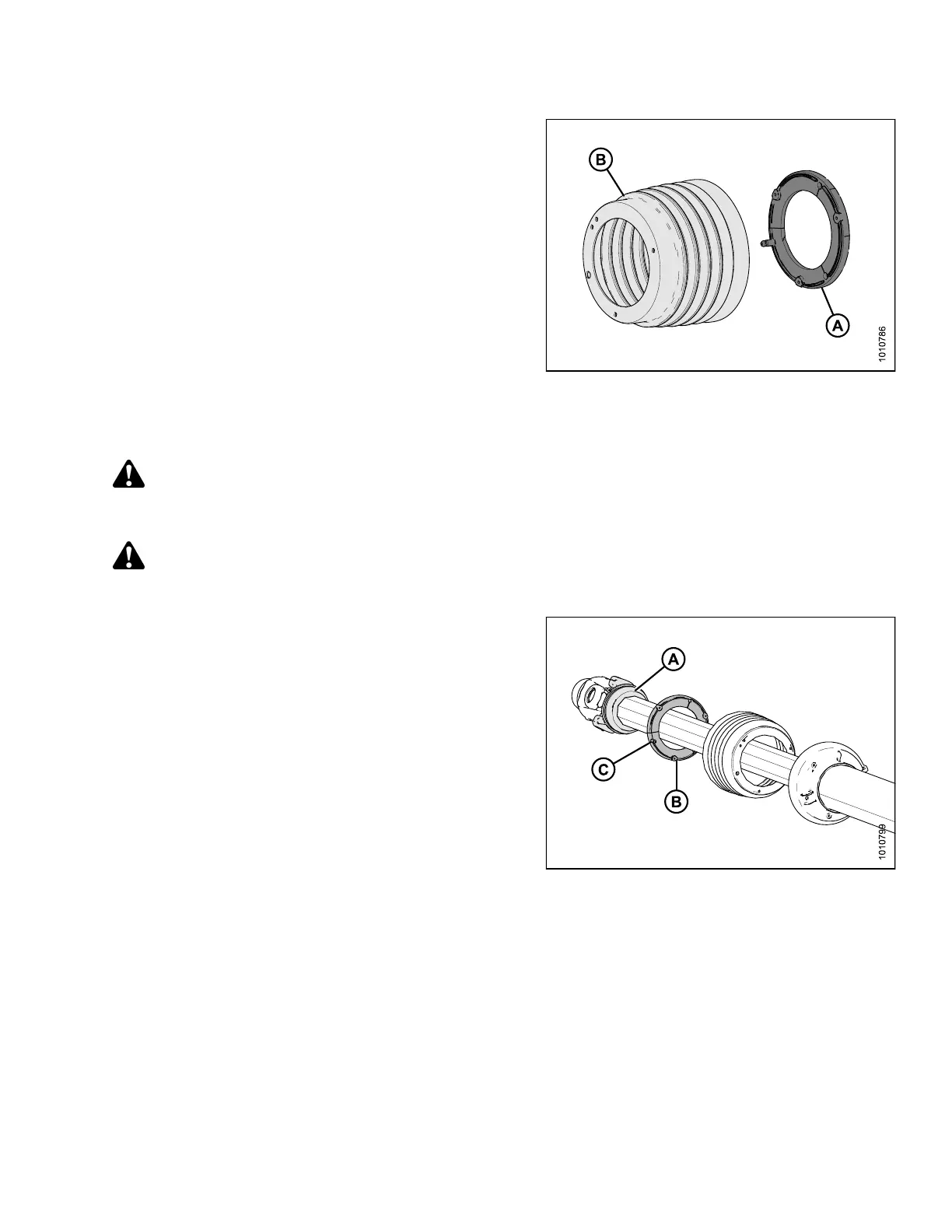

Figure 4.191: Shield Support Removed from
Outer Cone
Installing Driveline Guard
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
WARNING
Do NOT operate the machine without the driveline guards in place and securely fastened.
1. Stop engine, and remove key from ignition.
2. Grease the bearing groove (A) on the inner yokes.
3. Fit shield support (B) to the bearing groove (A), and
ensure that grease fitting (C) faces the drive tube.
Figure 4.
192: Inner Yoke and Shield Support
147910 203 Revision A
