MAINTENANCE AN D SERVICING

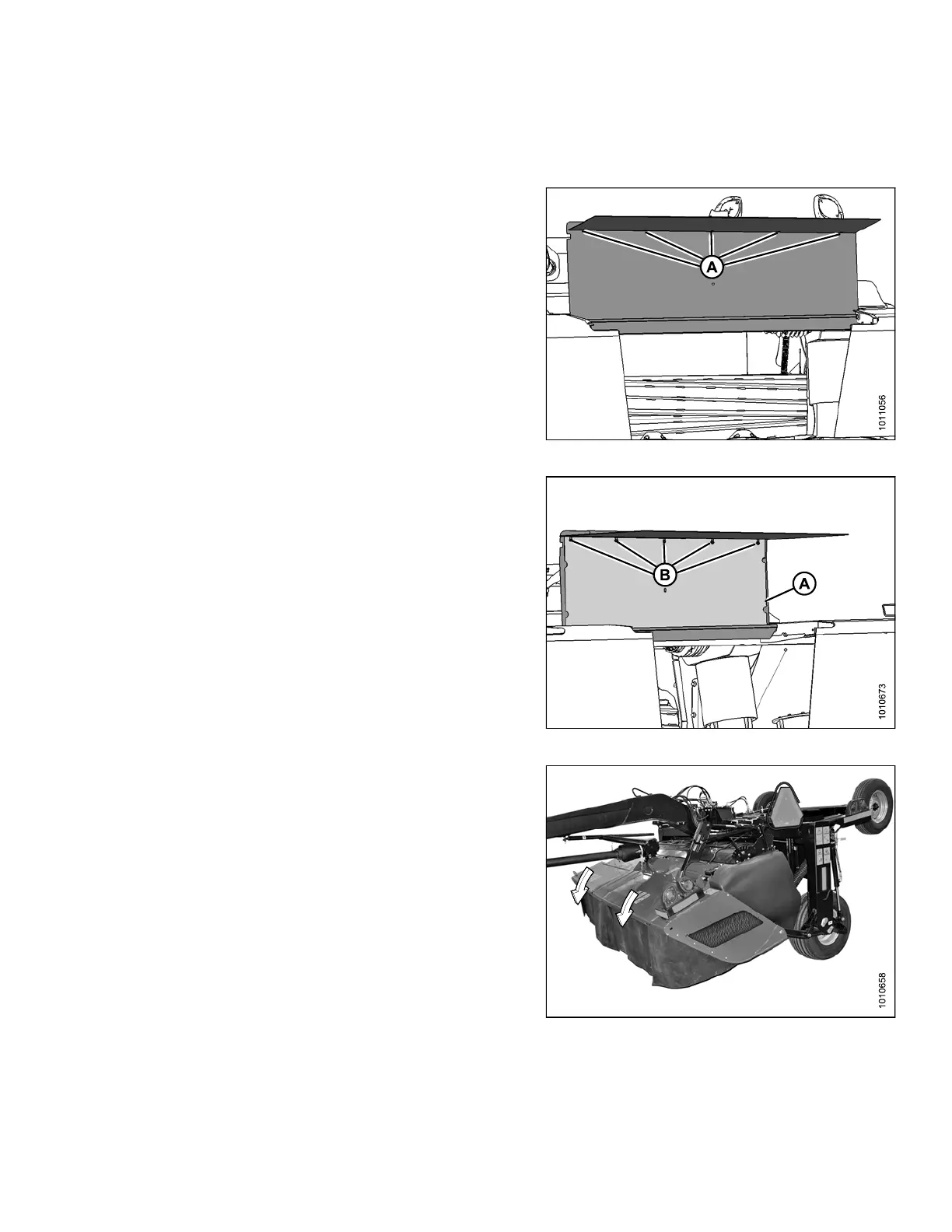

Installing Cutterbar Door Curtains
The procedure for insta lling cutterbar door curtains is the same for both s ides.
1. Insert the cutterbar door bolts into the precut cu rtain
holes (A).
Figure 4.68: Curtain Installed onto Bolts
2. Install shield panel (A).
3. Install fivenuts(B)ontoboltstudsandtorqueto23ft·lb f
(32 N·m).
Figure 4.69: Shield Panel Installed with Nuts
4. Close cutterbar door. Refer to 3.3.3 Closing Cutterbar
Doors, page 38.
Figure 4.70: Cutterbar Doors in Closed Position
147910 153 Revision A
