OPERATION
Lighting: With Road Friendly Transport
™
Option
The mower conditioner is equipped with two bidirectional
amber lights (A) located on the outboard edges of the
carrier frame that function as flashing hazard lights and
turn signals.
The red lights (B) located on the inboard side of the
amber lights function as both tail and brake lights. Refer
to 3.7.4 Connecting Electrical Wiring Harness, page 49
for information about connecting the mower conditioner’s
electrical harness to the tractor.
Amber reflective tape is app lied to va rio us locations on the
front and sides of the mower conditioner, hitch, and carrier
frame. Red reflective tape is applied to the rear of the
mower conditioner.

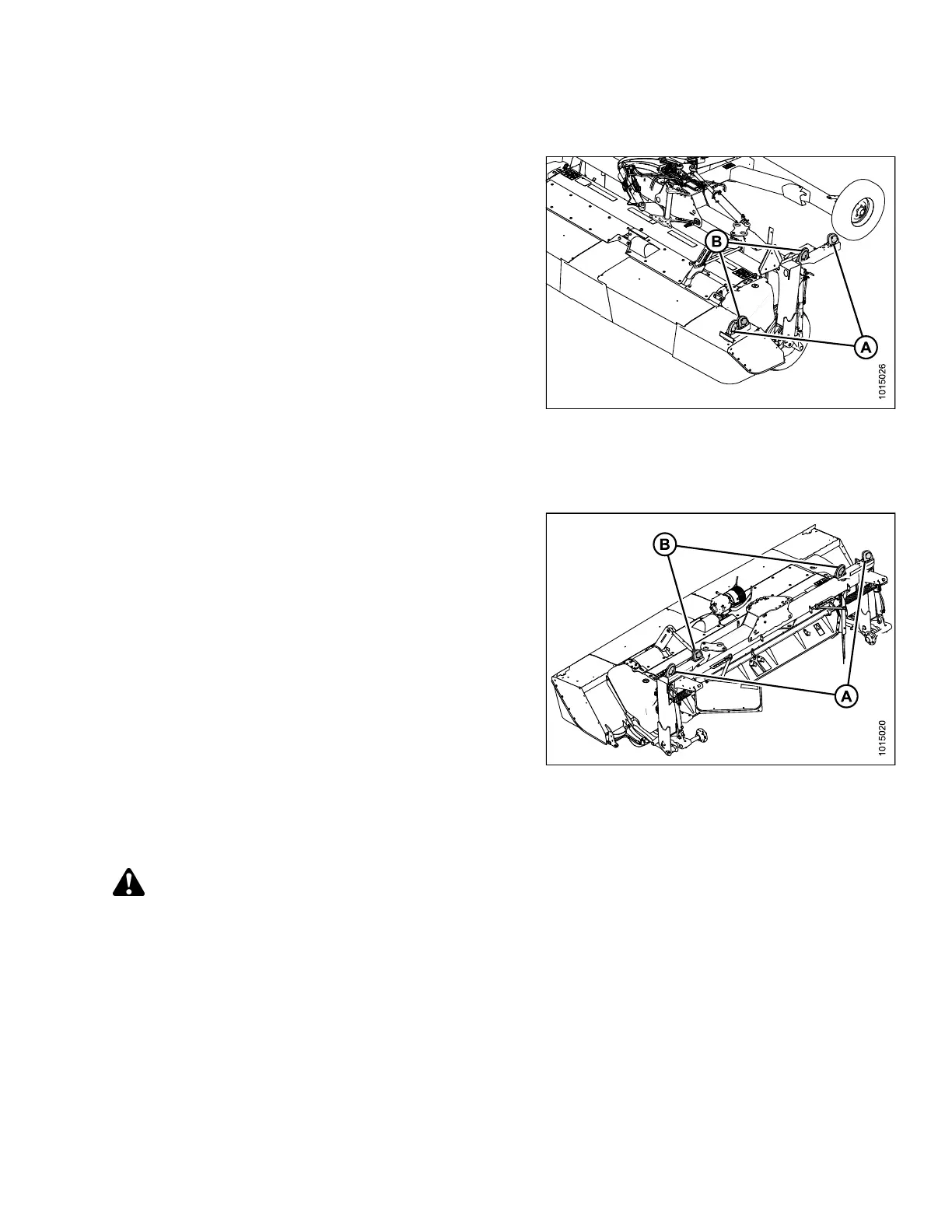

Figure 3.74: Lighting Locations (with Road
Friendly Transport
™
System)
Lighting: Without Road Friendly Transport
™
System Option
The mower conditioner is equipped with two bidirectional
amber lights (A) located on the outboard edges of the
carrier frame that function as flashing hazard lights and
turn signals.
The red lights (B) located on the inboard side of the
amber lights function as both tail and brake lights. Refer
to 3.7.4 Connecting Electrical Wiring Harness, page 49
for information about connecting the mower conditioner’s
electrical harness to the tractor.
Amber reflective tape is app lied to va rio us locations on the
front and sides of the mower conditioner, hitch, and carrier
frame. Red reflective tape is applied to various locations
on the mower conditioner.
Figure 3.75: Lighting Locations
3.14.5 Converting from Transport to Field Mode (without Optional Road
Friendly Transport
™
System)
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Stop engine and remove key from ignition.
2. Connect all hydraulic hoses (refer to 3.7. 3 Connecting
Hydraulics, page 47), and connect electrical
wiring harness .
