OPERATION
1. Loosen the locking handle (A).
2. Slide the adjuster bar (B) along adjuster plate (C) to the
desired deflector position and engage the bar (B) into
a notch in the adjuster plate.
3. Tighten locking handle (A).
4. Repeat for other side.

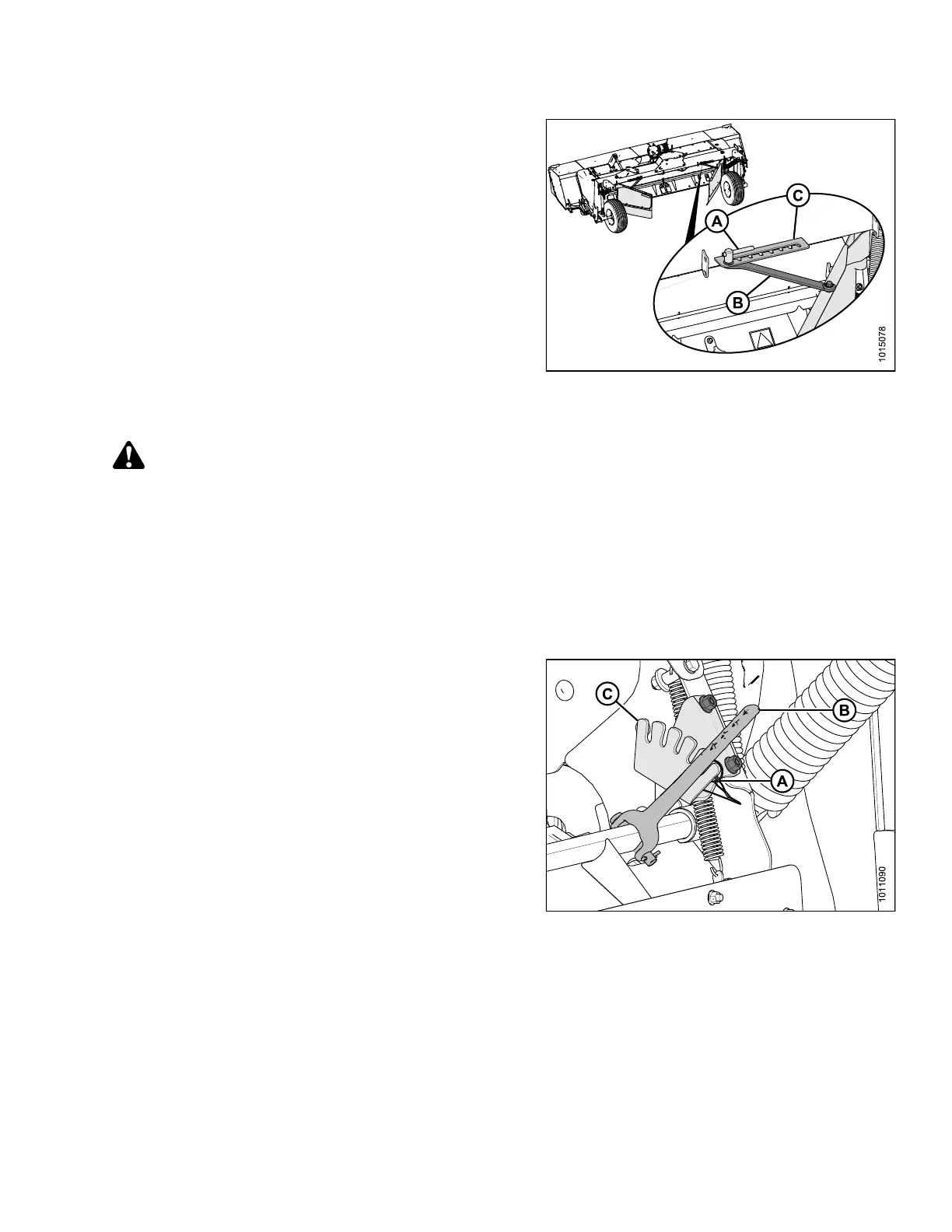

Figure 3.107: Side Deflector and Adjuster Bar
Positioning Rear Baffle: Roll Conditioner
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator's seat for any reason.
The rear baffle primarily determines the height of the windrow, but can also affect the width. It is located immediately
behind and above the conditioning rolls and can be positioned to do the following:
• Direct the crop flo w into the forming shield for narrow a nd moderate width windrows
• Direct crop downward to form a wide swath
• Assist with even material distribution across windrows by using adjustable crop fins mounted to the rear baffle
1. Remove lynch pin (A) securing rear baffle adjustment
lever (B) to bracket (C).
2. Pull rear baffle adjustment lever (B) in inboard direction
to disengage from bracket (C).
3. Position rear baffle adjustment lever (B) as follows:
• Move lever forward to raise baffle
• Move lever backward to lower baffle
4. Release rear baffle adjustment lever (B) so that tab
engages hole in bracket (C).
5. Secure baffle adjustment with lynch pin (A).
Figure 3.108: Right Side of Conditioner
3.15.10 Conditioning: Finger-Type
The finger type conditioner is most commonly used to harvest grass crops. The finger type rotor moves the crop
across the conditioning baffle which strips away the waxy coating from the plants.
The degree to which the crop is conditioned as it passes through the conditioner is controlled by the clearance
between the finger and the internal intensity baffle and by the rotational speed of the fingers (refer to Changing
Finger Rotor S peed, page 92).
147910 91 Revision A
