OPERATION
3.7.4 Connect
ing Electrical Wiring Harness
1. Ensure that Pin #4 (A) in the tractor receptacle is NOT
continuously energized (refer to your tractor operator’s
manual). If necessary, remove the appropriate fuse.
IMPORTAN T:
Older model tractors may have Pin #4 (A) energized
as an accessory circuit; however, pin position (B)
is used to supply power to the mower conditioner’s
brake lights.
2. Connect th
e mower conditioner wiring harness
connector
(C) to the tractor receptacle.
NOTE:
The connector is designed to fit tractors equipped
with a round seven-pin receptacle (SAE J560).

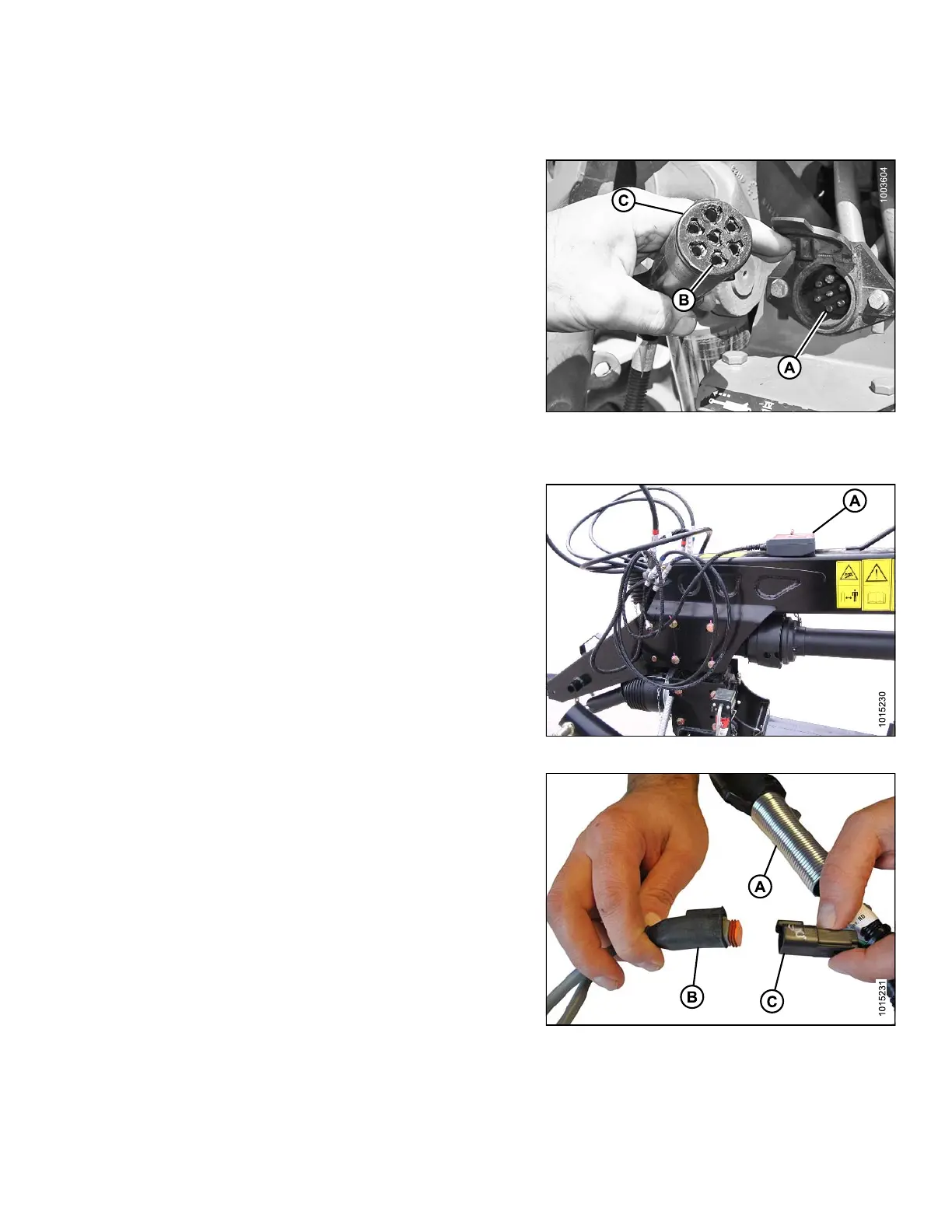

Figure 3.35: Electrical Wiring Harness
and Receptacle
If equipped with
the Road Friendly Transport
™
system:
3. Retrieve Road Fr
iendly Transport
™
system control
box (A) and place
in tractor cab . Route harness
through hose sup
port.
Figure 3.36: Remote Control
4. Locate the co
nnector (C) that branches off the seven
pole trailer
plug (A) and attach it to the remote wiring
harness (B).
Figure 3.37: Transport Harness
147910 49 Revision A
