4.7 Electrical S ystem
4.7.1 Maintaining Electrical System
1. Use electrical tape and cable ties as required to prevent wires from dragging or rubbing.
2. Keep lights clean and replace defective bulbs.
4.7.2 Servicing Amber Hazard/Signal Lights
Replacing Amber Hazard/Signal Bulb
1. Remove two
Phillips screw s from fixture, and remove
the plasti
clens.
2. Replace bu
lb, and reinstall plastic lens and screws.
Bulb—Tra
de #1157.
Figure 4.236: Plastic Lens and S crews
Replacing Amber Ha zard/Signal Light Fixture
1. Cut plastic cable ties (A) securing harness covering
to light.
2. Retrieve connections from inside harness covering
(approximately 6 in. [150 mm] from light) and
disconnect wires (not shown). If necessary,
remove tape.
3. Remove the four nuts (B) securing light to bracket and
remove light. Pull wires through hole in bracket.
4. Feed connectors of new light (not shown) through hole
in bracket, and position light onto bracket.
5. Install four nuts (B) and tighten.
6. Connect wires to connectors in harness, and re-secure
harness covering w it h tap e an d plas tic cable ties (A)
as required.

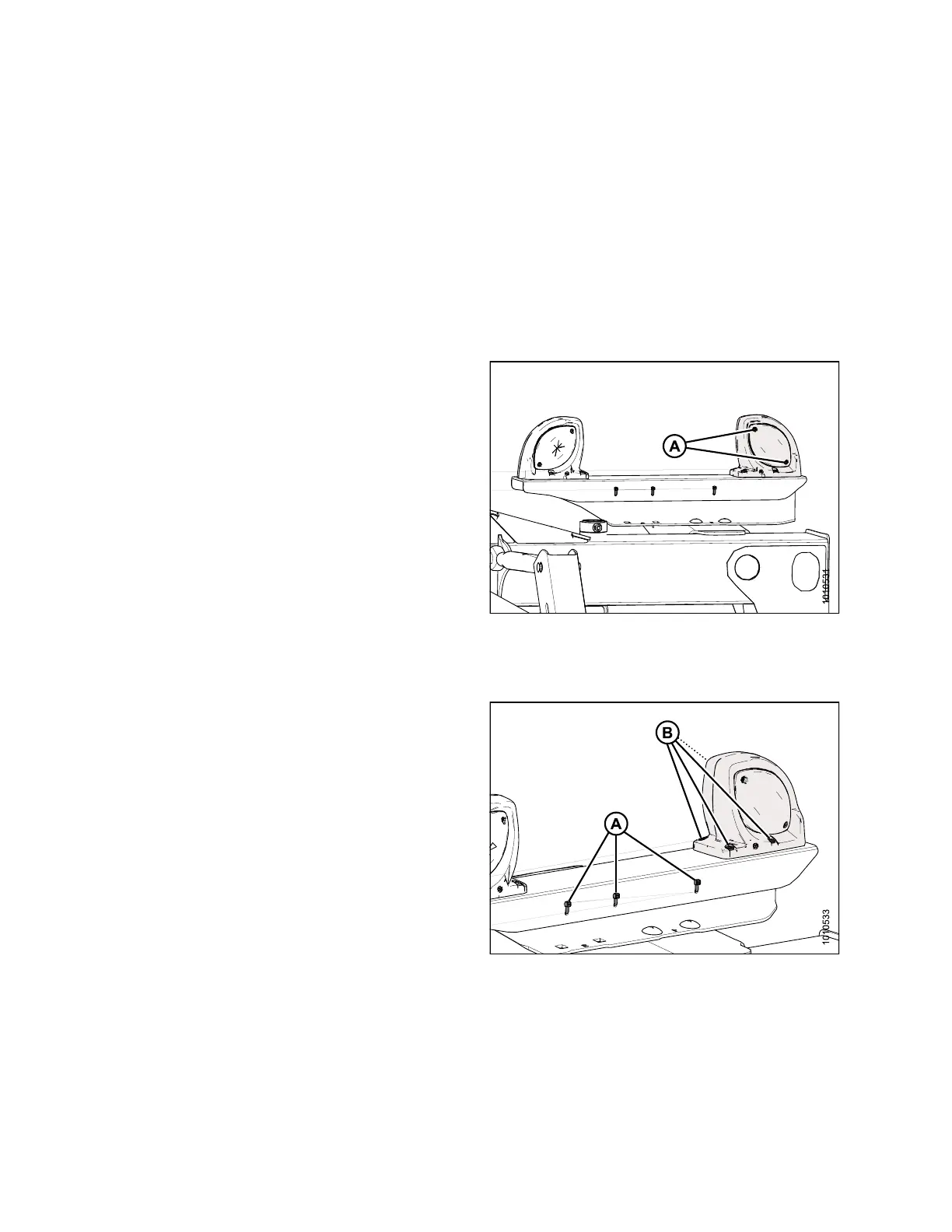

Fi
gure 4.237: Amber Hazard Light and
Mo
unting Bracket
147910
