MAINTENANCE AND SERVICING
Removing Primary Driveline
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
1. Stop engine, and remove key from ignition.
2. Unhook unit from the tractor. Refer to 3.8 D etaching
Mower Conditioner from Tractor, page 51.

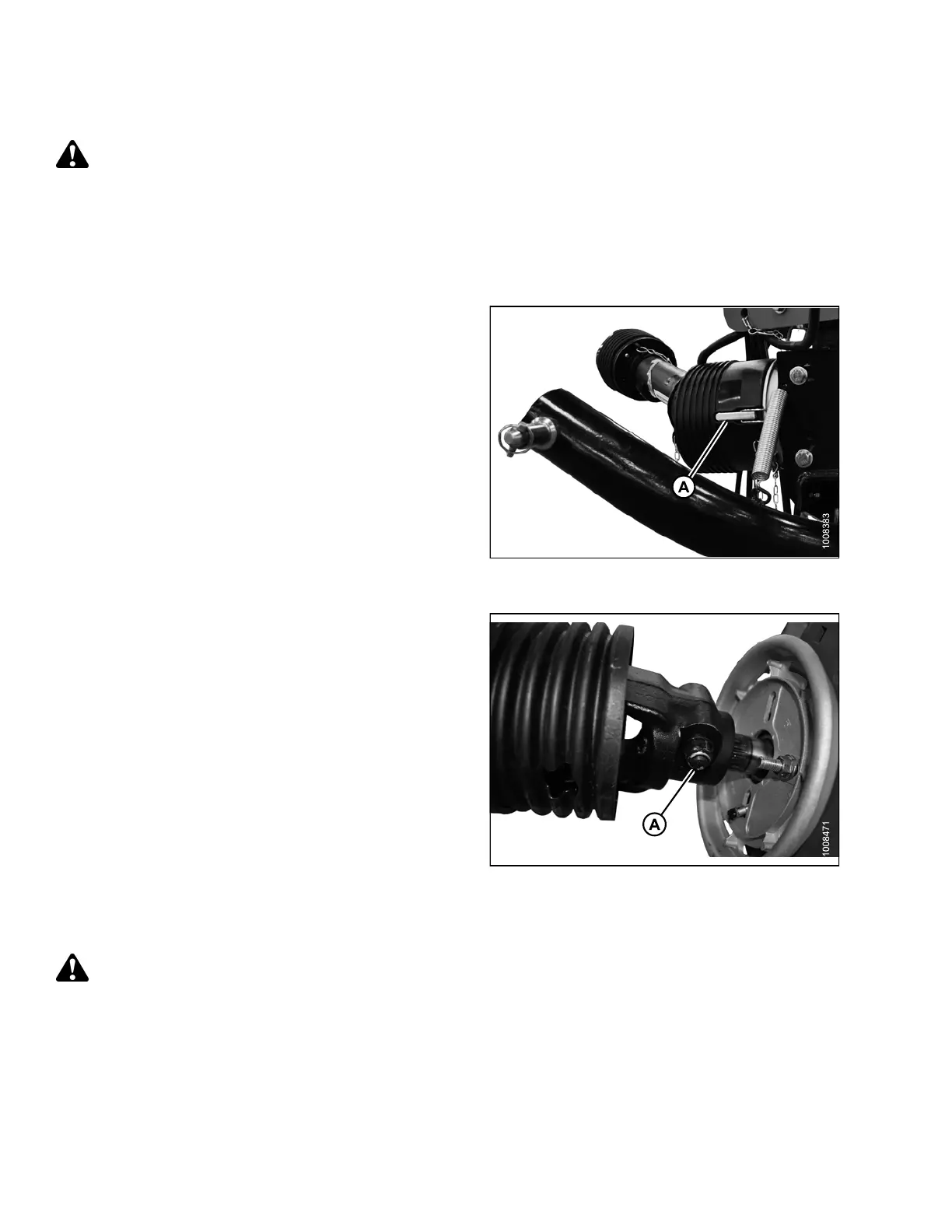

3. Release two lever clamps (A) using a screwdriver or
similar pryin g tool.
Figure 4.147: Driveline Shield Co ne and
Lever Clamp
4. Slide driveline shield cone a way from gearbox.
5. Loosen nut (A) so that taper pin threads are recessed
inside the nut.
6. Tap nut (A) with a hammer to loosen the ta per pin and
release driveline yoke from the shaft.
7. Pull driveline off gearbox.
8. Remove drivelin e gu ard if necess ary, refer to
Removing Driveline Guard, page 201.
Figure 4.148: Bolt Securing Driveline
to Gearbox
Installing Primary Driveline
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
