MAINTENANCE AN D SERVICING
1. Stop engine and remove the key from ignition.
2. Install driveline guard onto dr ive line (if previously
removed). Refer to Ins ta lling Driveline Guard, page
203.
3. Position driveline as shown, and install taper pin so
groove on pin is aligned with groove on shaft.
4. Ensure there is no grease on taper pin threads after
installing into yoke.
5. Torque the taper pin nut (A) to 110 ft·lbf (150 N·m).
Pinmustberecessed3/8–7/16in.(9–11mm)inside
the yoke.
IMPORTAN T:
Check taper pin torque every 25 hours until it
stops moving, then check before every season.

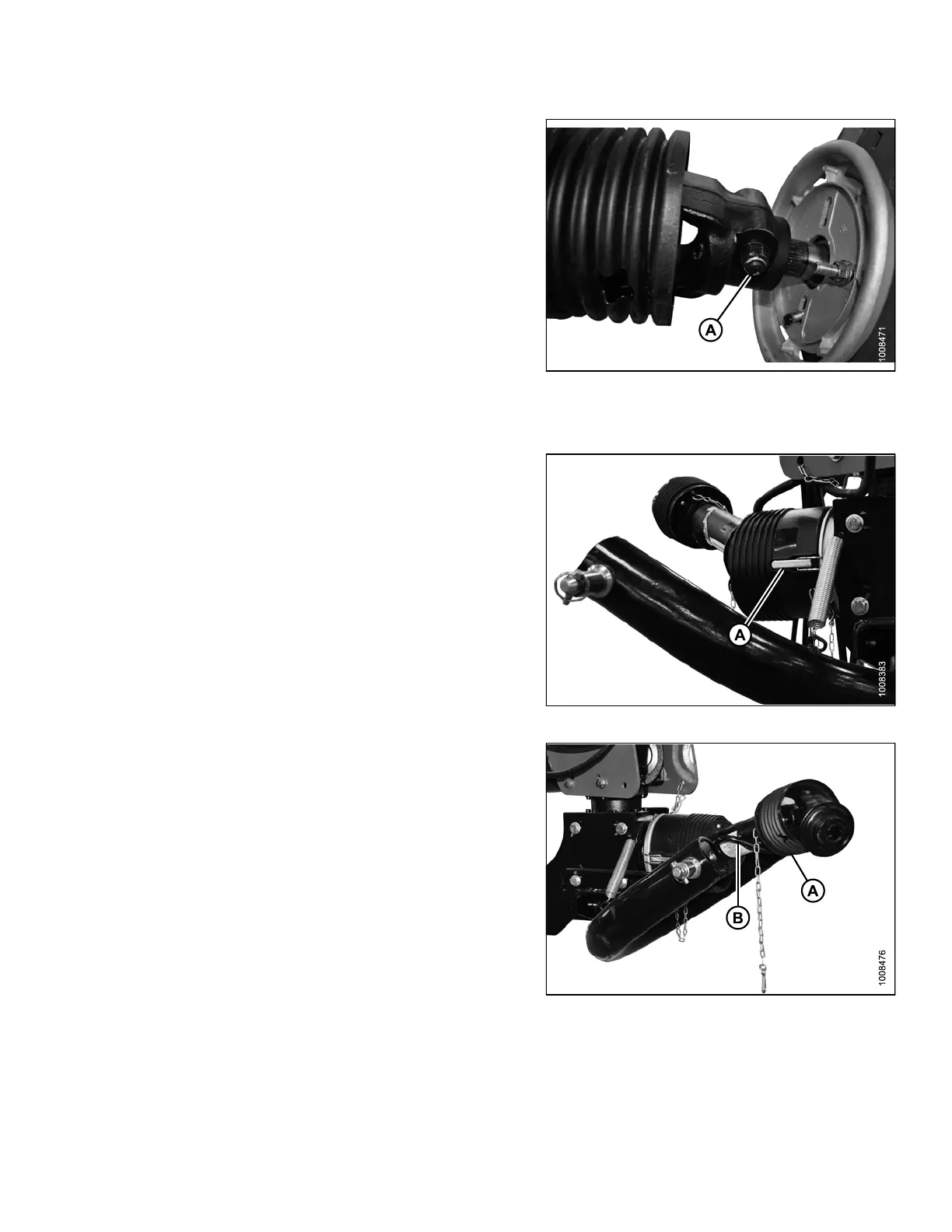

Figure 4.149: Taper Pin Installed in Yoke
6. Slide shield cone towards the gearbox, and fasten the
two lever clamps (A) to the metal plate.
Figure 4.150:
Shield Clip p ed to Driveline
7. Attach the male half (A) of the driveline to the female
half, and position onto storage hook (B) or connect to
tractor power take-off (PTO). To atta ch unit to tra c tor,
refer to 3.7 Attaching Mower Conditioner to the Tractor,
page 43.
Figure 4.15
1: Primary Driveline
147910 185 Revision A
