MAINTENANCE AN D SERVICING

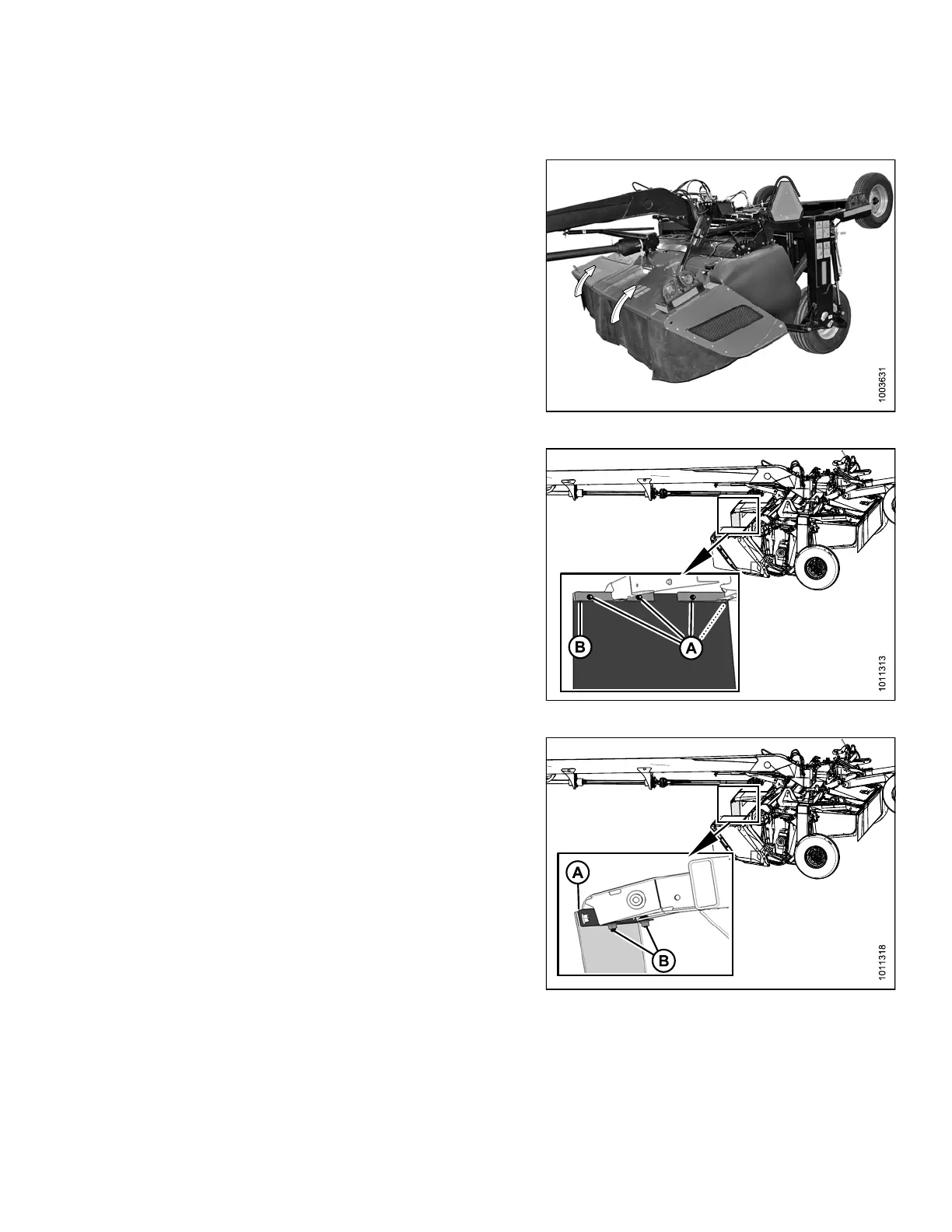

Installing Cutterbar Inboard Curtain
1. Open cutterbar doors. Refer to 3.3.1 Opening
Cutterbar Doors, page 36.
Figure 4.7
4: Cutterbar Doors
2. Install curtain onto weld studs on center shield, install
two curtain brackets (B), and secure with four nuts (A).
Figure 4.75: Inboard Curtain and Brackets
3. Secure two curtain brackets (A) to center shield using
two M10 carriage head bolts (B) and nuts.
4. Torque bolts (A) to 30 ft·lbf ( 40 N·m).
Figure 4.76: Inboard Curtain Attached to
Mower Conditioner
147910 155 Revision A
