MAINTENANCE AN D SERVICING
5. Remove two M16 hex head bolts (A) from each side of
conditioner that secure it to mower.

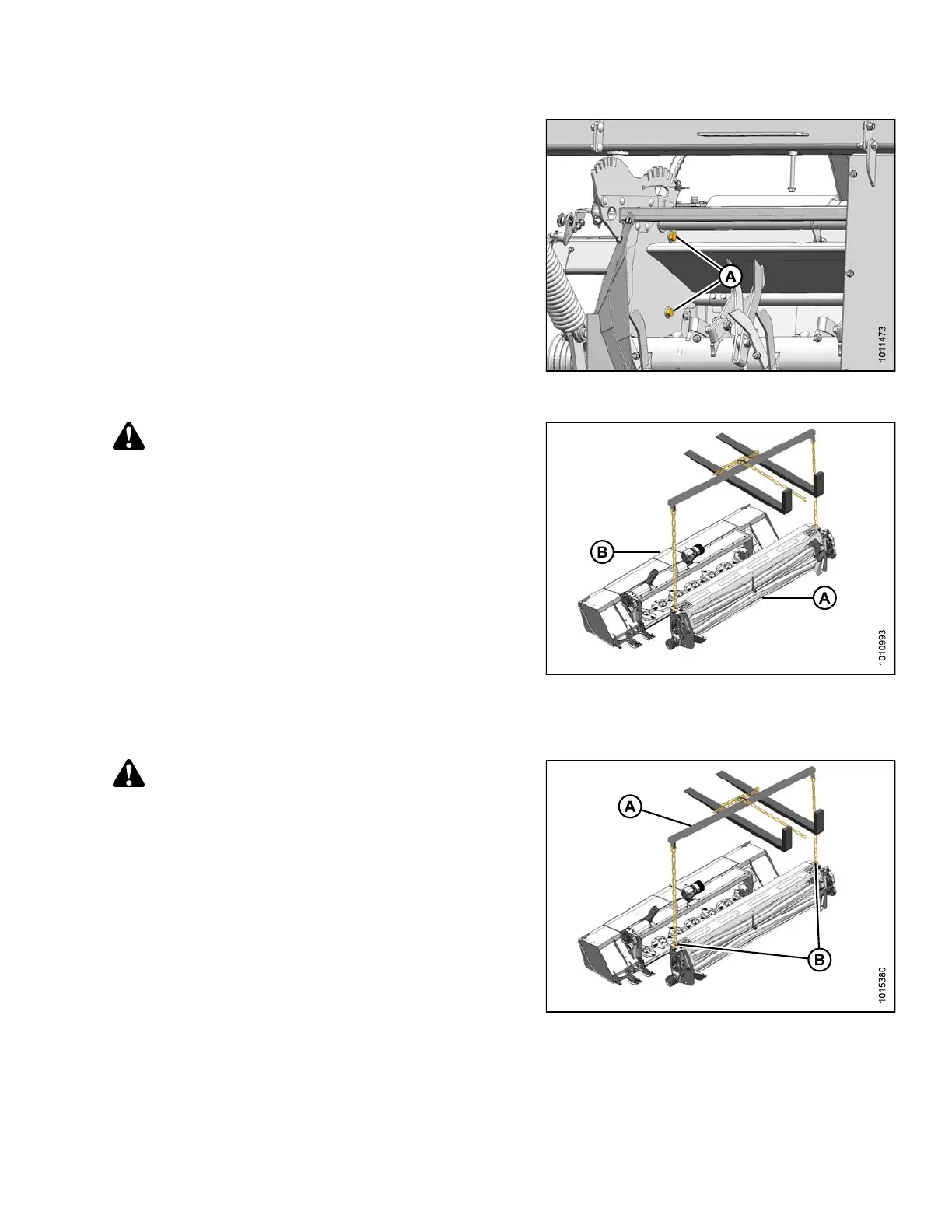

Figure 4.271: Left Side of Conditioner –
Right Side Similar
CAUTION
Stand clear when detaching the conditioner.
6. Lift conditioner (A) off mower (B), and move it away
from work area.
Figure 4.272: Conditioner Lift
Installing the Conditioner
CAUTIO
N
Ensure spreader bar is secured to the forks so that it
cannot slide off the forks or towards the mast while
detaching the conditioner from the mower.
1. Attach a spreader bar (A) to a forklift or equivalent and
attach chains to lugs (B) on conditioner. Use a chain
rated for overhead lifting with a minimum working load
of 2500 lb. (1135 kg).
2. Lift conditioner (A) and position it into mower opening.
Figure 4.273: Conditioner Lift
147910 237 Revision A
