MAINTENANCE AN D SERVICING
11. Slide forward end of hitch driveline (A) away from
swivel gearbox shaft.
NOTE:
There are two hitch d rivelines installed on 16-foot
mower conditioners.
12. Remove driveline guard if necessary. Refer to
Removing Driveline Guard, page 201.

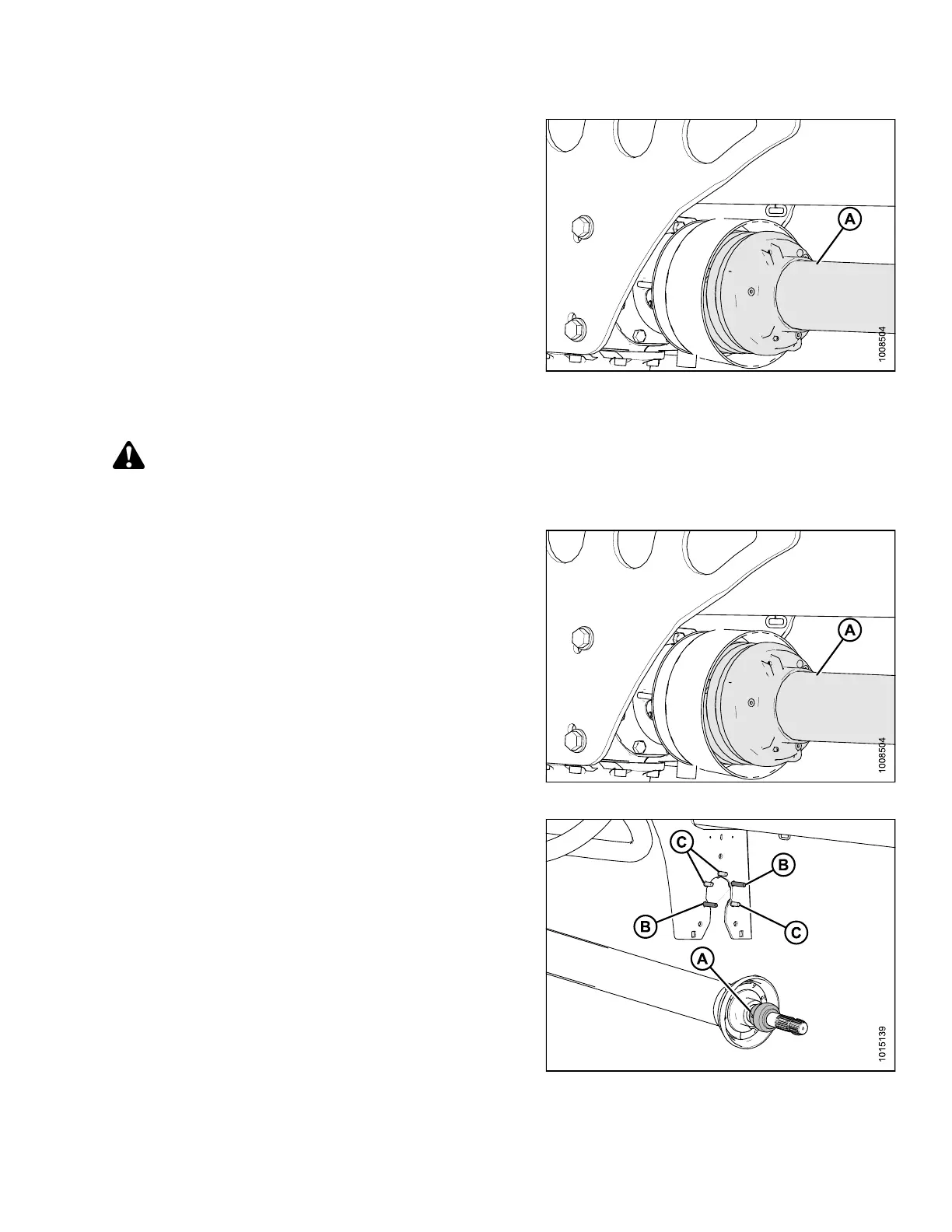

Figure 4.159: Forward End of Hitch
Installing Hitch Driveline
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Install driveline guard onto dr ive line (if previously
removed). Refer to Ins ta lling Driveline Guard, page
203.
2. Position forward end of hitch driveline (A) onto forward
swivel gearbox shaft and push onto shaft.
Figure 4.160: Forward End of Hitch
3. Slide lock collar (A) on shaft.
4. Position shaft end of the driveline onto the hitch
support bracket, and support the driveline to hold it
in place.
NOTE:
Ensure the loc king collar (A) is on the backside
of the support bracket.
5. Install two long bolts (B) and three short bolts (C)
exactly as shown.
Figure 4.161: Long and Short Bolts
147910 189 Revision A
