OPERATION
3.3.3 Closing
Cutterbar Doors
CAUTION
To avoid injury, keep hands and fingers away from
corners of doors when closing.
1. Pull door (A) at top to move to closed position.

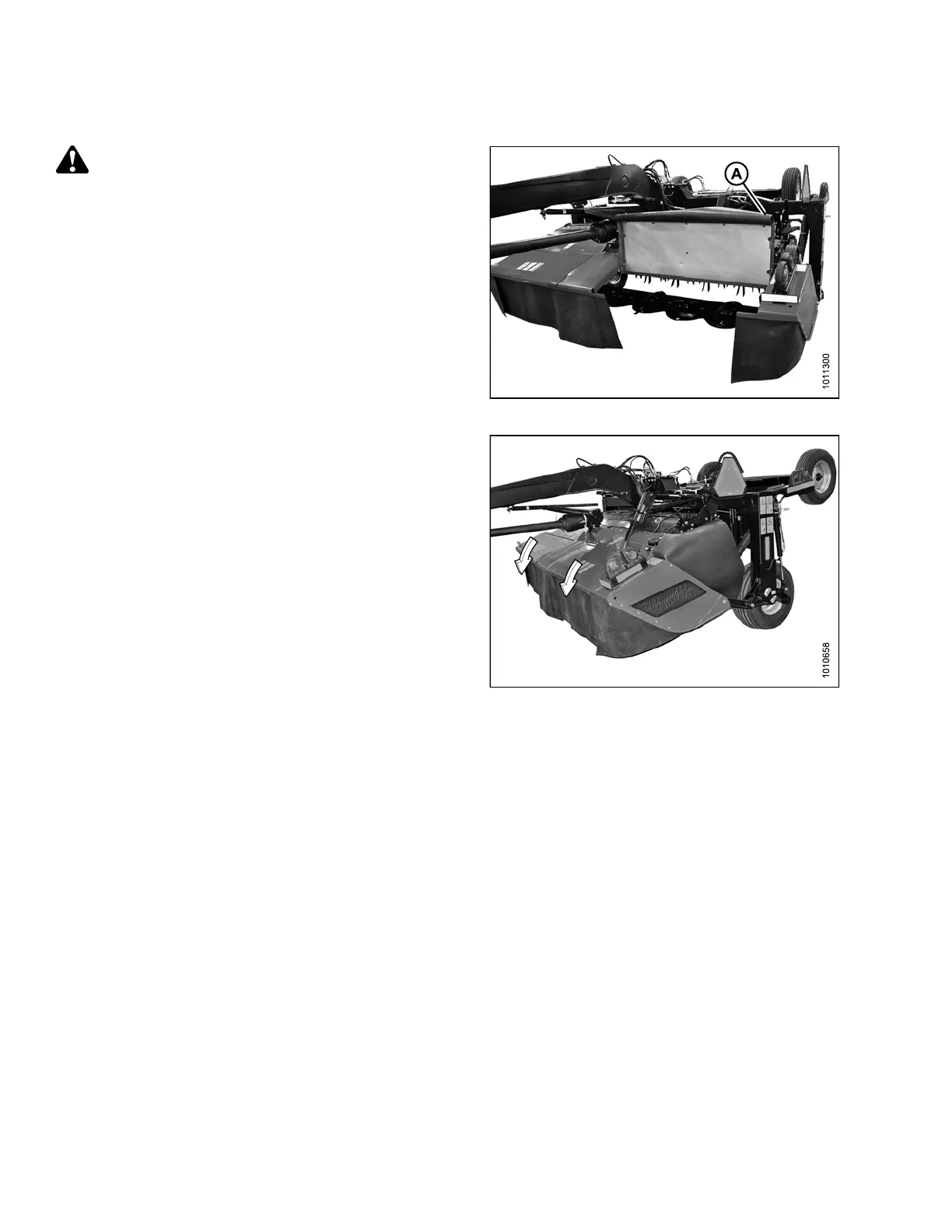

Figure 3.15: LH Cutterbar Door Open
2. Ensure that curtains hang properly and completely
enclose cutterbar area.
Figure 3.16: Cutterbar Doors in Closed Position
