MacDon R113 - Cutterblades; Inspecting Cutterblades

MAINTENANCE AN D SERVICING
NOTE:
Refer to Removing Cutterbar Spind le s, page 134 and Installing Cutterbar Spindles, page 136.
Change 16-foot (10 disc) spindle rotation from three crop-streams (C) to one crop stream (A).
1. Swap disc/spindle four and disc/spindle seven.
Change 16-foot (10 disc) spindle rotation from three crop-streams (C) to two crop streams (B).
1. Swap disc/spindle four and disc/spindle five.
2. Swap disc/spindle six and disc/spindle seven.
Change 16-foot (10 disc) spindle rotation from three crop-streams (C) to four crop streams (D).
1. Swap disc/spindle three and disc/spindle four.
2. Swap disc/spindle five and disc/spindle six.
3. Swap disc/spindle seven and disc/spindle eight.
4.4.5 Cutterblades
Each disc has two cutterblades (A) attached at opposite
ends that are free to rotate horizontally on a specially
designed shoulder bolt.
The b lade (A) has two cutting edg es and can b e flipped
over so that the blade does not need replacing as often.
The blades are NOT repairable and must be replaced if
severely worn or damaged.
IMPORTA
NT:
Always u
se factory replacement parts.

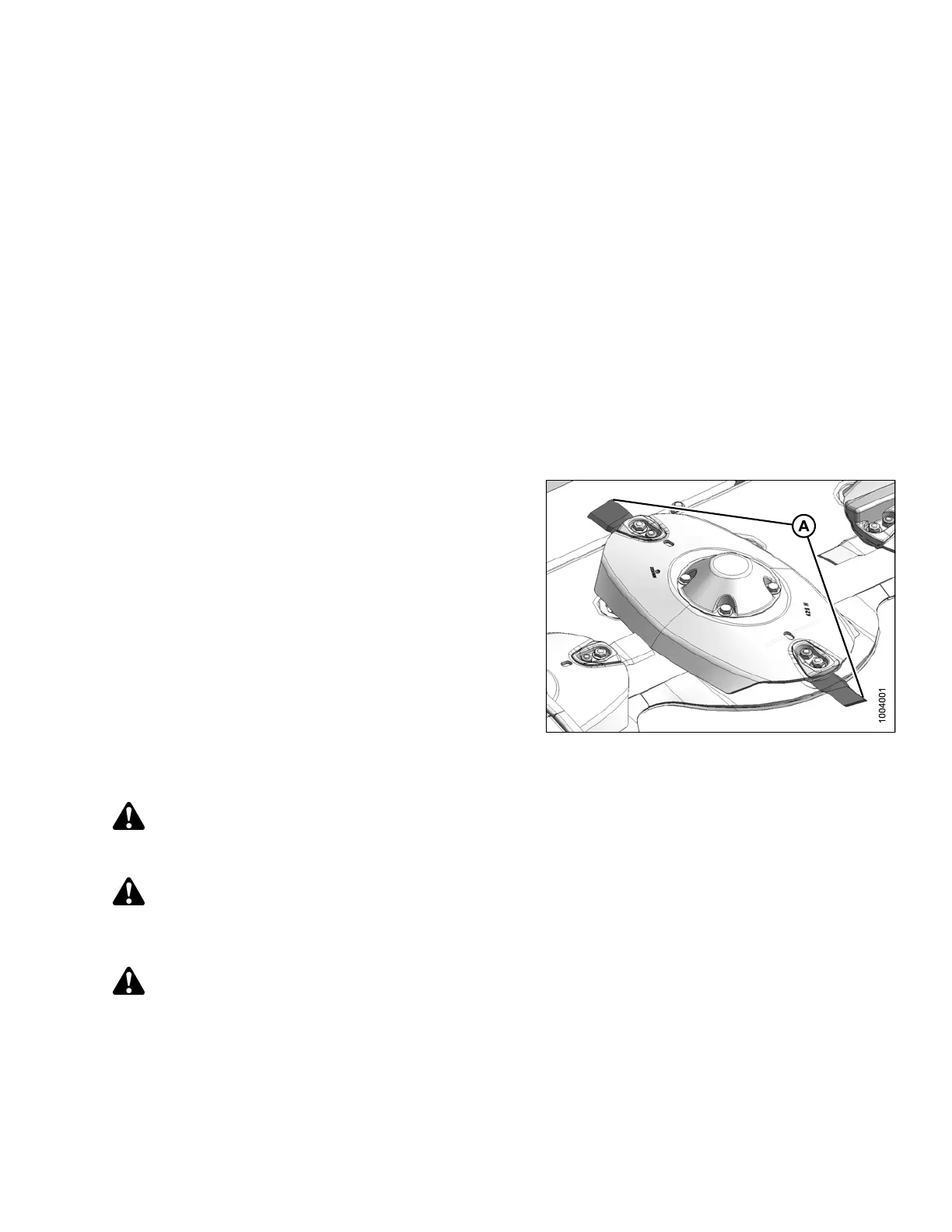

Figure
4.51: Cutterblad es
Inspe
cting Cutterblades
DANGE
R
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
CAUTION
Cutte
r blades have two cutting edges. Exercise caution when working around the blades. Blades are sharp
and ca
n c ause serious injury. Wear gloves when handling blad es.
CAUTION
Damaged blades may damage the cutterbar and result in poor cutting performance. Replace damaged
blades at earliest possible opportunity.
147910 145 Revision A
