3.7 Attaching Mower Conditioner to the Tractor
Depending on tractor configuration, refer to the applicable attaching procedure:
• 3.7.1 Attaching with Drawbar Hitch, page 43
• 3.7.2 Attaching with Two-Point Hitch, page 45
3.7.1 Attaching with Drawbar Hitch
CAUTION
Shut off tractor, engage parking brake, and remove key before working around hitch.
1. Remove lynch pin (A) from clevis pin (B), and remov e
clevis pin from mower conditioner hitch.

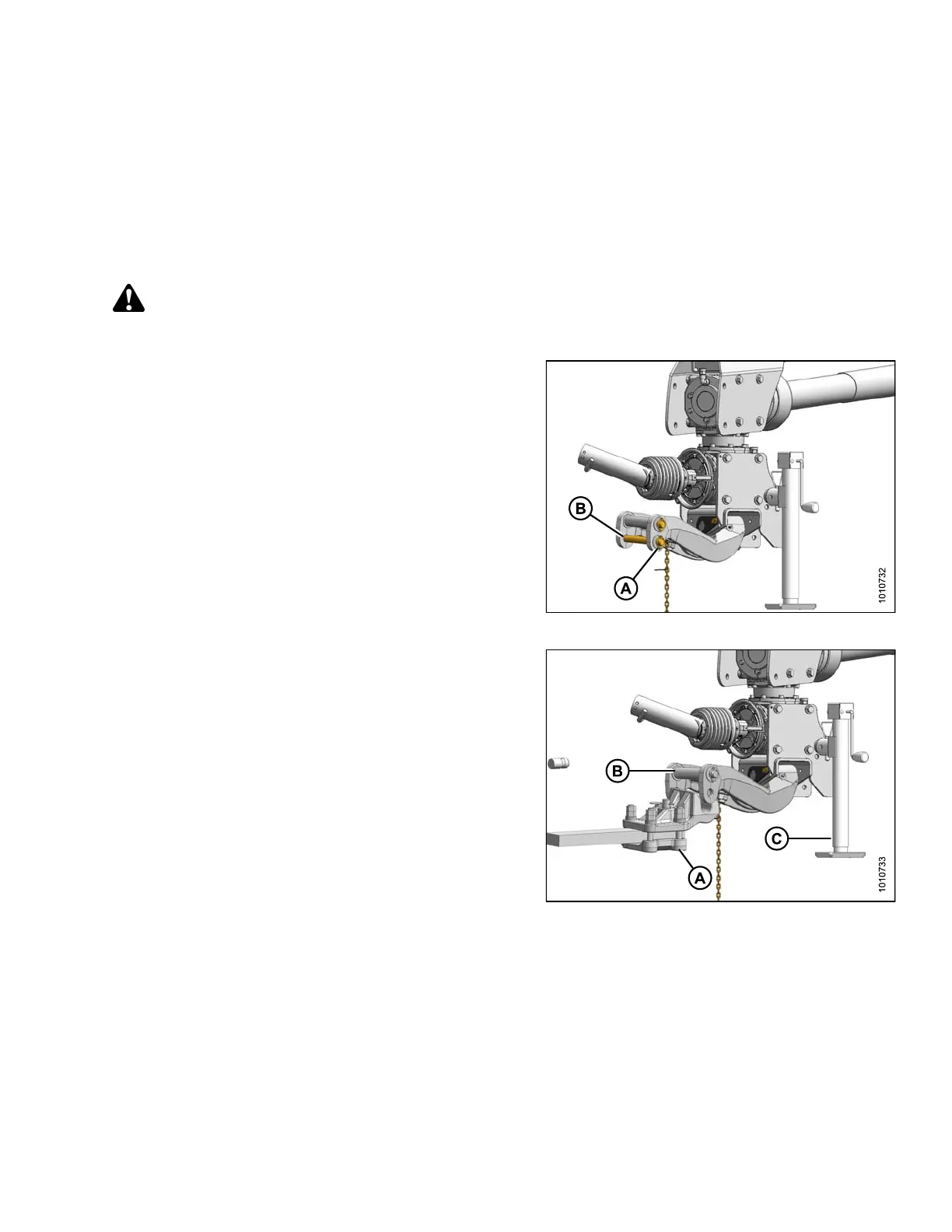

Figure 3.22: Mower Conditioner Hitch
2. Move tractor to position drawbar hitch adapter (A)
under pin (B) in mower conditioner hitch. Adjust height
as necessary with jack (C).
3. Shut down tractor and remove key from ignition.
Figure 3.23: Mower Conditioner Hitch
