MAINTENANCE AN D SERVICING
1. Slide shield cone along drive shaft until it is seated in
metal plate (A).

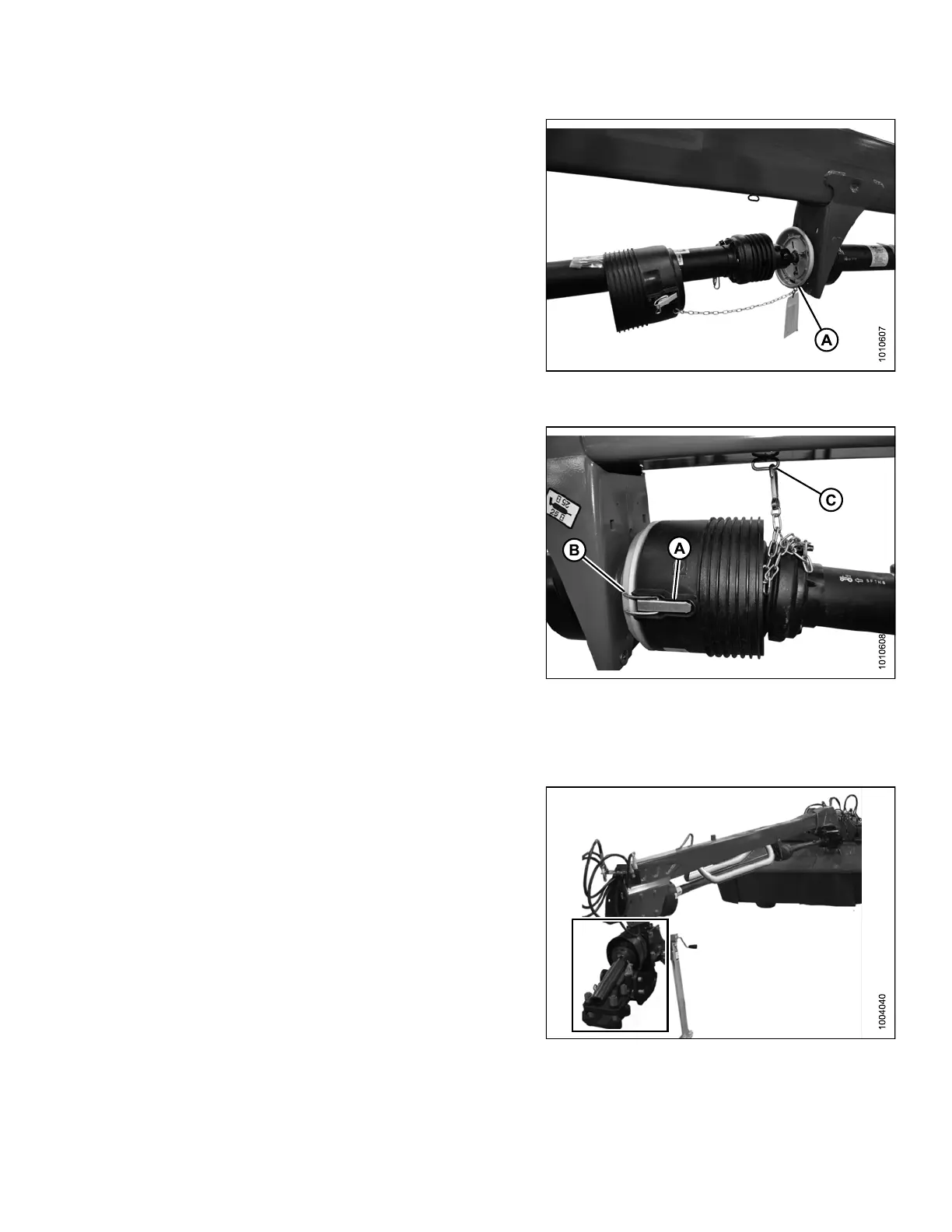

Figure 4.144: Driveline Shield Cone Removed
from Metal Plate
2. Securely fasten two lever clamps (A) to metal plate (B).
3. Attach sa fety chain (C) to h itch, and ens ure that chain
is secured to the shield cone and metal p late.
Figure 4.145: Driveline Shield Cone and
Lever Clamp
4.5.2 Primary Driveline
The primary driveline transfers power from the tractor’s
power take-off (PTO) to the mower conditioner’s forward
swivel gearbox. Follow regular lubrication procedures and
ensure all driveline taper pins are torqued as instructed.
Refer to 4.4.1 Cutterbar Lubrication, page 127.
Figu
re 4.146: Primary Driveline
147910 183 Revision A
