OPERATION
12. Raise stand (A), rotate lock (B) clockw ise to vertical
position, and re-engage lock (B) to hold the stand in
the storage locati on.

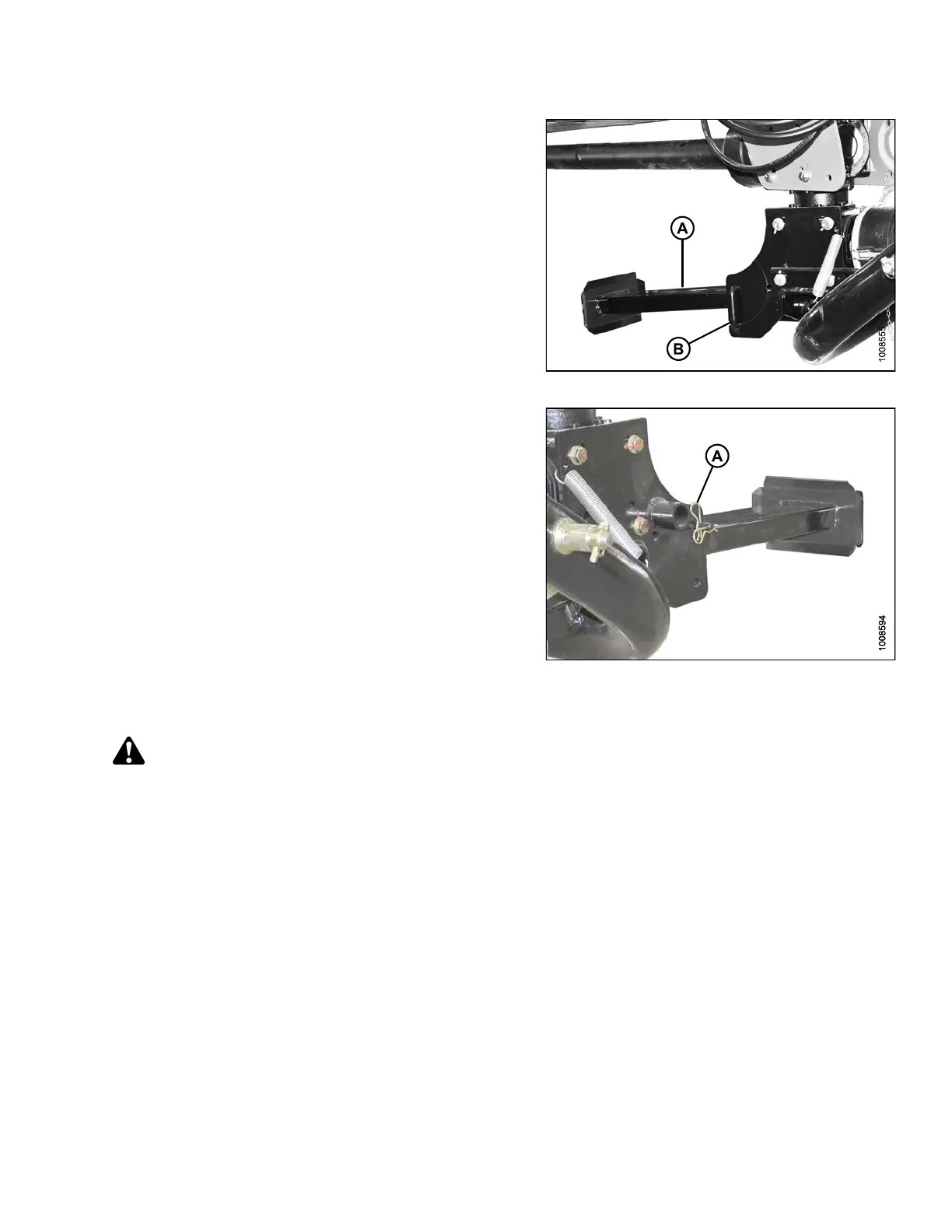

Figure 3.32: Hitch Stand
13. Secure lock with lynch pin (A).
Figure 3.33: Hitch Stand
3.7.3 Connecting Hydraulics
WARNING
Do NOT use remote hydraulic system pressures over 3000 psi (20,684 kPa). Check your tractor operator’s
manual for remote system pressure.
NOTE:
Refer to numbered/colored bands on hoses to identify lift, swing/transport, and tilt hose sets.
147910
47
Revision A
