MAINTENANCE AND SERVICING
3. Loosen clamp (A) and slide the driveline shield (B)
away fro m the yok e.
4. Repeat for the opposite end of the driveline.

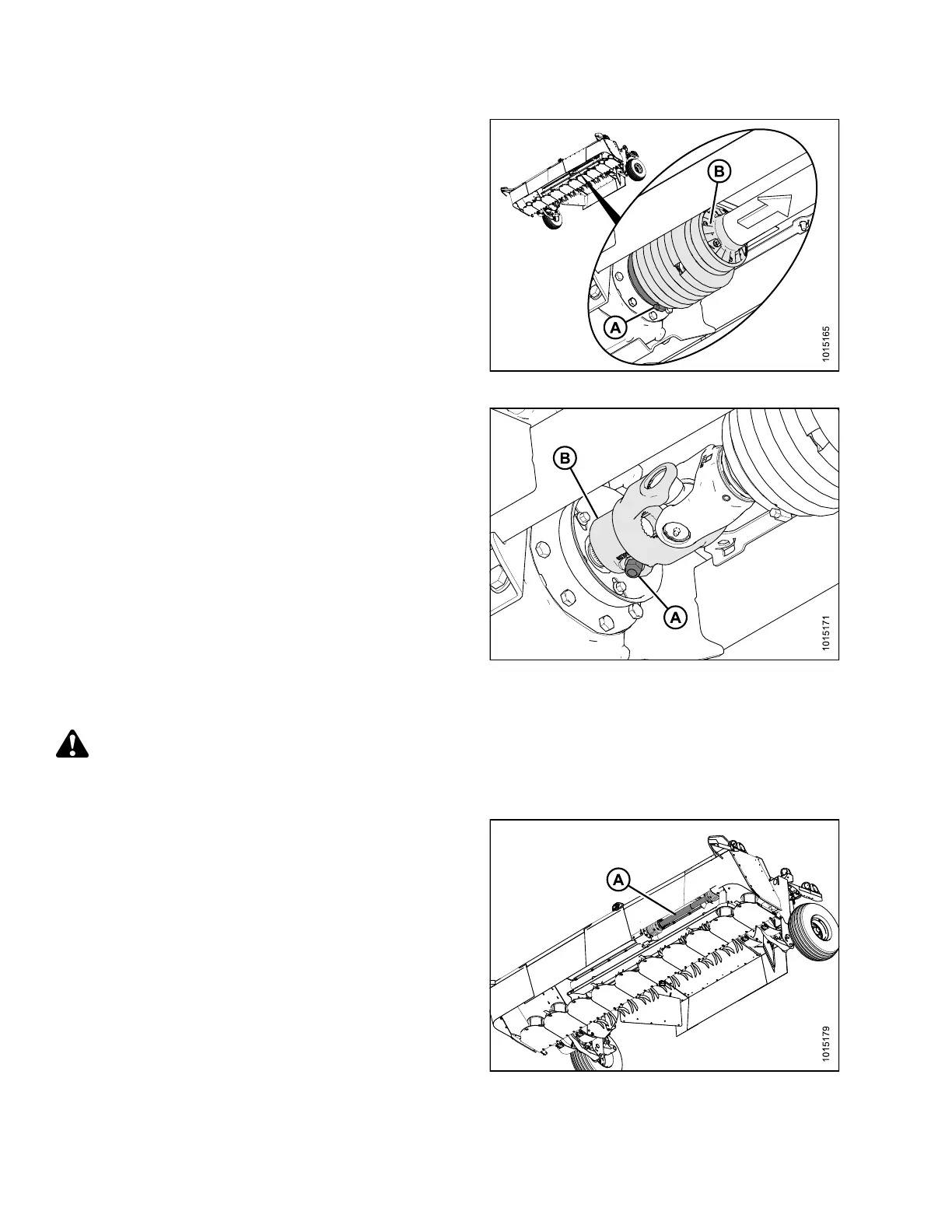

Figure 4.181: Cross Driveline Shield
5. Loosen nut (A) so that taper pin threads are recessed
inside the nut.
6. Tap nut (A) with a hammer to loosen the ta per pin and
releasedrivelineyoke(B)fromtheshaft.
7. Repeat for the opposite end of the driveline.
8. Remove the cross driveline shaft.
Figure 4.182: Cross Driveline
Installing Cross Driveline
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
1. Stop engine and remove key from ignition.
2. Open the cutterbar doors to install the cross driveline
(A) from inside the mower conditioner. Refer to 3.3.1
Opening Cutterbar Doors, page 36.
Figure 4.183: Lower Left View of
Mower C onditioner
147910 198 Revision A
