REFERENCE
7.2 Torque Specifications
The following tables provide the correct torque values for various bolts, cap screws, and hydraulic fittings.
• Tighten all bolts to the torque values specified in the charts (unless otherwise noted throughout this manual).
• Replace hardware with the same strength and grade of bolt.
• Use the torque value tables as a guide and periodically check tightness of bolts.
• Understand torque categories for bolts and cap screws by using their identifying head markings.
7.2.1 SAE Bolt Torque Specifications
Torque values shown in the following tables are valid for non-greased, or non-oiled threads and heads; therefore,
do NOT grease or oil bolts or cap screws unless otherwise specified in this manual.
Table 7.2 SAE Grade 5 Bolt and Grade 5 Free
Spinning Nut
Torque (ft·lbf)
(*in·lbf)
Torque (N·m)
Nominal
Size (A)
Min. Max. Min. Max.
1/4-20 *106 *117
11 .9 13.2
5/16-18 *218 *241
24.6 27.1
3/8-16
32 36 44 48
7/16-14
52
57
70
77
1/2-13
79 87 106 11 8
9/16
-12
114 126 153 170
5/8-11
157 173 212 234
3/4-10
281 311 380 420
7/
8-9
449 496 606 669
1-8 611 676 82 5 912

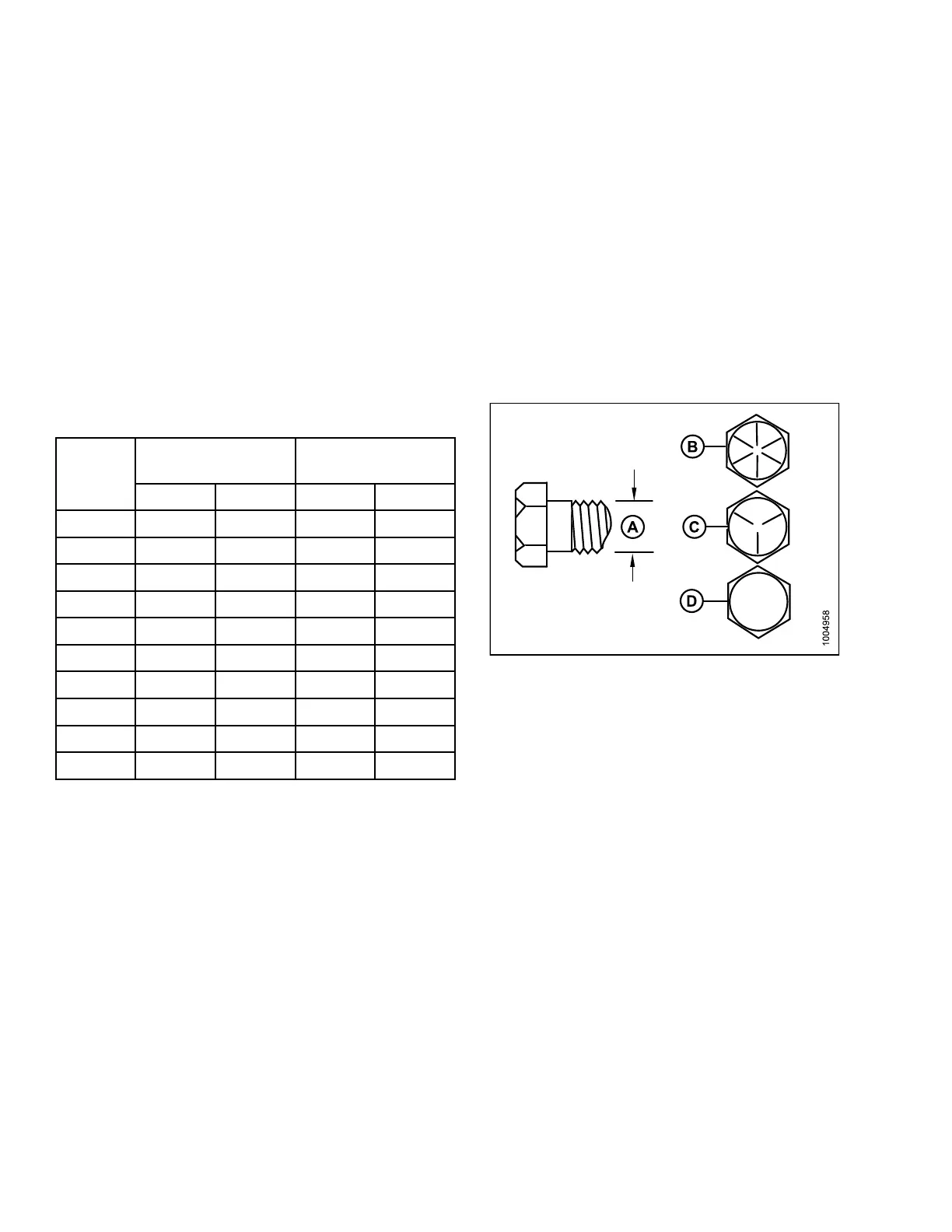

Figure
7.1: Bolt Grades
A-NominalSize B-SAE-8
C - SAE-5 D - SAE-2
147910 260 Revision A
