MAINTENANCE AND SERVICING

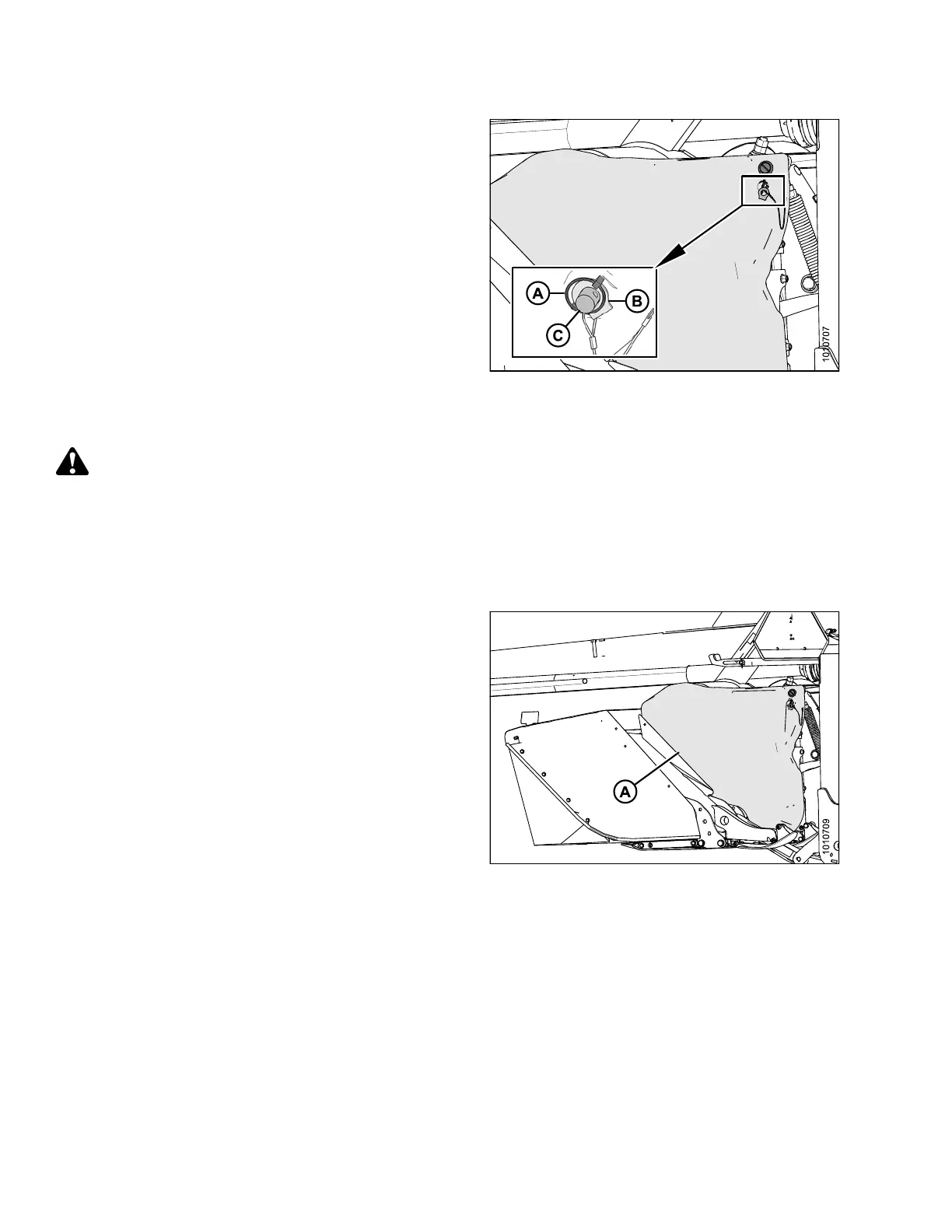

4. Replace tool (B) and lynch pin (A) on pin (C).
Figure 4.244: Tool to Unlock Driveshield
4.8.3 Replacing Driveshield Latch
CAUTION
Do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown are for left side driveshield—right side driveshield is similar.
1. Remove driveshield (A). Refer to 4.8.1 Removing
Driveshields, page 224.
Figure 4.245: D
riveshield
147910 226 Revision A
