MacDon R113 - Changing 16-Foot Cutterbar Crop Stream Configuration

MAINTENANCE AND SERVICING
Changing 16-Foot Cutterbar Crop Strea m Configuration

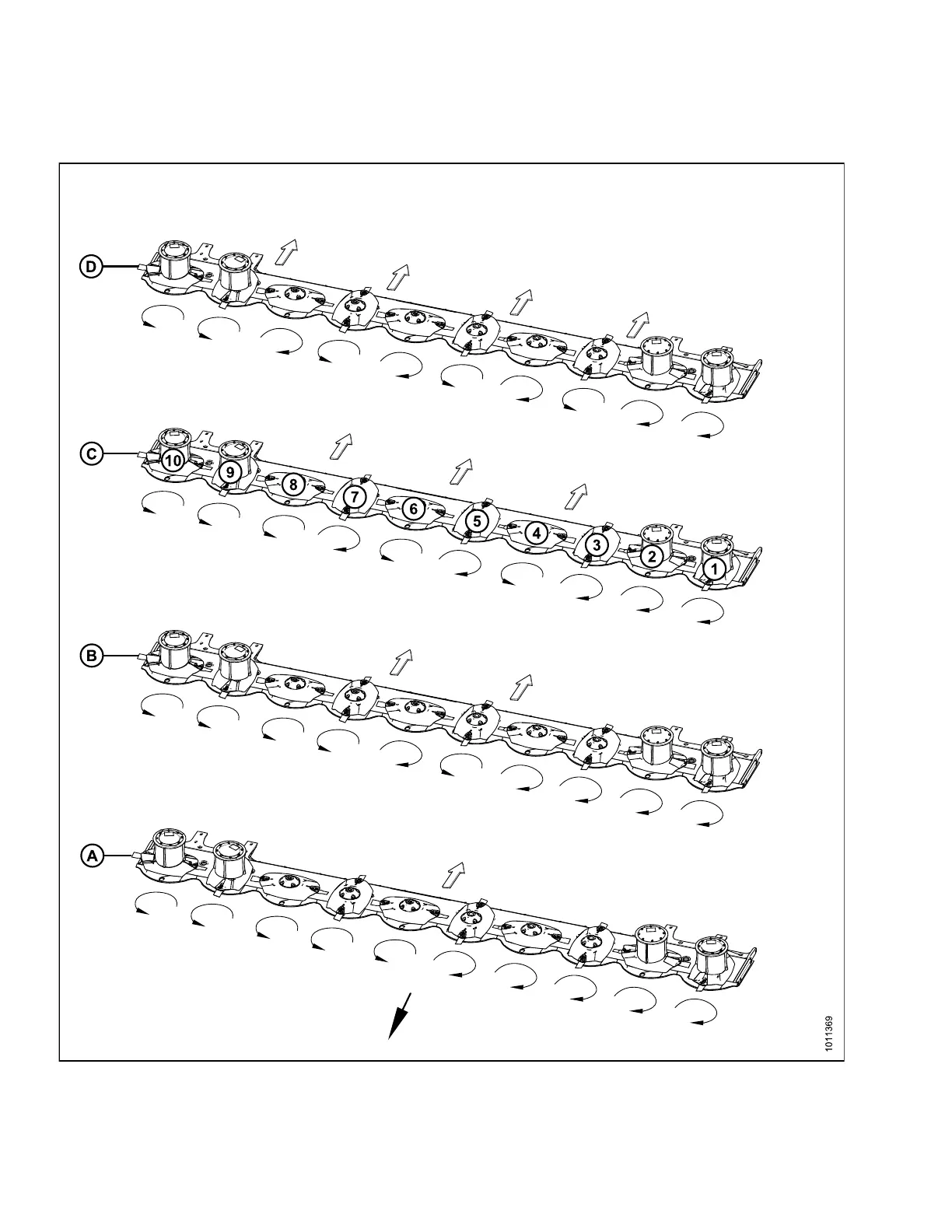

Figure 4.50: 16-Foot (10 Disc) Spindle Rotation Pattern and Crop Streams
A - One Crop Stream B - Two Crop Streams C - Three Crop Streams D - Four Crop Streams
