MAINTENANCE AN D SERVICING
1. Place blocks (A) under opposite wheel to prevent
machine from moving if mower conditioner is not
attached to towing vehicle.
2. Position jack under frame leg (B).
3. Loosen wheel bolts slightly.
4. Operate jack to raise wheel off ground.
5. Place blocks or a stand under frame leg.
6. Remove wheel bolts and remove wheel.

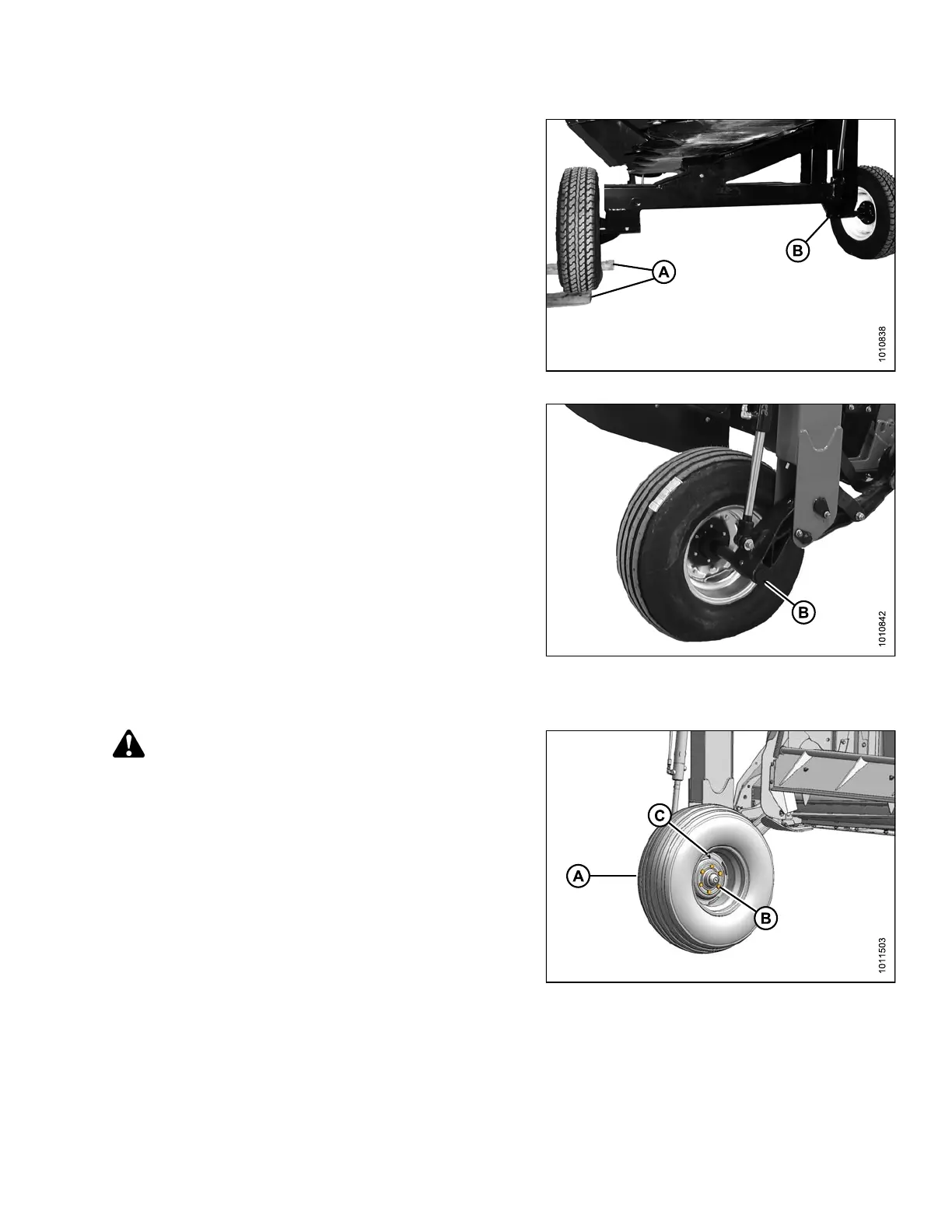

Figure 4.228: Transport Wheel
Figure 4.229: Field Wheel
Installing Field Wheels
CAUTION
When installing wheel, be sure to match countersunk
holes with bolt head profiles. Holes that are not
countersunk do NOT correctly seat the bolts.
1. Position wheel (A) on spindle, install bolts (B), and
partially tighten.
IMPORTAN T:
Be sure valve stem (C) points away from
wheel support.
Fi
gure 4.230: Installing Wheel Bolts
147910 219 Revision A
