OPERATION
1. Move steering control lever (A) backward to position
(B) until the mower conditioner reaches the desired
path of travel on the left side o f the tractor.

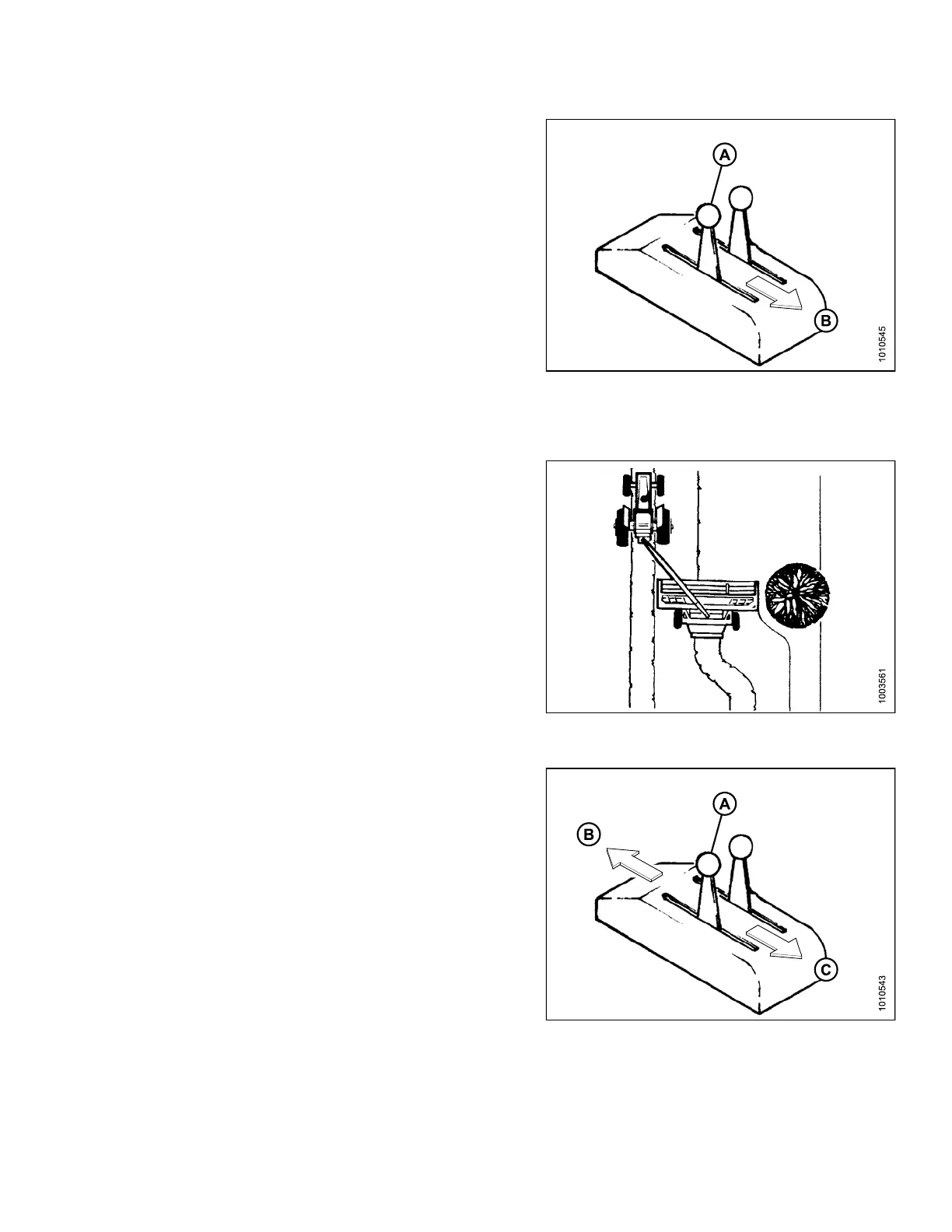

Figure 3.59: Tractor Steering Control Lever
3.13.3 Avoiding Obstacles
Follow the steps below to steer the mower conditioner
around an obstacle.
Figure 3.60: Mower Conditioner Steered
around Obstacle
1. Activate steering control lever (A) to m aneuver mower
conditioner into the desired path of travel.
a. Move lever forward to po sition (B) to steer the
mower conditioner to the right.
b. Move lever backward to po sition (C) to steer the
mower conditioner to the left.
Figure 3.61: Tractor Steering Control Lever
147910 63 Revision A
