MacDon R113 - Detaching from Two-Point Hitch

OPERATION
3.8.2 Detachi
ng from Two-Point Hitch
CAUTION
• To prevent accidental movement of tractor, shut off engine, engage parking brake, and remove key.
• To maintain stability, always lower the machine completely. Block mower conditioner wheels before
detaching from tractor.
1. Park machine o n flat level surface.
2. Lower mower conditioner onto blocks or leave mower
conditioner raised.
NOTE:
If lea ving m ower co nditioner in rais ed po s itio n,
engage lift cylinder lock-out valves.
3. Shut off engine and remove key.
4. Move remote cylinder control valve lever back and forth
to relieve stored hydraulic pressure.
If Road Friendly Transport
™
is installed:

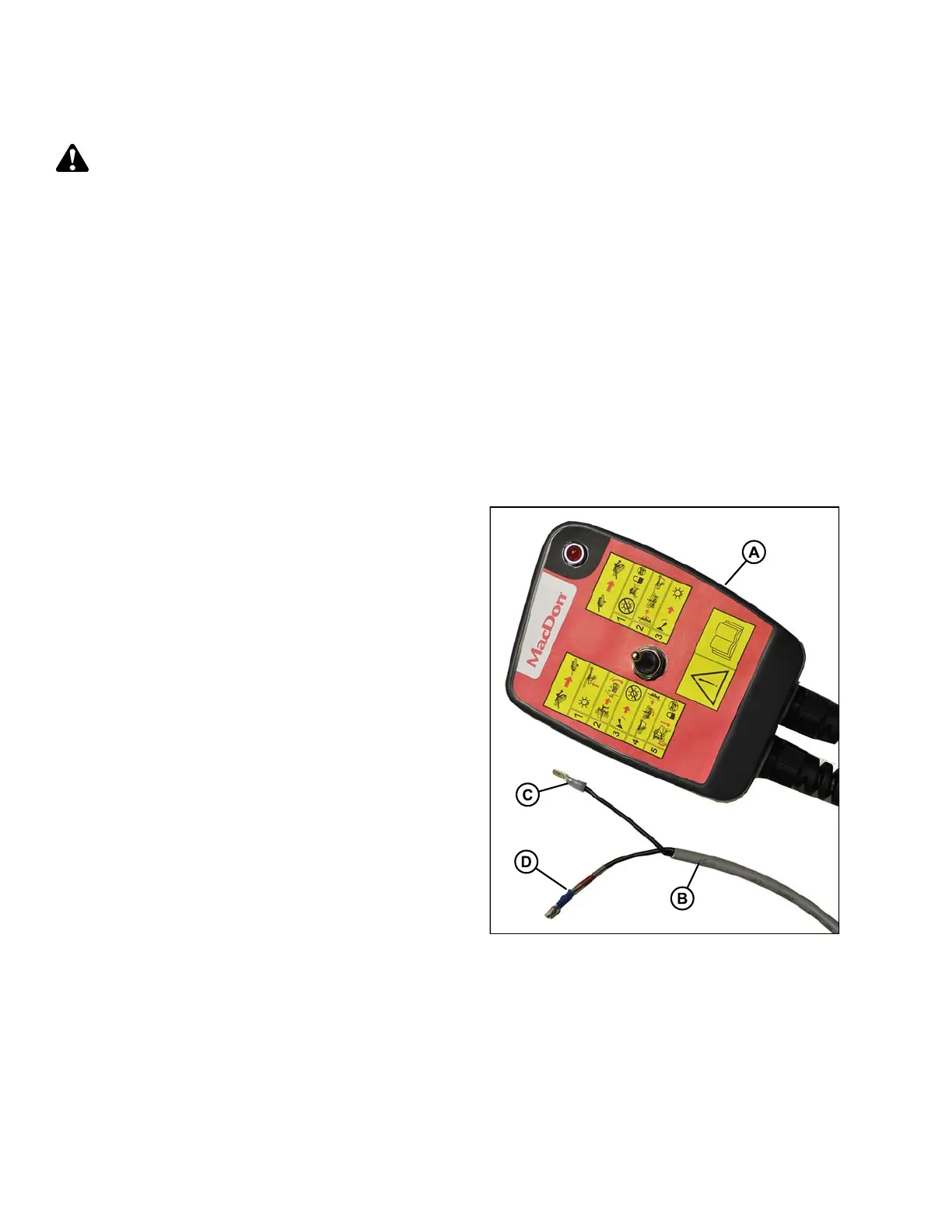

5. Disconnect the power wires from the remote
control (A).
6. Roll up cable (B) and attach the remote control (A) to
the hitch with the magnet on the back of the remote
control box.
Figure 3.45: Remote Control
147910 54 Revision A
