MAINTENANCE AN D SERVICING
4.5.5 Cross Dr
iveline
The cross driv
eline (A) transfers power from the tractor’s
power take-o
ff (PTO) to the mower c onditioner drive
gearbox. Fol
low the regular lubrication schedule for
this compone
nt. Refer to 4.3.5 Lubricating the Mower
Conditioner
, page 115.

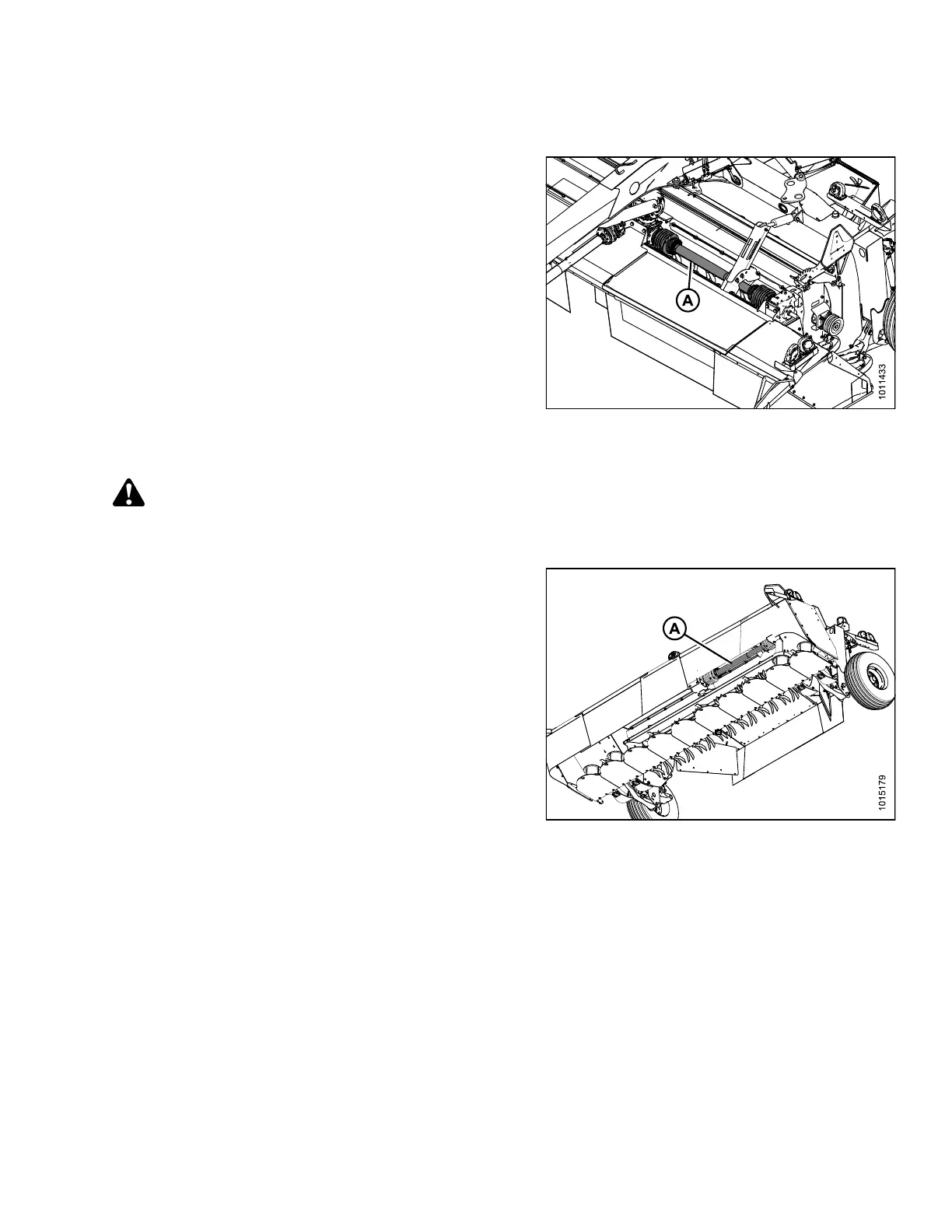

Figure 4.179: Cros s Driveline
Removing Cross Driveline
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Stop engine and remove key from ignition.
2. Open the cutterbar doors to access the cross driveline
(A) from inside the mower conditioner. Refer to 3.3.1
Opening Cutterbar Doors, page 36.
Figure 4.180: Lower Left View of
Mower Conditioner
147910 197 Revision A
