MAINTENANCE AND SERVICING
9. Move the shield cone (A) to expose the U-joint.
10. Clean the taper pin threads.
11. Install taper pin so groove on p in is aligned with groove
on shaft. Ensure there is no grease on taper pin
threads after installing into yoke.
12. Torque the taper pin nut (B) to 110 ft·lbf (150 N·m). Pin
should be recessed 3/8–7/16 in. (9–11 mm) into yoke.
IMPORTANT:
Check taper pin torque every 25 hours until it
stops moving, then check before e very season.

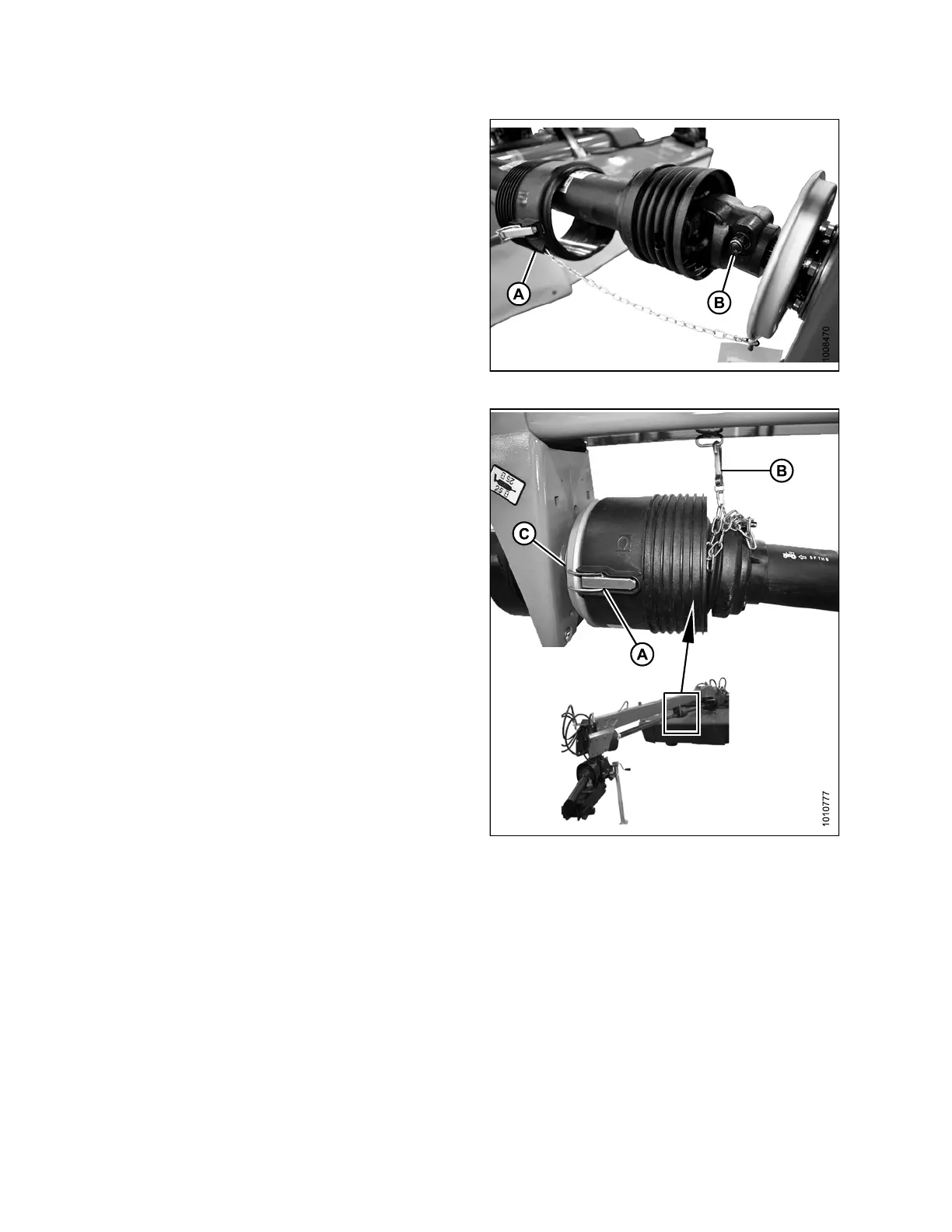

Figure 4.177: U-Joint
13. Slide shield con e onto metal plate (C) attached to
center support, secure with two lever clamps (A), and
hook safety chain (B) to hitch.
Figur
e 4.178: Driveline Shield Cone
147910 196 Revision A
