MAINTENANCE AN D SERVICING
2. Install driveline guard onto driveline (if previously removed). Refer to Installing Driveline Guard, page 20 3 .
3. Position driveline onto the gearbox shaft as shown.
4. Clean the taper pin threads.
5. Install taper pin into yoke with grove on pin aligned with
grove in shaft. Ensure there is no grease on threads
after inserting pin through yoke.
6. Secure pin with nut (A). Torque to 110 ft·lbf (150 N·m).
Pinshouldbeflush with yoke.
IMPORTAN T:
Check taper pin torque every 25 hours until it
stops moving, then check before every season.

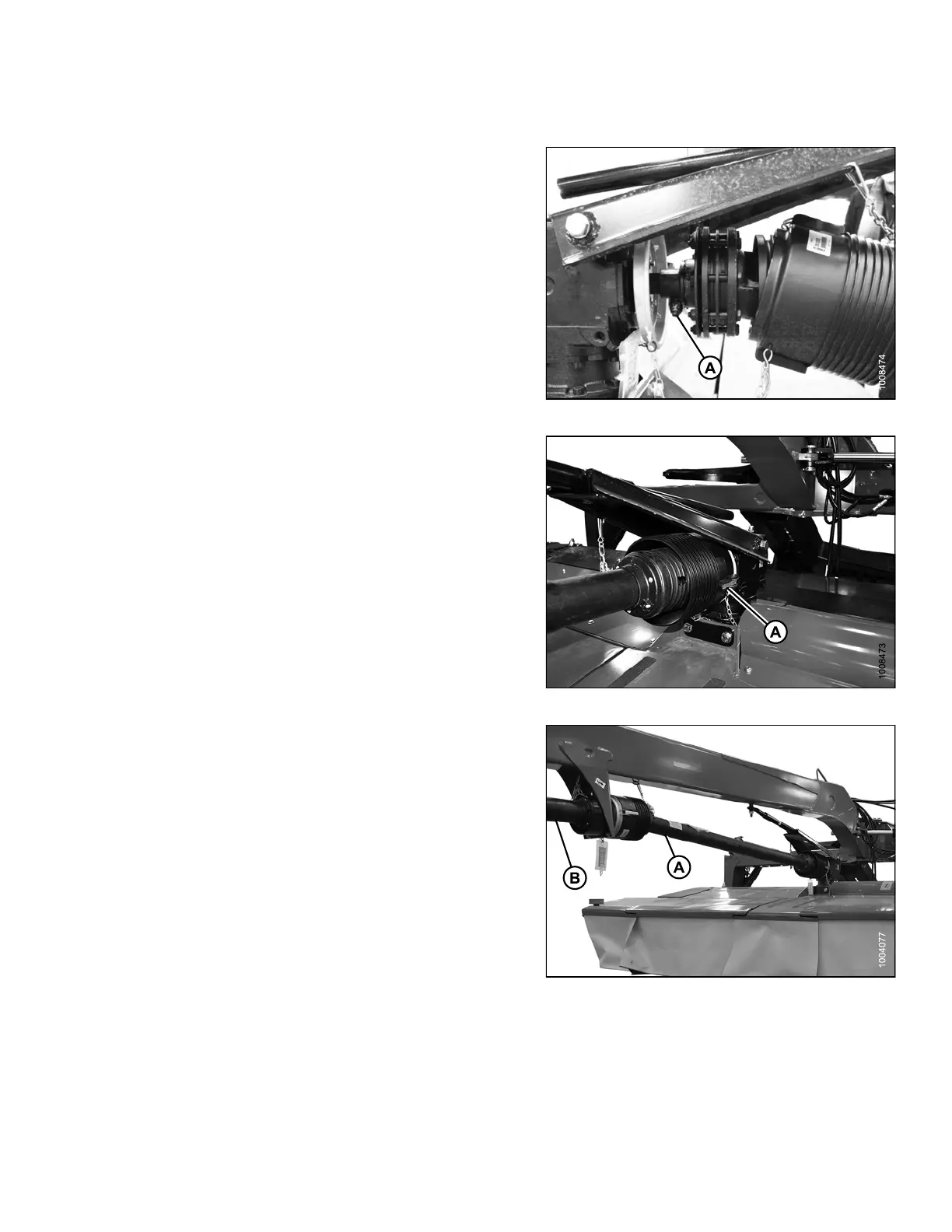

Figure 4.174: Driveline and Gearbox
7. Slide the shield cone to the gearbox and secure with
the two lever clamps (A).
Figure 4.175: Driveline Shield Cone
8. Assemble forward half (A) of clutch driveline onto
female half and a tta ch to shaft on hitch driveline (B).
Figure 4.176: Clutch Driveline Attached to
Hitch Driveline
147910 195 Revision A
