OPERATION
The rear baffle (A) is located immediately behind and above
the flail conditioner. The baffle(A)canbeusedtodirect
crop into the forming shields for narrow and moderate width
windrows or to direct crop downward to form a wide swath.

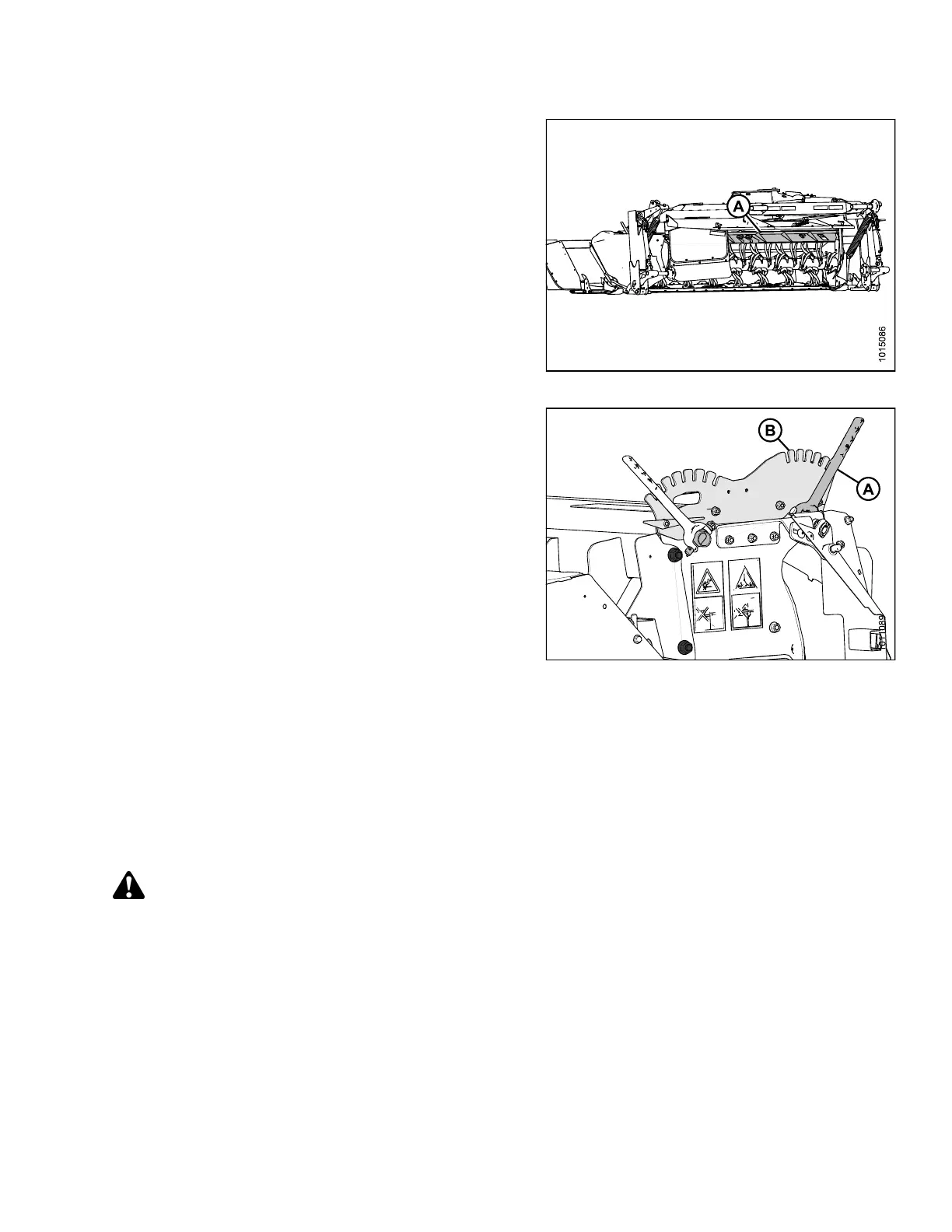

Figure 3.118: Rear Baffle Finger Conditioner
1. Pull rear baffle adjustment lever (A) in the outboard
direction to disengage tab from adjustment plate (B).
2. Position rear baffle adjustment lever (A) as follows:
a. To raise baffle, move lever forward.
b. To lower baffle, m o ve lever backward.
3. Release rear baffle adjustment lever (A) so that tab
engages hole in adjustment plate (B).
Figure 3.119: Rear Baffle Adjustment Lever
3.15.11 Cutterbar Deflectors
Cutte
rbar deflectors attach to the cutterbar just below the conditioner rolls and provide improved feeding into the
condi
tioner rollers by preventing crop from feeding under the rolls when cutting heavy crops with long stems.
Cutte
rbar deflectors may not be well-suited for all environments, such as sandy conditions, and are easily removed
or ins
talled in the field.
Rem
oving Cutterbar Deflectors
DAN
GER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove
key, and engage header lift cylinder lock-out valves before going under machine for any reason.
147910 97 Revision A
