MAINTENANCE AND SERVICING
Removing Outboard Curtains
The procedure for removing outboard curtains is the same for both sides.
1. Open cutterbar door. Refer to 3.3.1 Opening Cutterbar
Doors, page 36.

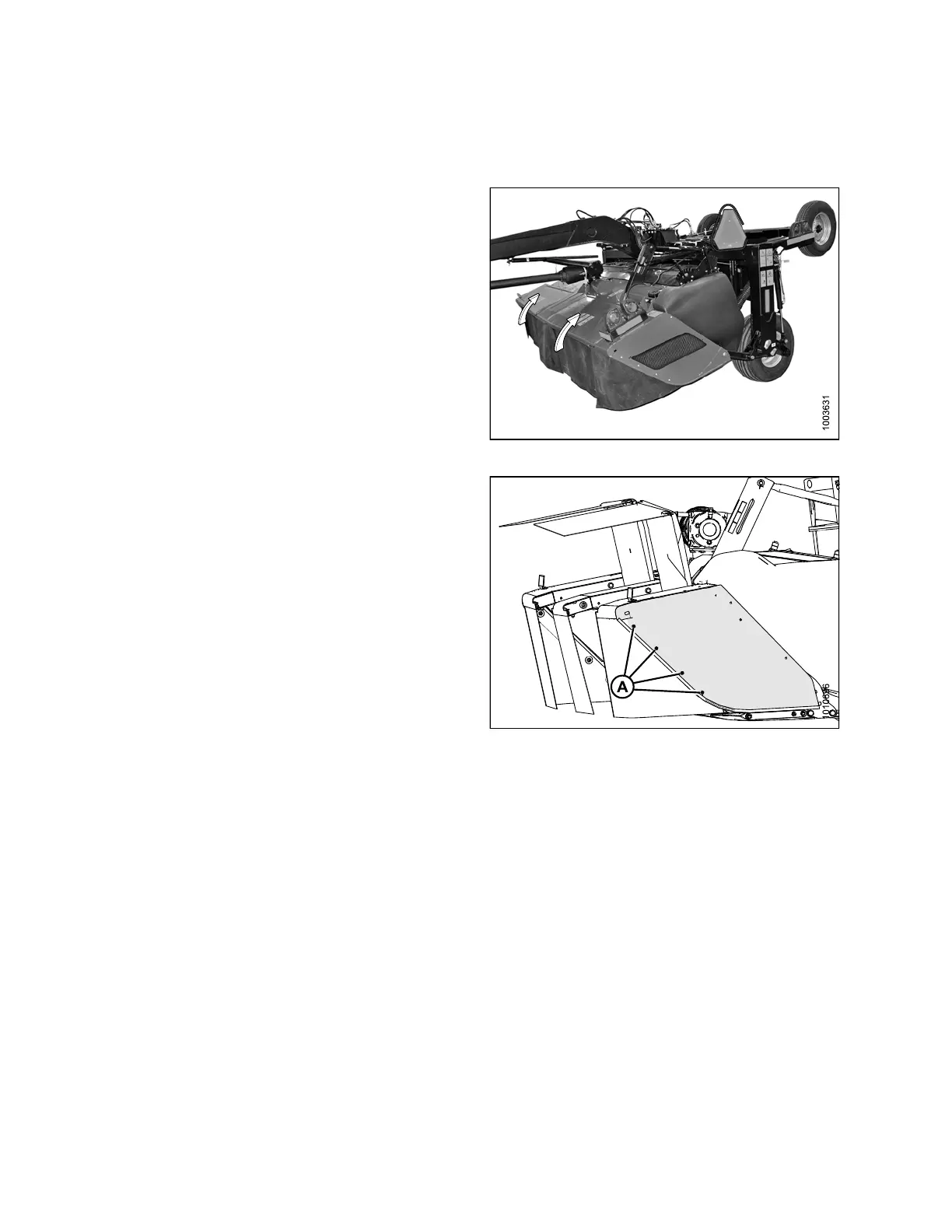

Figure 4.7
7: Cutterbar Doors
2. Remove four cap screws (A), nuts, and large washers
securing outboard curtain to endsheet.
Figure
4.78: Left Side Endsheet
