OPERATION
3.2 Driveshields
3.2.1 Opening Driveshields
CAUTION
Do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown are for left side drive sh ield—right side drives hield is similar.

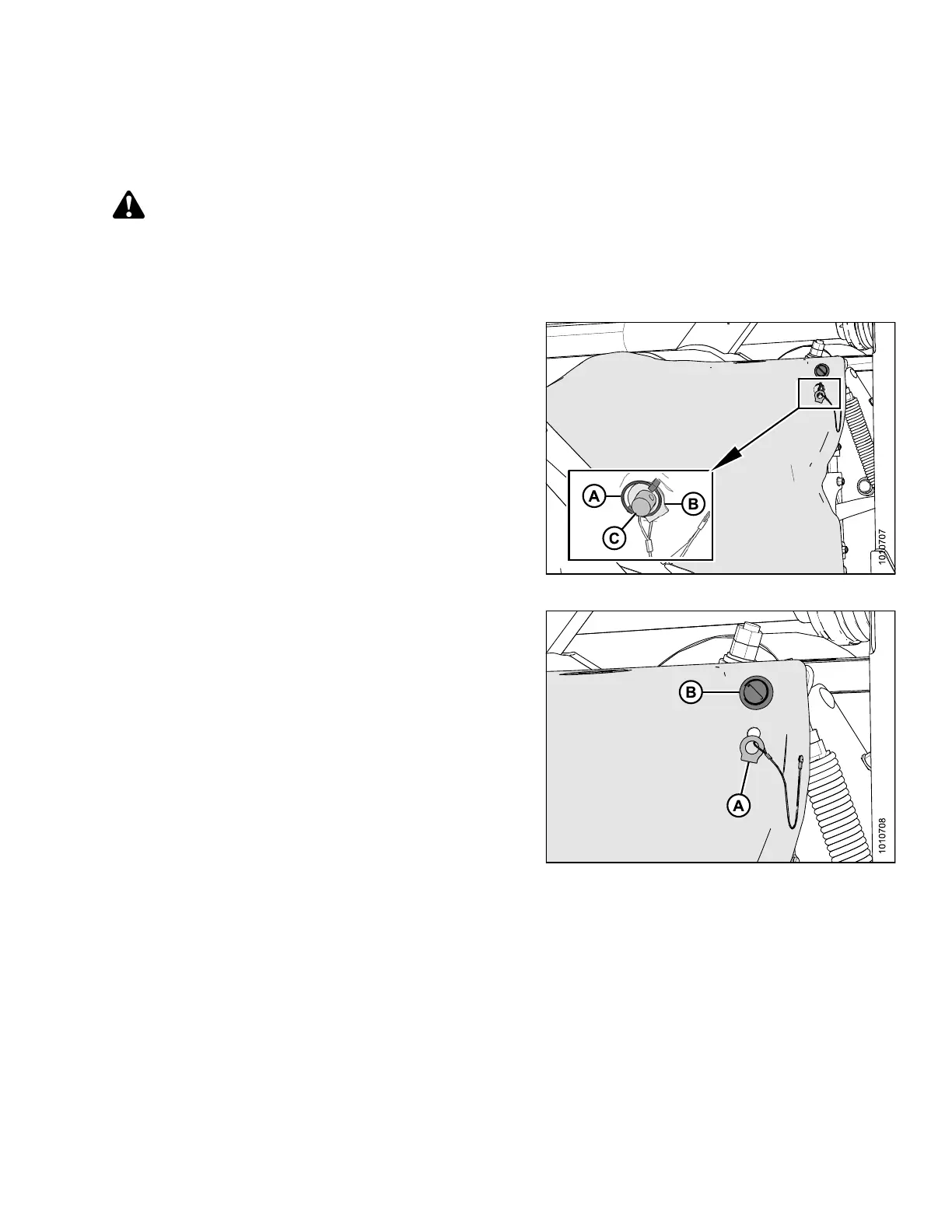

1. Remove lynch pin (A) and tool (B) from pin (C).
Figure 3.5: Driveshield
2. Insert flat end of tool (A) into latch (B) and turn it
counterclockwise to unlock.
Figure 3.6: Driveshield Latch
147910 33 Revision A
