OPERATION

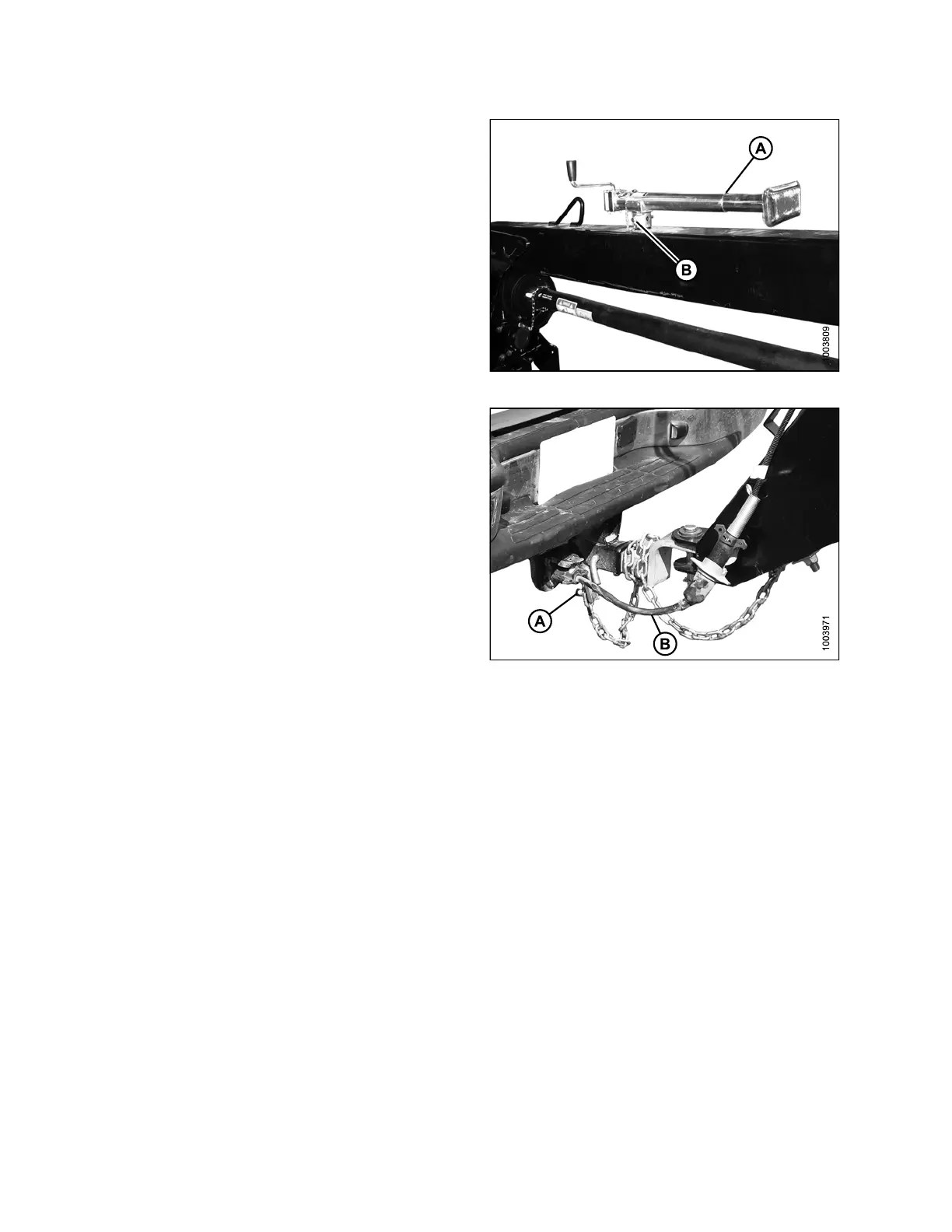

8. Move jack (A) to s torage position on side of hitch, and
secure with pin (B).
NOTE:
If unit is equipped with a two-point hitch, rotate the
stand to the storage position.
Figure 3.72: Jack in Storage Position
9. Wrap safety chain (A) around hitch and attach to
truck frame. Provide only enough slack in chain to
permit turning .
10. Connect electrical harness (B).
Figure 3.73: Safety Chain and Electrical Harness
11. Keep the slow moving vehicle (SMV) sign,
reflectors, and lights clean and visible at rear of
mower conditioner.
12. Ensure tires are properly inflated.
13. Do NOT exceed 20 mph (32 km/h).
3.14.4 Transp
ort Lighting
The position of the lighting depends on the transport configuration. If the mower conditioner includes the Road
Friendly Transport system, refer to Lighting: With Road Friendly Transport
™
Option, page 71.Ifthemower
conditioner does NOT include the Road Friendly Transport system, refer to Lighting: Without Road Friendly
Transport
™
System Option, page 71.
147910 70 Revision A
