OPERATION
2. Ensure the hydraulic hoses (A) are securely stored on
the hitch.
NOTE:
Hydraulic hos
es do no t need to be attached to
the tractor fo
rtowing.
3. Remove the fo
rward half (B) of driveline and store in
the cab for tr
ansport.
4. Store drive
line (C) on hook (D) (if power take-off (PTO)
driveline i
s not attached).
NOTE:
The PTO driveline (C) does not need to be
attached for towing purposes.

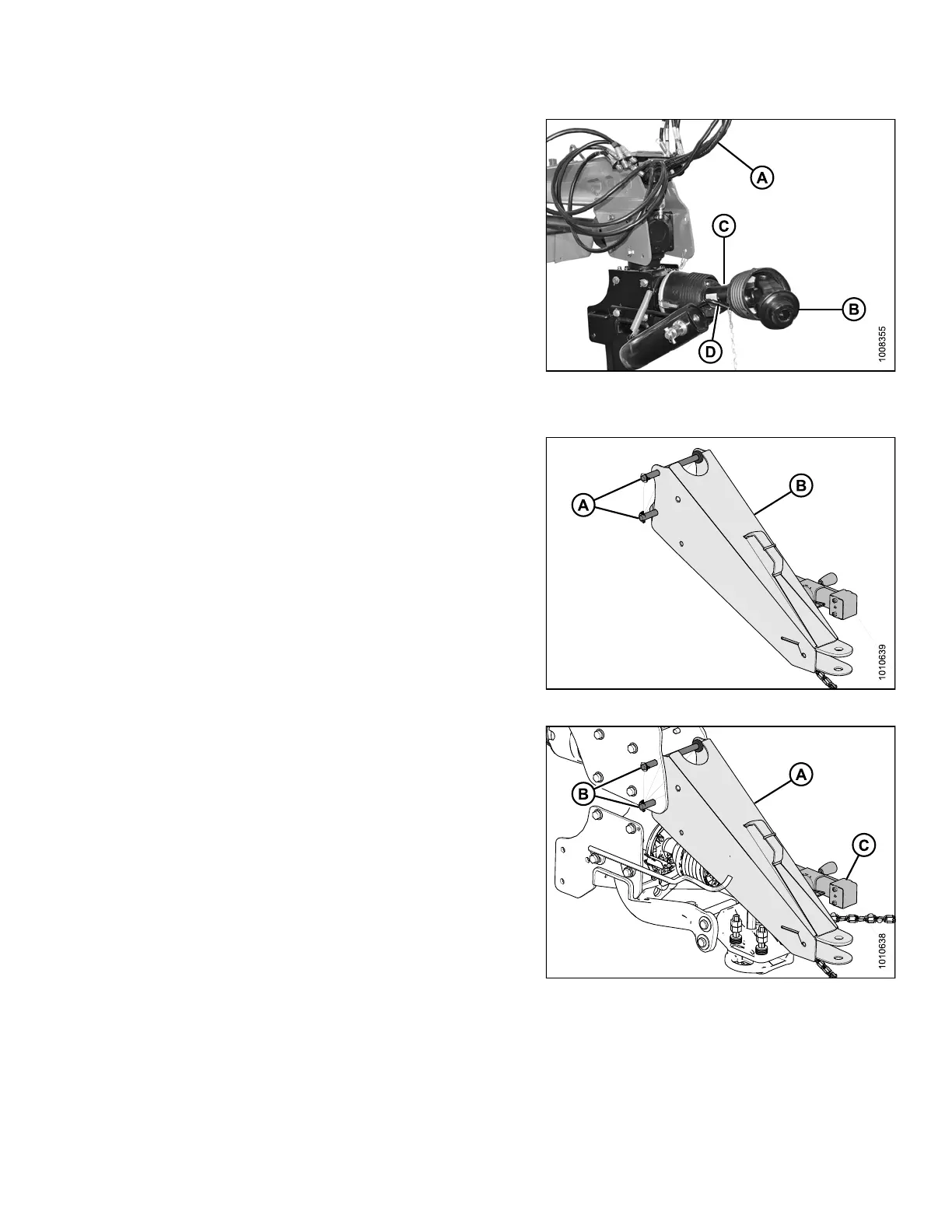

Figure 3.69: Mower Conditioner Hitch
5. Remove pins (A) from transport hitch (B).
Figure 3.70: Tr
ansport Hitch
6. Position transport hitch (A) o n mower conditioner hitch,
install pins ( B), and secure with lynch pins.
7. Lift the mower conditioner hitch with jack and attach
mower conditioner to truck.
Figure 3.71
: Transpor t Hitch Installed
147910 69 Revision A
