MacDon R113 - Removing Cutterbar Door Curtains

MAINTENANCE AND SERVICING
Check cutterbar curtains for the following conditions:
• Rips and tears: Replace curtain.
• Cracking: While the cu rtain may look whole, this is an
indicator that fa ilure is immine nt—replace curtain.
• Missing bolts: Replace missing hardware
before operating.

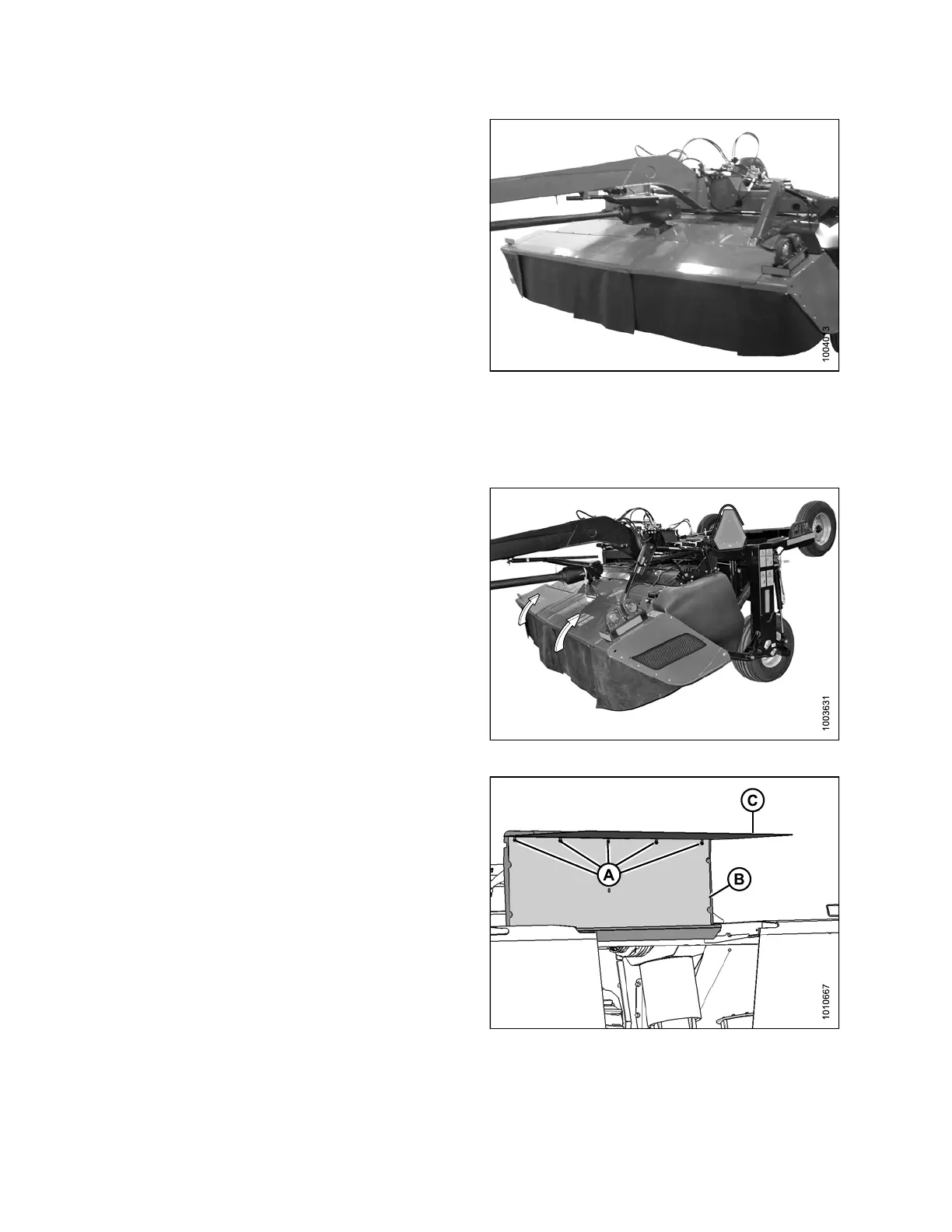

Figure 4.65: Cutterbar Curtains
Removing Cutterbar Door Curtains
The p roce
dure for removing cutterbar door curtains is the same for both doors.
1. Open cutt
erbar door. Refer to 3.3.1 Opening Cutterbar
Doors, pa
ge 36.
Figure 4.66: Cutterbar Doors
2. Remove
five nuts (A) from the bolt studs.
3. Remove
shield panel (B).
4. Remov
e curtain (C).
Figure 4.67: Nuts Securing Shield Panel and
Curtain to Cutterbar Door
147910 152 Revision A
