MAINTENANCE AN D SERVICING
7. Install clutch driveline . Refer to Installing Clutch
Driveline, page 194.
8. Install hitch driveline. Refer to Installing Hitch Drivelin e ,
page 189.
9. Install primary driveline. Refer to Installing Prima ry
Driveline, page 184.
10. Install driveline shield cone (A). Refer to Insta lling
Driveline Guard, page 203.

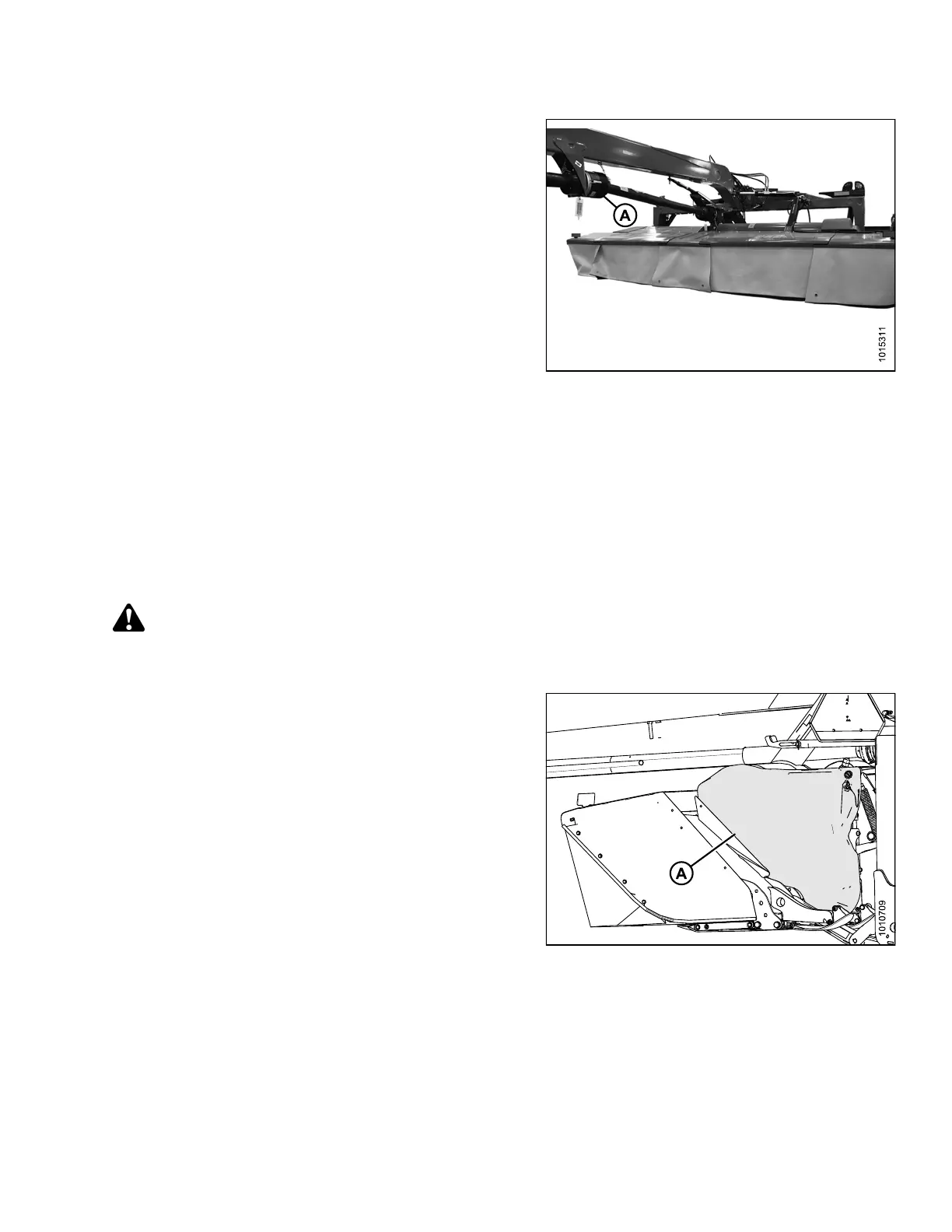

Figure 4.196: Driveline
4.5.8 Conditioner Drive Belt
The condit
ioner drive belt is located inside the left driveshield and is tensioned with a spring tensioner. The
tension i
s factory-set and should not require adjustment.
Inspecti
ng Conditioner Drive Belt
Check the belt tension and inspect for damage or wear every 100 hours or annually (preferably before the start
of the cutting season).
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator's seat for any reason.
1. Lower mower conditioner fully, turn off engine, and
remove key.
2. Open the left side driveshield (A). Refer to 4.8.1
Removing Driveshie lds, page 2 24.
Figure 4.197: Left Side Driveshield
