MAINTENANCE AN D SERVICING
NOTE:
Arrow indicates forward direction.
2. Place a wooden
block between two cutterbar discs to
prevent disc r
otation while loose nin g blade bolts.
3. Remove eight
M8 bolts (A) and washers securing the
cover to the n
on-driven r ot ary deflector.

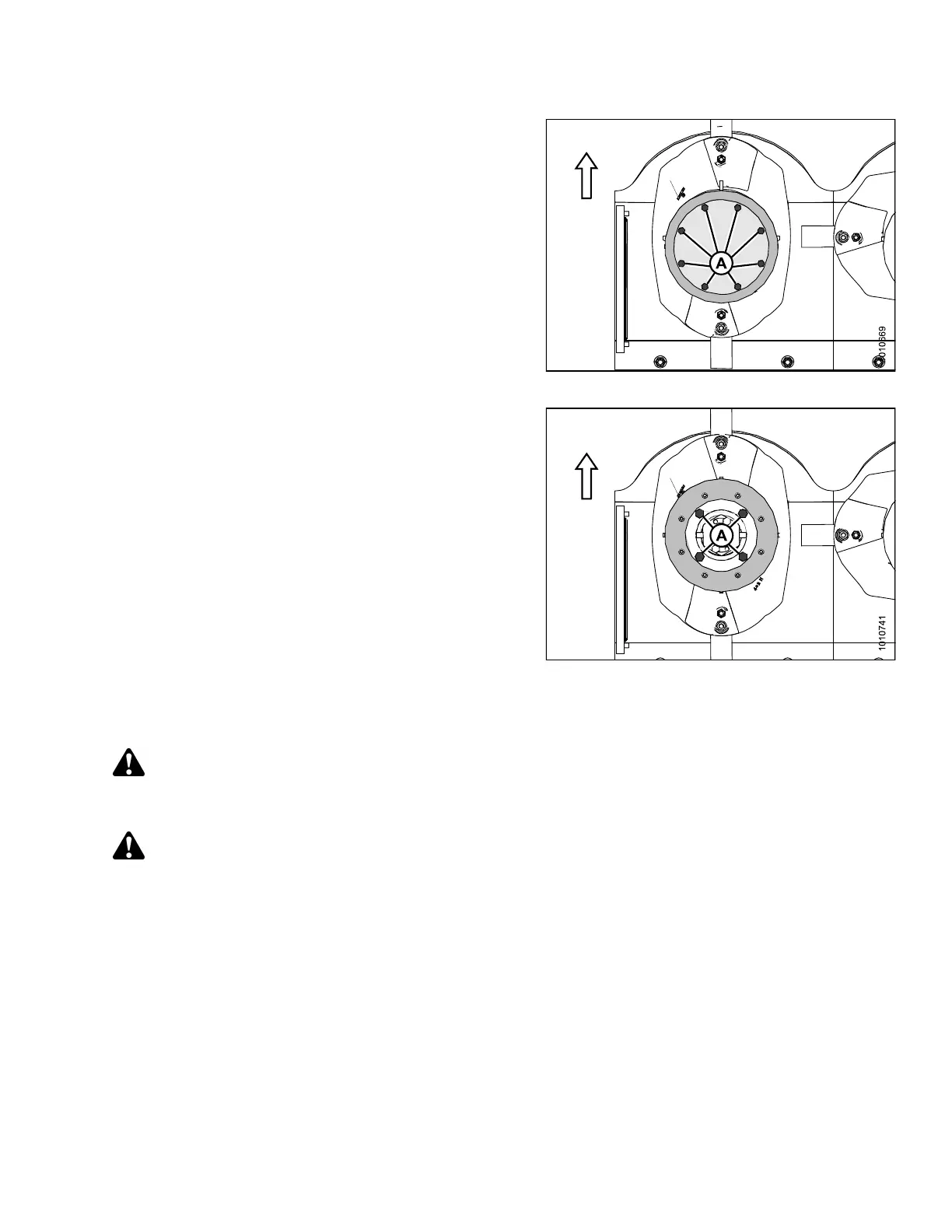

Figure 4.119: 16-Foot Mower ConditionerShown
4. Remove the four M10 bolts inside the deflector drum
using a 12 in. (305 mm) extension and 16 m m socket.
5. Remove wooden block.
6. Remove rotary deflector.
Figure 4.120: Non-Driven Rotary Deflector
(Top View)
Installing Non-Driven Rotary Deflectors
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove
key, and engage header lift cylinder lock-out valves before going under machine for any reason.
CAUTION
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear
gloves when handling blades.
147910 173 Revision A
