MAINTENANCE AND SERVICING
12. Use the safecut spindle-nut wrench and remove nut
(A).

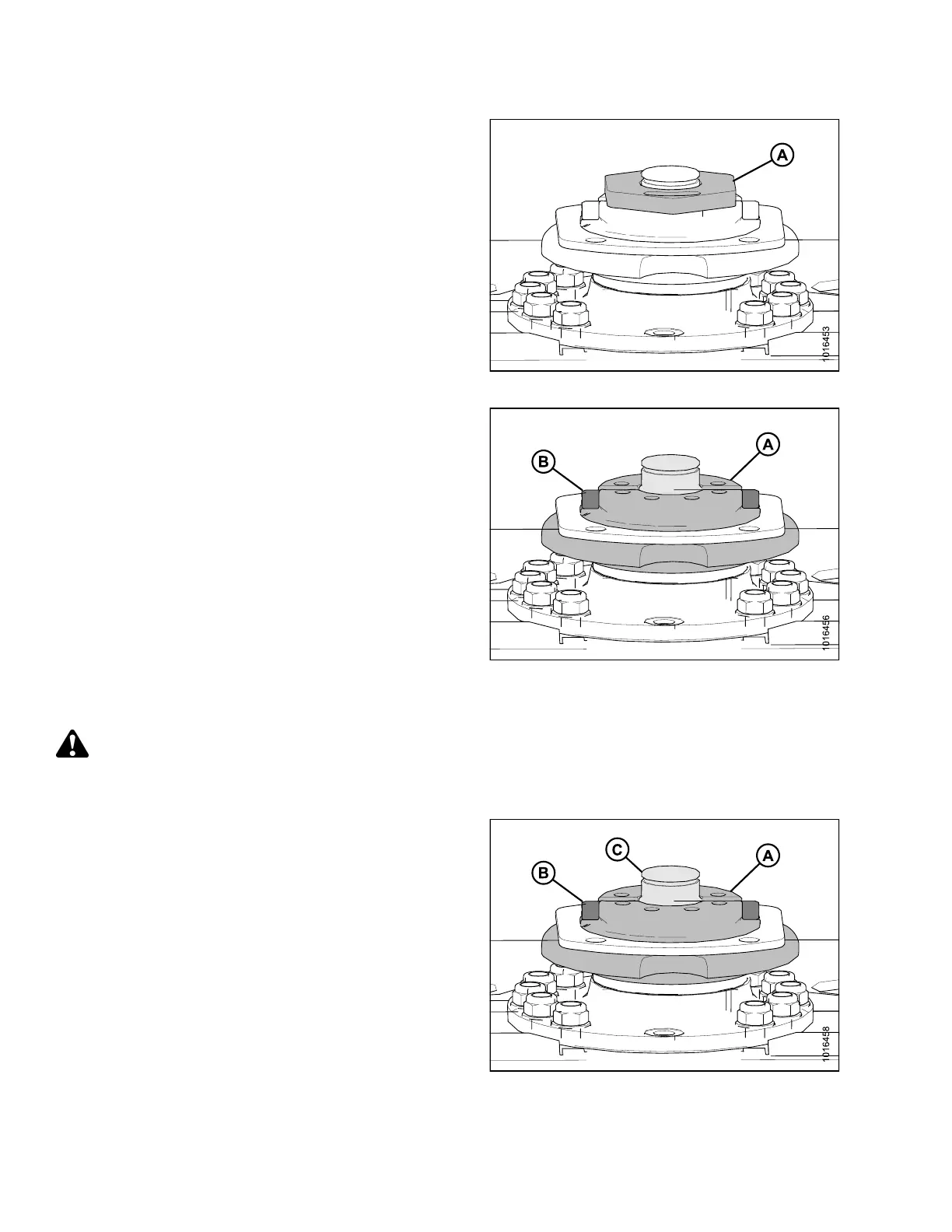

Figure 4.132: Cutterbar Spindle
13. Remove the hub (A).
14. Remove shear pins (B). Do NOT damage the pin bore
on the pinion.
NOTE:
Check the nut and hub for damage. Replace if necessary.
15. Refer to
Installing Cu tterba r Spindle She ar Pin, page
178.
Figure 4.133: Cutterbar Spindle
Installing Cutterbar Spindle Shear Pin
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
1. Fill the space above the bearing with grease.
2. Place the hub (A) on the spindle ( C).
3. Install shear pins (B).
Figure 4.134: Cutterbar Spindle
147910 178 Revision A
