MAINTENANCE AN D SERVICING
9. Remove M12 bolt and remove safecut spindle-nut
wrench (A) from left side shield plate.

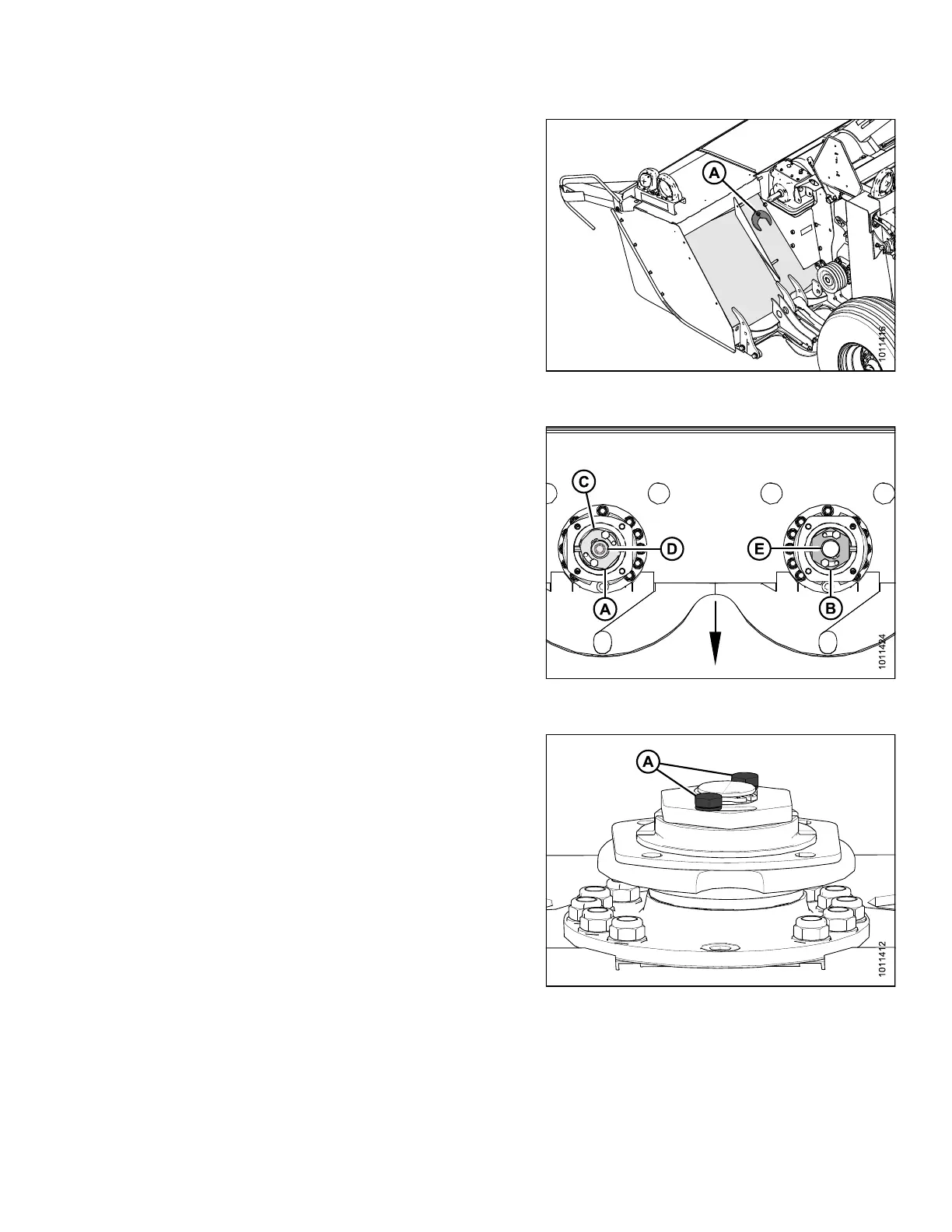

Figure 4.129: Safecut Spindle-Nut
Wrench Location
10. Identify left-hand or right-hand markings on spindle nut.
IMPORTAN T:
Distinguish between left-hand and right-hand
markings as follows:
• Left-ha
nd spindle nuts (A) have distinctive grooved
bevels (
C) on the corners—right-hand spindle nuts
(B) do no
t.
• Left-ha
nd pinion shafts (D) have distinctive grooves
on the f
ace—right-hand pinions (E) do not.
IMPORTAN T:
Turn left-han d threads counterclockwise to tighten,
and turn right-hand threads clockwise to tighten.
Figure 4.130: Left-Hand and
Right-Hand Markings
11. Remove two M10 bolts (A) and washers.
Figure 4.131: Cutterbar Spindle
147910
17
7
Revision A
