MAINTENANCE AND SERVICING
1. Raise mower conditioner fully, shut off engine, and
remove key.
2. Engage lift cylinder lock-out valves. Refer to 3.1.1
Engaging Locks, page 31.
3. Open cutterbar doors. Refer to 3.3.1 Opening
Cutterbar Doors, page 36.
4. Clean debris from work area.

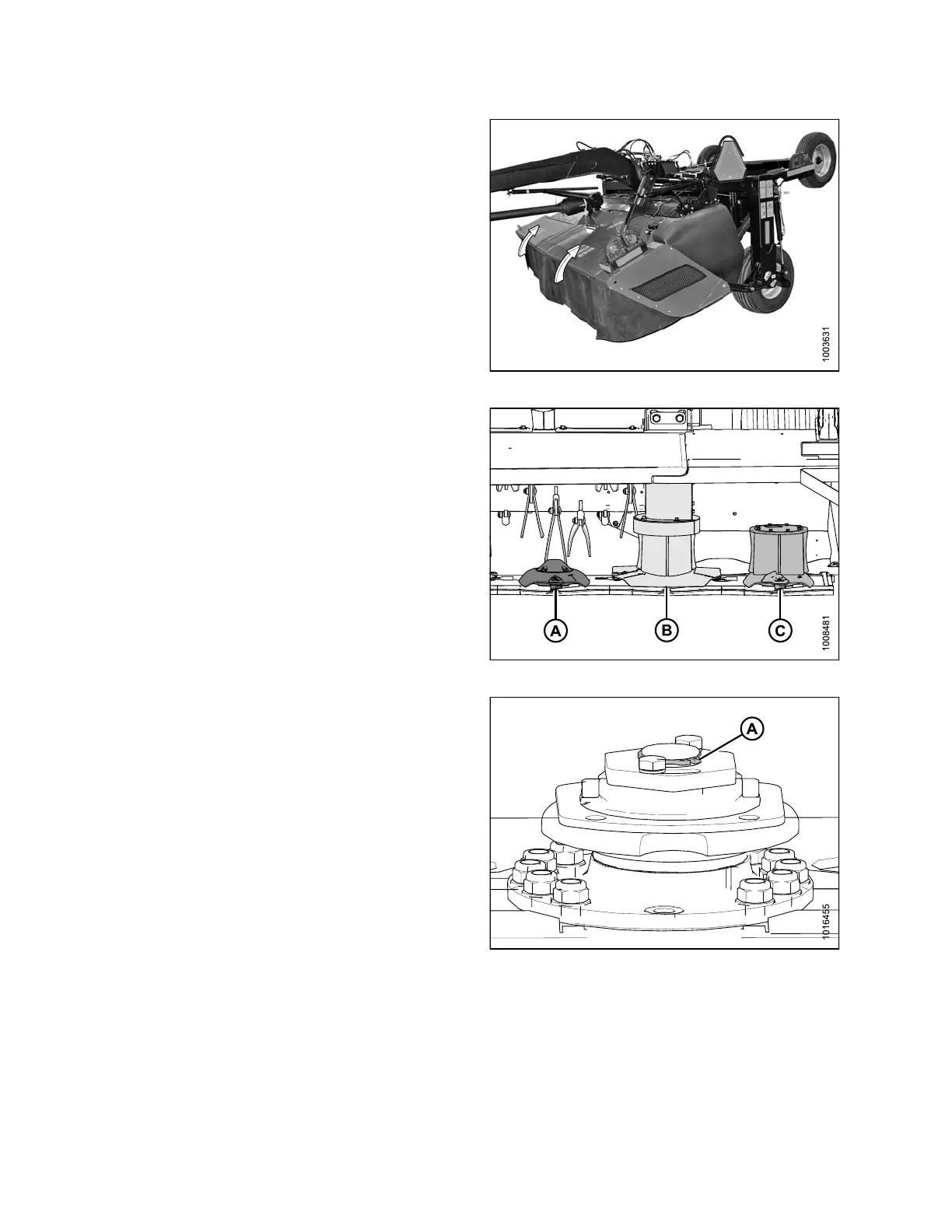

Figure 4.126: Cutterbar Doors
5. Remove cutterbar disc (A). Refer to Removing
Cutterbar Discs, page 131.
6. Remove driven rotary deflector (B). Refer to Removing
Driven Rotary Deflectors and Driveline, page 165.
7. Remove non driven rotary deflector (C). Ref er to
Removing Non-Driven Rotary Deflectors, page 172.
Figure 4.127: Cutterbar Disc Assemblies
8. Remove retainin g ring (A).
Figure 4.128: Cutterbar Spindle
147910 176 Revision A
