MAINTENANCE AND SERVICING

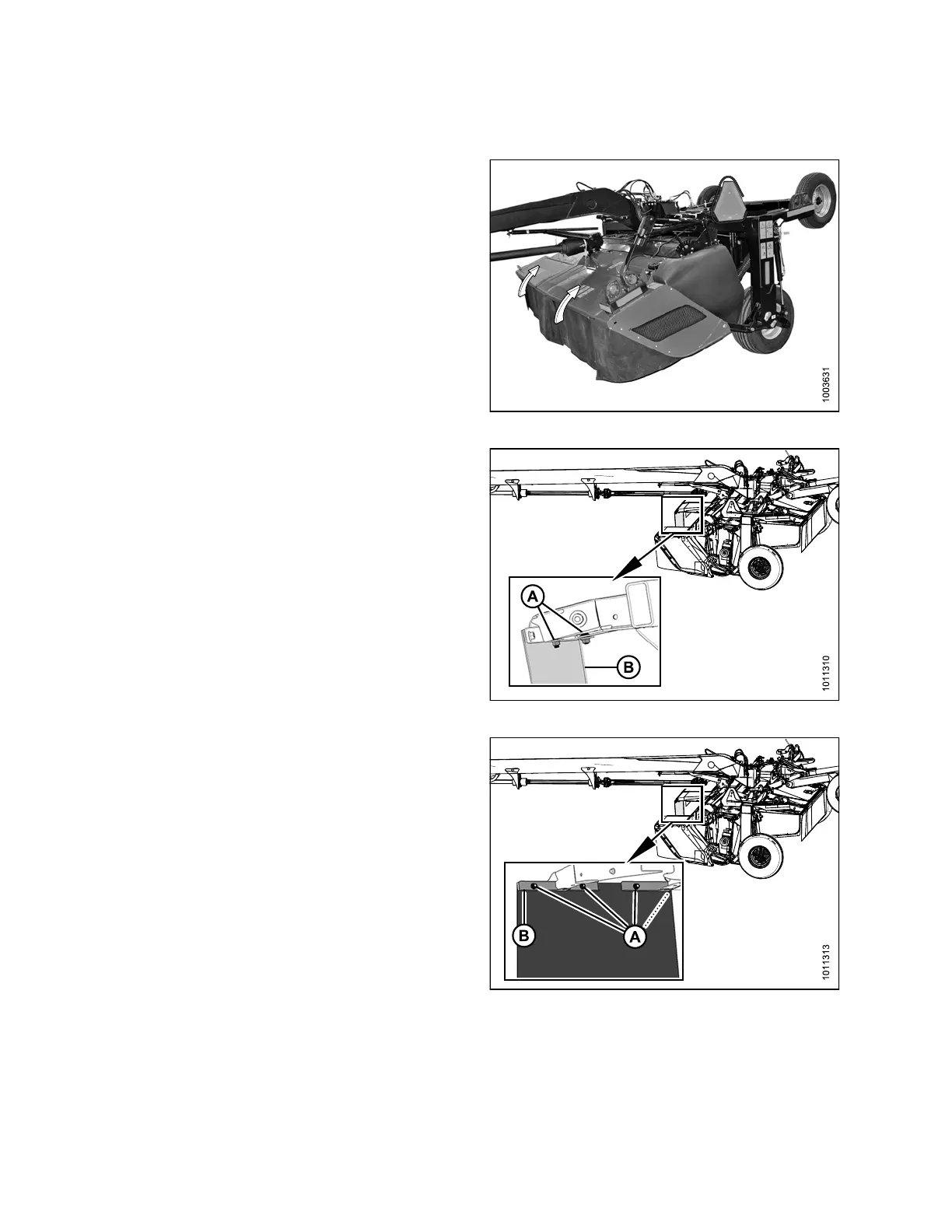

Removing Cutterbar Inboard Curtain
1. Open cutterbar doors. Refer to 3.3.1 Opening
Cutterbar Doors, page 36.
Figure 4.7
1: Cutterbar Doors
2. Remove two M10 carriage head bolts (A) and
nuts securing curtain assembly (B) to the mower
conditioner, and remove curtain assembly.
Figure
4.72: Inboard Curtain
3. Remove f ou r nuts (A) from w eld studs o n center shield,
remove two curtain brackets (B), and remove curtain.
Fig
ure 4.73: Inboard Curtain, N uts, and Brackets
147910 154 Revision A
