MAINTENANCE AN D SERVICING
3. Turn jam nut (A) counterclockwise to unlock
tension adjustment.
4. Turn jam nut (A) and adjuster nut (B) counterclockwise
to fully collapse tensione r sprin g (C) and release the
tension from conditioner drive belt (D).
5. Remove drive belt (D).

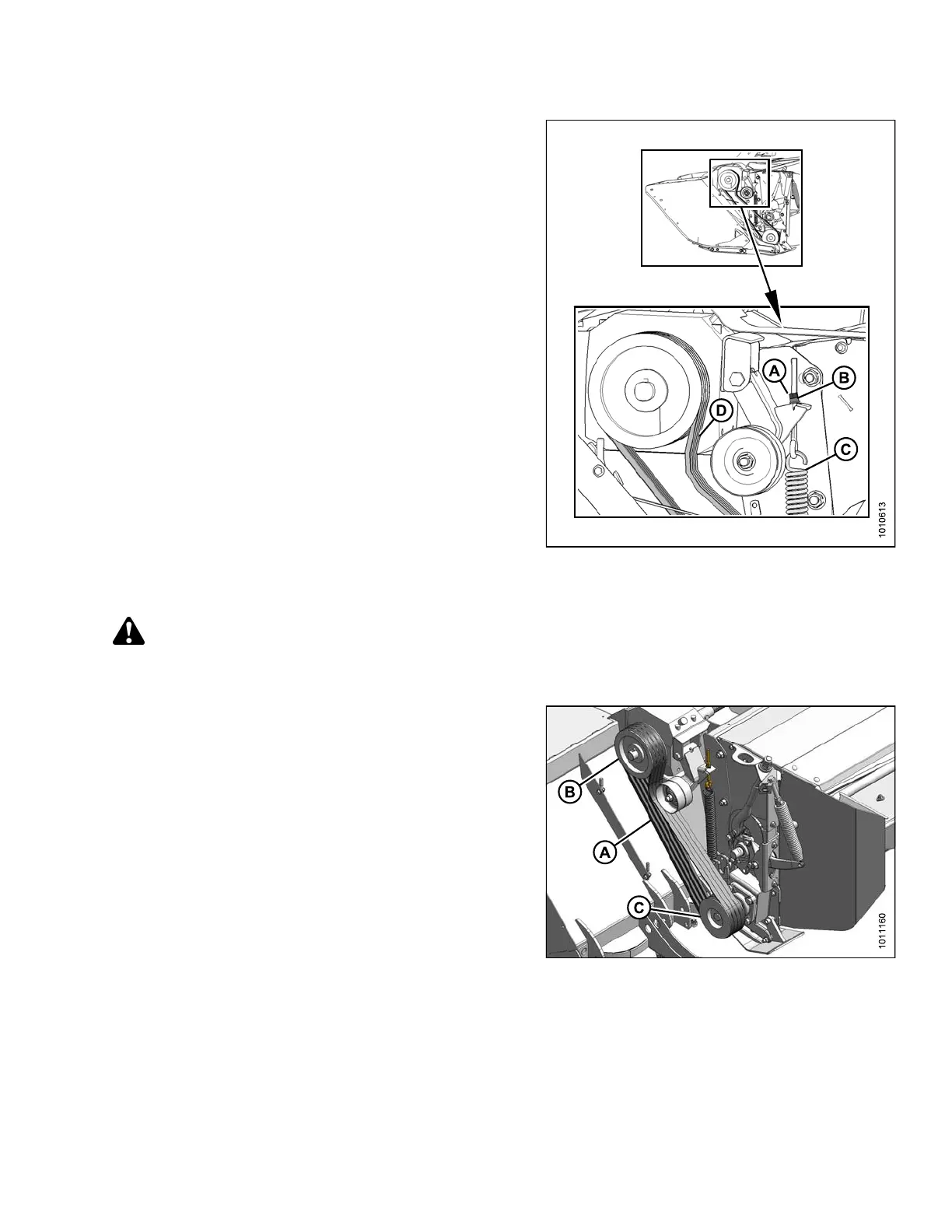

Figure 4.
201: Conditioner Drive
Instal
ling Conditioner Drive Belt
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator's seat for any reason.
1. Lower mower conditioner fully, turn off engine, and
remove key.
2. Install drive belt (A) o nto driven pulley (C) first, and
then onto drive pulley (B) ensuring that the belt is in
the pulley grooves.
NOTE:
If necessary, loosen jam nut and adjuster nut to
relieve spring tension.
Figure 4.202: Conditioner Drive
147910 207 Revision A
