3. Measure the length of tensioner spring (A), and adjust
spring length to 14-3/8 in. (366 mm) to conform with
spring tension decal (B).
NOTE:
Tensioner springs h ook into different locations on
different types of conditioners.
4. Increase spring length (tension) by turning adjuster n ut
(D) clockwise.
5. Once correct spring measurement has been achieved,
hold adjuster nut (D) and tighten jam nut (C) aga inst it.

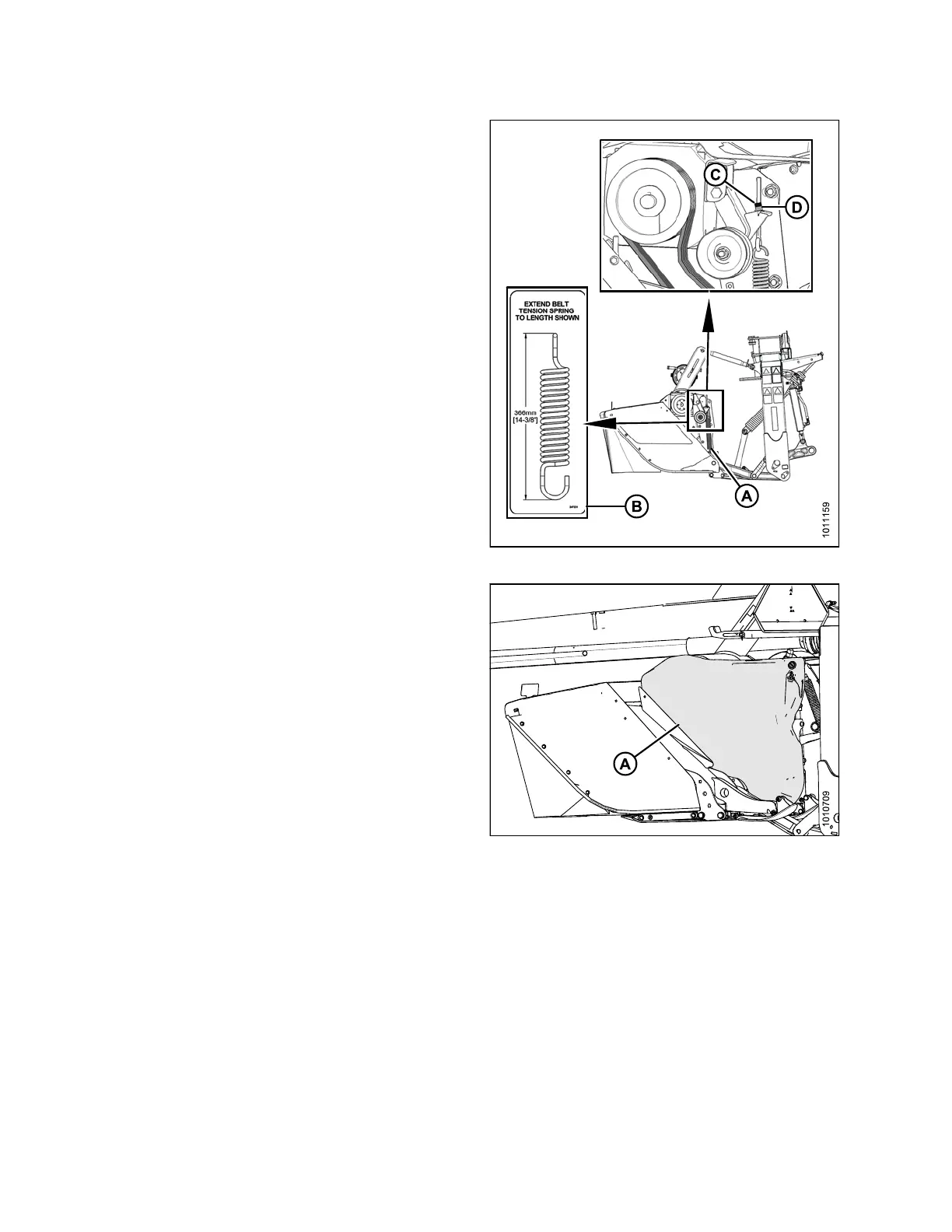

Figure 4
.203: Spring Tension Decal
6. Install left driveshield (A). Refer to 4.8.2 Installing
Driveshields, page 225.
Figur
e 4.204: Left Driveshield
147910 208 Revision A
