MAINTENANCE AN D SERVICING
4.5.10 Mower C
onditioner Drive Gearbox (T-Gearbox) (MD #224211)
The mower conditioner drive gearbox, located inside the drive compartment at the left side of the mower
conditioner, transfers power from the rear swivel gearbox to the conditioner and cutterbar.
If the gearbox requires repair, remove it and have it
serviced at your MacDon Dealer.
For service intervals, refer to 4.3.1 Maintenance
Schedule/Record, page 111.

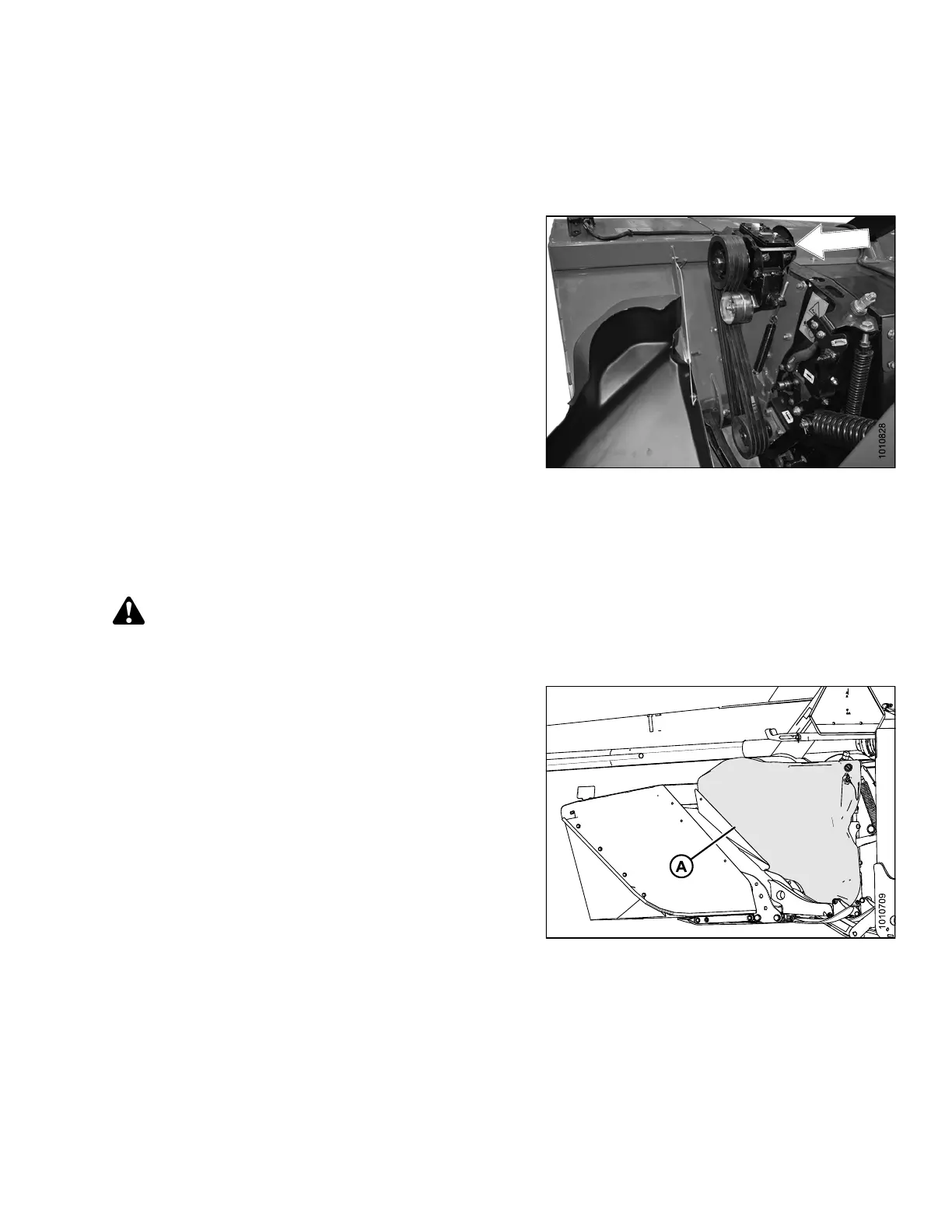

Figure 4.209: Left Side of Mower Conditioner
Checking and Adding Lubricant
The mowe
r conditioner drive gearbox is located inside the drive compartment at the left side of the
mower co
nditioner.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
1. Retract the header center-link completely.
2. Lower mower conditioner, turn off engine, and
remove key.
3. Detach the tractor from the hitch . Refer t o 3.8
Detaching Mower Condition er fro m Tract or, p ag e 51.
4. Open the left driveshield (A). Refer to 3.2.1 Opening
Driveshields, page 33.
Figure 4.210: Left Driveshield
147910
21
1
Revision A
