MAINTENANCE AND SERVICING
Checking Conditioner Gearbox Oil Level
3. Clean around o il level plug (A) on inboard sid e
of gearbox.
4. Remove oil level plug (A), and check that oil level is
even with the hole.
5. Top up oil level with SAE 85W-140 gear oil if necessary.
6. Replace oil leve l plug (A) and t igh te n .

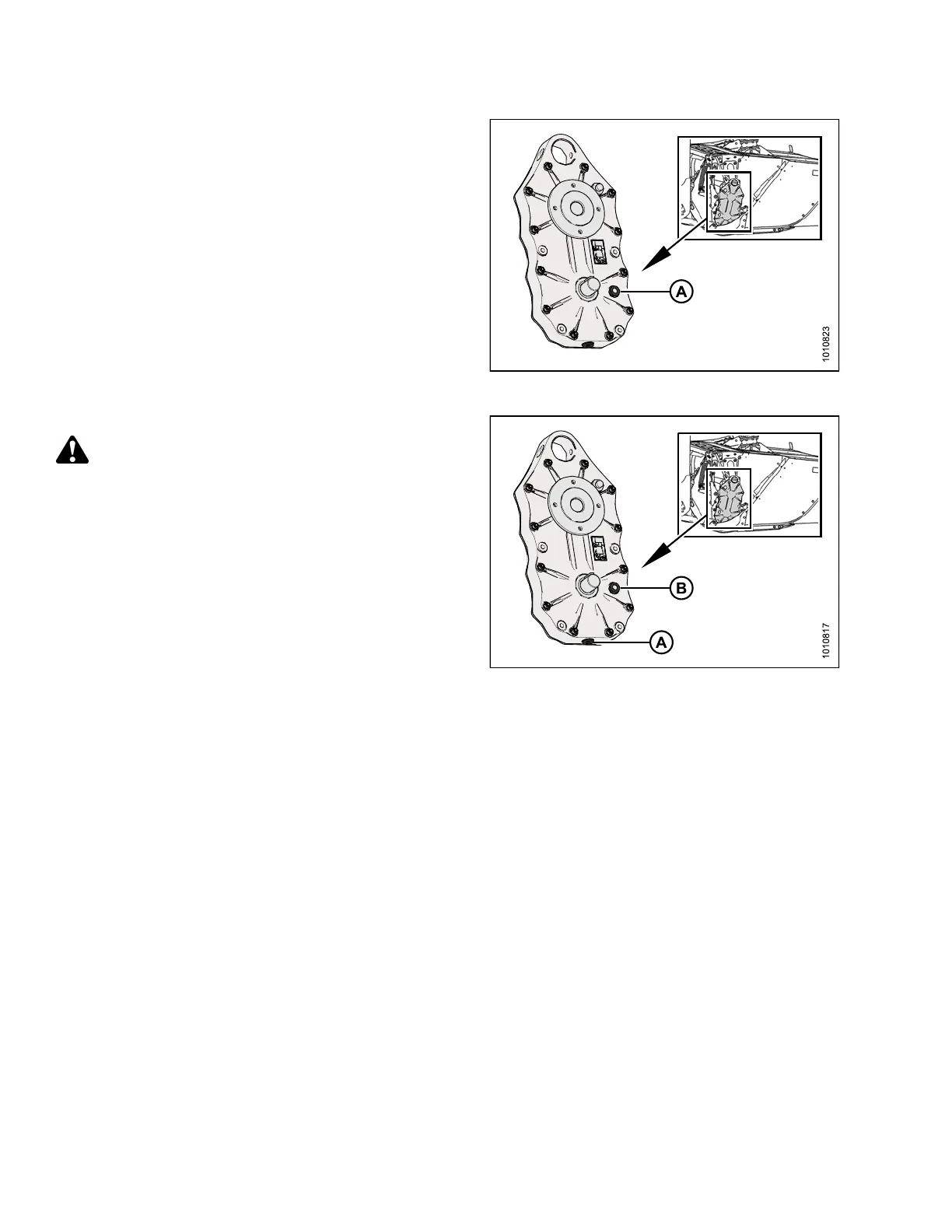

Figure 4.207: Oil Level Plug
Changing Conditioner Gearbox Oil
WARNING
To avoid bodily injury or death from unexpected
start-up or fall of raised machine: stop engine,
remove key, and engage lift cylinder lock-out valves
before going under machine.
7. Raise mower conditioner to provide sufficient access
to oil drain plug (A), shut off engine, and remove key.
8. Close the cylinder lock-out valve on each lift c ylinder
by turning the handle to the horizontal position. Refer
to 3.11.1 Lift Cylinders, page 59.
9. Clean around oil drain plug (A) on bottom of gearbox
and around oil level plug (B) on inboard side
of gearbox.
10. Place a suitably sized container underneath
conditioner gearbox.
11. Remove oil drain plug (A) using a hex key.
12. Allow sufficient time for oil to drain, replace oil dra in
plug (A), and tighten.
13. Remove oil level plug ( B) and fill with SAE 85W-140
gear oil until the oil level is even with the bore hole.
14. Replace oil level plug (B) and tighten.
15. Properly dispose of oil.
Figure
4.208: Oil Level and Drain Plug
147910 210 Revision A
