OPERATION
3. Pull top of driveshield (A) a way from mower conditioner
to open.
NOTE:
For improved acces s, lift driveshield off the pins
at th e base of the s hield, and la y the shield on
the mower conditioner.

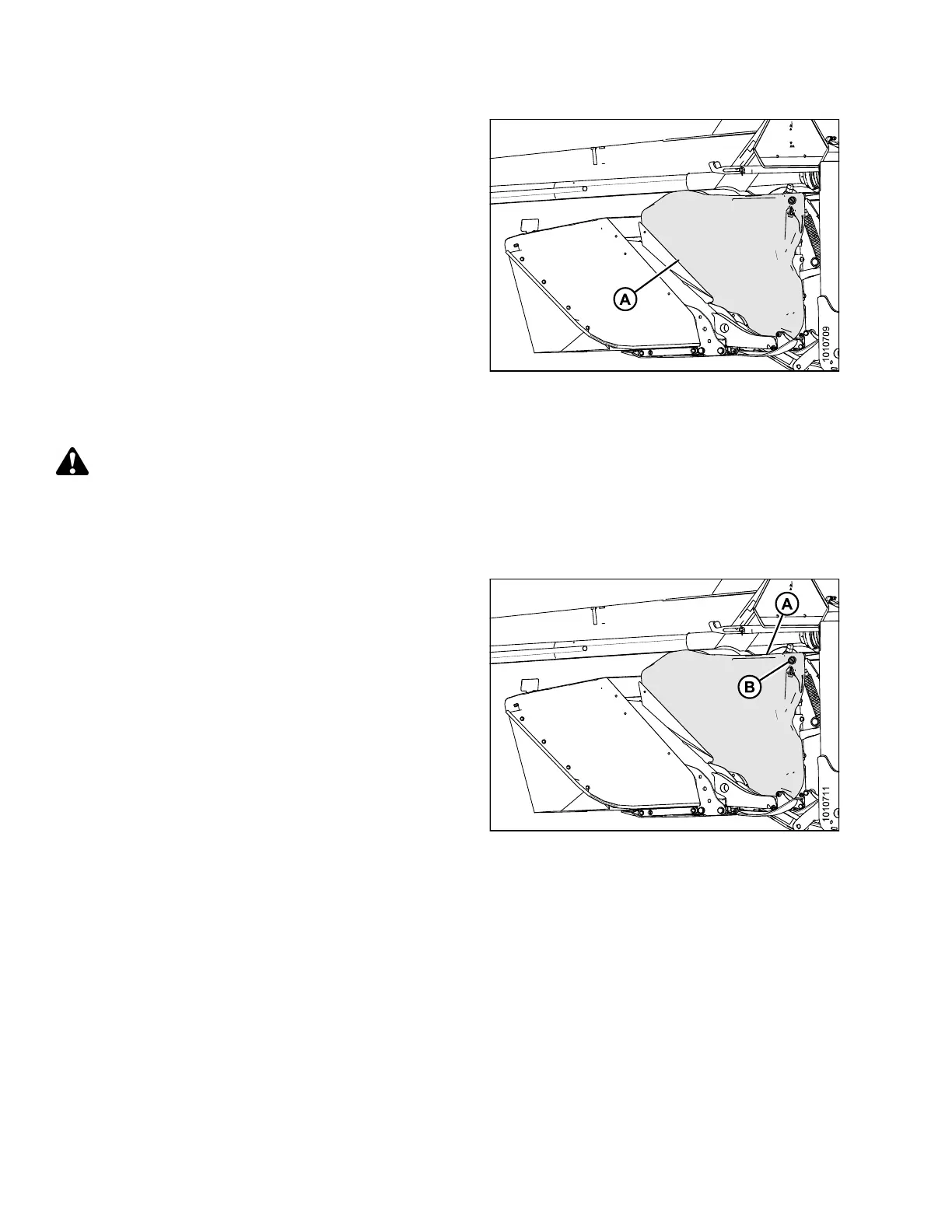

Figure 3.7: Driveshield
3.2.2 Closing Driveshields
CAUTION
Do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown are for left side driveshield—right side driveshield is similar.
1. Position driveshield onto pins at base of driveshield
(if necessary).
2. Push driveshield (A) to engage latch (B).
3. Check that driveshield is properly secure d.
Figure 3.8: Driveshield and Latch
147910 34 Revision A
