MAINTENANCE AN D SERVICING
2. Remove hex nut (A) and flat washer securing latch
to backside of driveshield, replace latch if worn or
damaged, and reinstall nut and washer.

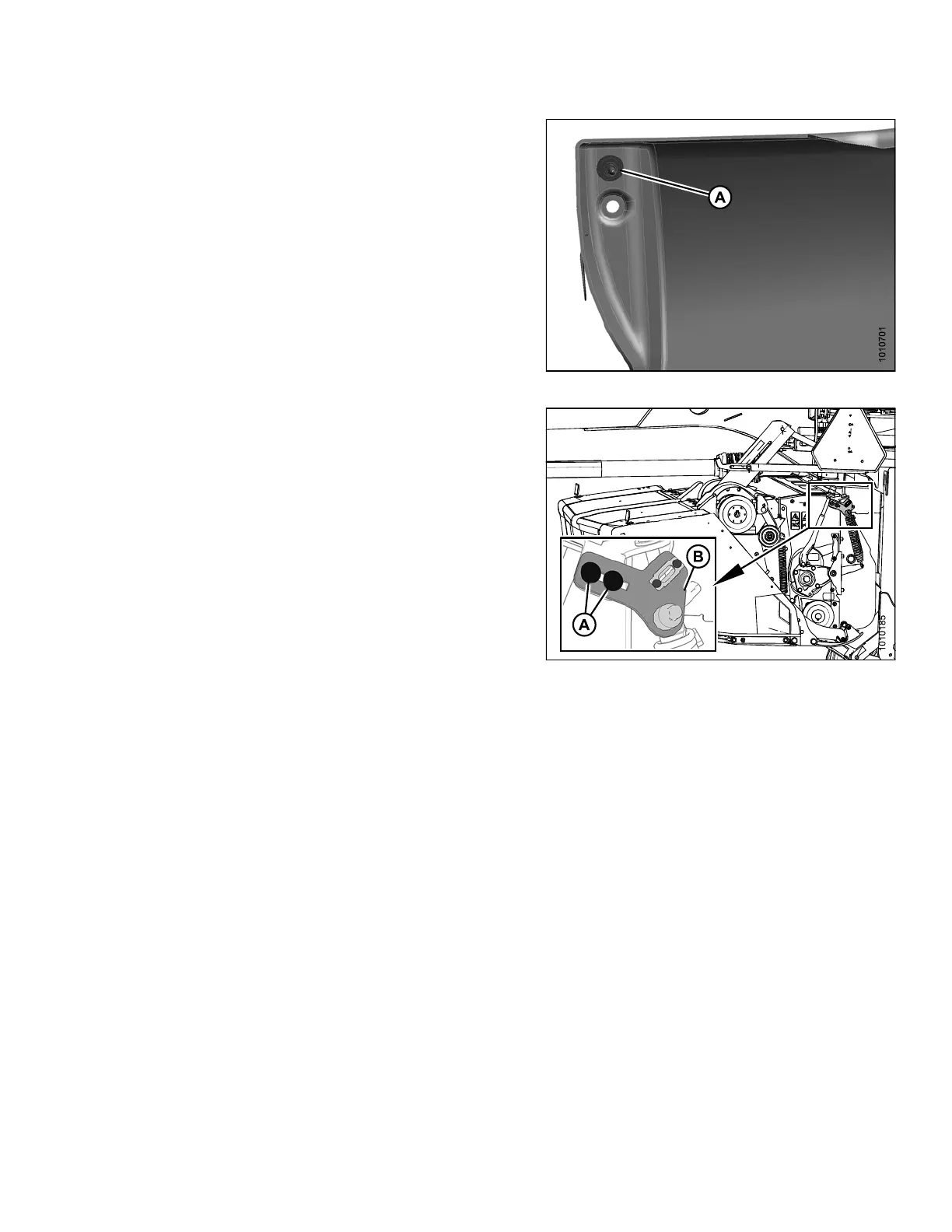

Figure 4.246: Backside of Driveshield
3. Remove two carriage bolts (A), replace stud and
clip assembly (B) if worn or damaged, and reinstall
carriage b olts.
4. Install driveshield. Refer to 4.8.2 Installing
Driveshields, page 225.
Figure 4.247: Stud and Clip Assembly
147910
22
7
Revision A
